Coilcraft Unveils the A01TKLC: A High-Performance Mini Air Core Inductor for Military and Automotive Applications.
Coilcraft Inc. is proud to announce the release of its latest innovation in RF inductors, the A01TKLC. Engineered to meet the rigorous demands of military and automotive industries, this mini air core inductor offers exceptional performance with a compact design.
The A01TKLC features an inductance of 2.5 nH (0.0025 µH), an impressively low DCR resistance of 0.0011 Ohms, and can sustain a DC current up to 4 A, making it ideal for high-efficiency applications. Its self-resonant frequency of 12,500 MHz ensures optimal performance in high-frequency environments.

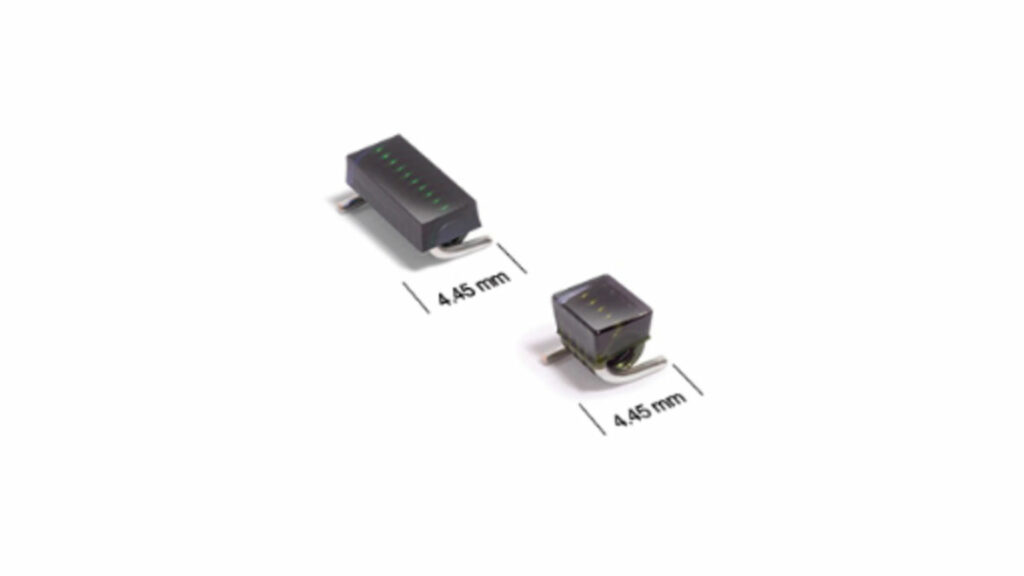

Designed for surface mount applications, the A01TKLC measures 3.94 mm in length, 4.45 mm in width, and 3.15 mm in thickness, with a lightweight build of just 31 mg. It operates efficiently across a wide temperature range of -40 to 125°C, with a storage capability up to 140°C, ensuring durability in extreme conditions.
Key Features:
- Inductance: 2.5 nH
- DC Resistance: 0.0011 Ohms
- DC Current: 4 A
- Self-Resonant Frequency: 12,500 MHz
- Quality Factor: 145
- RoHS Compliant
