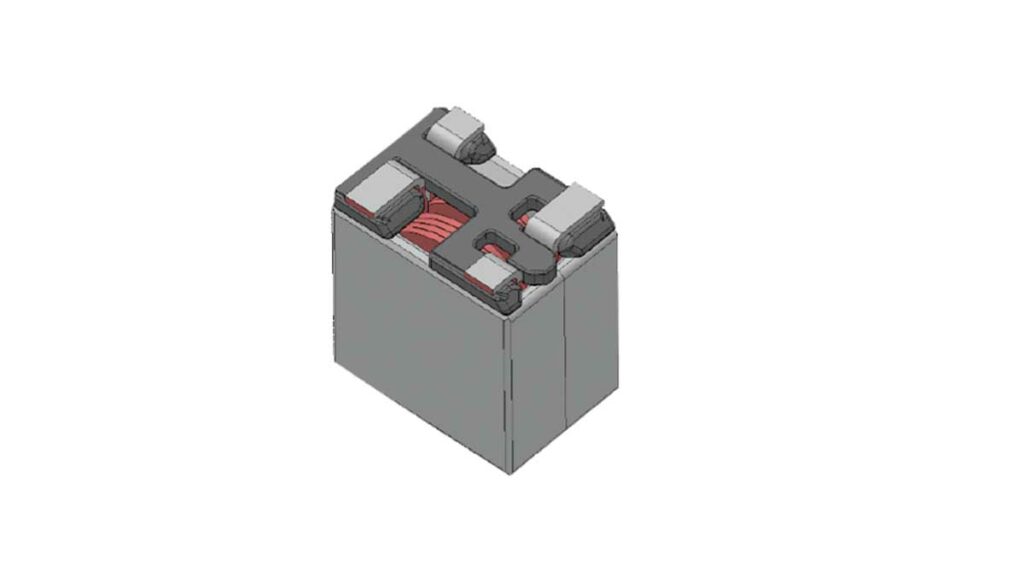

YAGEO Group continues its expansion of the catalogue common mode choke with ER19 shape core, PGC6895NLT.
Using our flat coil winding technology, vertically mounted in a planar core, PGC6895NLT offers one high current (up to 25A) CMC products in the market in surface mount packages with compact size.
This part offers inductances 225µH in the ER19 platform, which can expand the different inductance value based on customer’s requirement, having a compact size with footprint 19.8 x 13.6mm.
Common choke is used widely for the filter, PGC6895NLT would be used on the DC/DC power lines, can reduce the noise from 100khz to 500Mhz, greater than 1000 Ohms impedance and 500 V isolation between windings. It can suppress common mode noise up to 500 MHz in a compact size. Compared with toroid core solution, inductance/impedance value is easily adjustable with the gap core.
YAGEO leverages decades of magnetics design experience as well as advanced simulation, testing, and relationships with core vendors to provide leading solutions for high power density and efficiency. Our automated manufacturing strategy allows for cost effective magnetics with high reliability.
To view, compare and download datasheets for our Common Mode Chokes series, utilize our Product Finder and simply enter the attributes of interest, or view our Common Mode Chokes Overview.
Features
- ER19 shaped core
- 19.8×13.6×20.5mm max
- Up to 25Arms rated current
- Designed for DC/DC converters
- 500Vrms Electrical Isolation (80Vrms continuous)
