M12 circular connectors are a staple interface in industrial automation for carrying sensor signals, communication data and low‑voltage power in harsh environments.

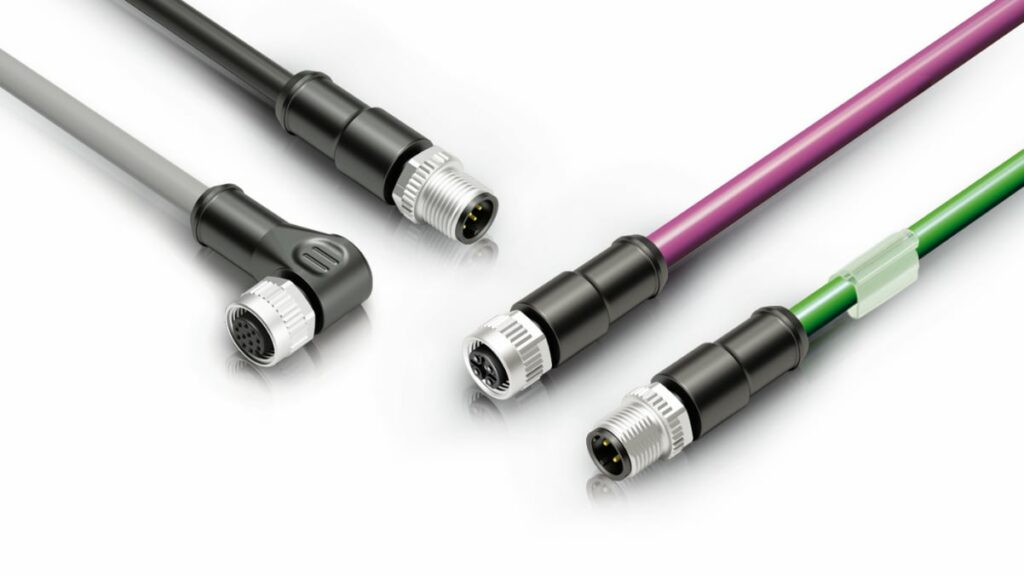

The latest design update from binder adds a tool‑tightenable coupling ring to moulded, shielded M12 versions, addressing the growing need for controlled, documented assembly in the field. For design engineers and installers, this change directly impacts process reliability, serviceability and long‑term stability of connected devices.
Key features and benefits
- Tool‑assisted tightening: New coupling rings combine traditional knurling with a hexagonal geometry, allowing the use of torque wrenches and other open‑end tools for defined tightening instead of relying solely on hand torque.
- Higher process reliability: Defined torque during installation helps ensure consistent contact pressure and sealing conditions across multiple connectors and installation teams.
- Support for traceable assembly processes: The possibility of specifying tightening tools and torque values in work instructions supports quality management systems and documented field assembly procedures.
- Improved handling in the field: Knurling continues to support fast manual pre‑tightening, while the hexagon provides a positive tool interface for final torque application even in confined spaces.
- Harmonised portfolio: The same knurling‑plus‑hexagon concept already used on unshielded M12 variants is now extended to moulded, shielded types, simplifying training, tooling and visual inspection across a mixed connector population.
- Enhanced mechanical robustness in operation: Controlled tightening reduces the risk of under‑tightened rings loosening under vibration or over‑tightened rings damaging threads or sealing elements over time.
Typical applications
In many industrial environments, M12 connectors are treated as commodity components, yet their correct assembly is critical for system uptime. The updated binder design is particularly relevant wherever repeatable, spec‑compliant installation is required.
Typical use cases include:
- Automation technology – sensors and actuators: Connection of proximity sensors, encoders, IO‑modules and valve terminals on machinery, often subject to vibration and regular maintenance interventions.
- Mechanical engineering and plant construction: Distributed I/O, local control modules and safety devices in production lines where assembly is performed by multiple teams and must follow standardised work instructions.
- Robotics and handling systems: Dynamic cable routing and frequent motion require connectors that remain secure under defined mechanical load and vibration.
- Test and measurement equipment: Modular test setups and fixtures that need repeatable reconnection without compromising shielding integrity and contact resistance over many mating cycles.
- Harsh industrial environments: Installations where connectors must be tightened under defined mechanical conditions to maintain environmental protection and EMC performance over long service life.
Technical highlights
The press release focuses on the mechanical geometry of the coupling ring rather than electrical parameters, but several technical aspects are important from a design‑in perspective.
Coupling ring geometry
- Combined knurling and hexagon: The external surface of the coupling ring now features a mixed profile – a knurled section for grip and a hexagonal section for wrench engagement.
- Compatibility with torque tools: The hexagon is intended for tools such as torque wrenches, enabling the specification of installation torque according to manufacturer datasheet and internal plant standards.
- Continuity with existing designs: The concept is aligned with existing unshielded M12 versions in the binder portfolio, so users see a uniform mechanical interface across shielded and unshielded assemblies.
Shielded moulded M12 execution
- Moulded, shielded construction: The update applies to overmoulded, shielded M12 cables, which are widely used where EMC performance and strain relief are critical and field‑terminable connectors are not desired.
- Targeted for defined torque applications: The design is explicitly aimed at installations where tightening torque is a parameter of the specification, for example in high‑vibration environments or where sealing performance must be validated.
- Electrical and environmental data: Detailed ratings (voltage, current, IP class, shielding performance and temperature range) remain as specified in the corresponding binder datasheets for the individual M12 product families and should be consulted during selection.
Portfolio consistency
A key theme of the update is portfolio harmonisation. For engineers and purchasing teams this has practical implications.
| Aspect | Previous situation | New situation with updated rings |
|---|---|---|
| Shielded moulded M12 | Knurled ring, primarily hand‑tightened | Knurling plus hexagon, tool‑tightenable |
| Unshielded M12 versions | Knurling plus hexagon already available | Same concept maintained |
| Visual identification | Different geometries across some variants | More uniform appearance across families |
| Installation tools | Mainly manual tightening, limited tool use | Standard spanners/torque wrenches usable |
This uniformity simplifies internal standards for connector selection, assembly tooling and operator training, especially in organisations rolling out common connector policies across multiple plants.
Design‑in notes for engineers
From a design and operations standpoint, the change in coupling ring geometry is a small mechanical detail that can have measurable impact on assembly quality and lifetime performance.
- Define installation torque: Where possible, specify a torque range for M12 coupling rings in installation instructions, aligned with binder recommendations. This helps avoid both under‑ and over‑tightening.
- Update work instructions and checklists: If your plant already uses torque‑controlled assembly for other connector systems, consider adding the updated M12 connectors to these standard procedures so operators use the same style of tools.
- Consider vibration and movement: In applications with high vibration or frequent machine motion, torque‑controlled tightening of M12 connectors can reduce loosening events and maintenance interventions compared to purely hand‑tightened rings.
- Leverage portfolio consistency: Standardising on the updated binder M12 connectors across shielded and unshielded lines simplifies spare parts management and reduces training complexity for installation crews.
- Support traceability and audits: In quality‑sensitive sectors, the ability to specify tools and torque in procedures supports audit trails and process capability analyses for electrical termination steps.
- Coordinate with EMC and IP requirements: For systems requiring defined shielding and ingress protection levels, treat connector tightening torque as a parameter in system qualification and verify it against the latest binder datasheet recommendations.
Source
This article is based on information provided in the official binder press release about the optimised assembly concept for M12 connectors and related documentation available on the binder website, interpreted and commented from an independent engineering perspective.
