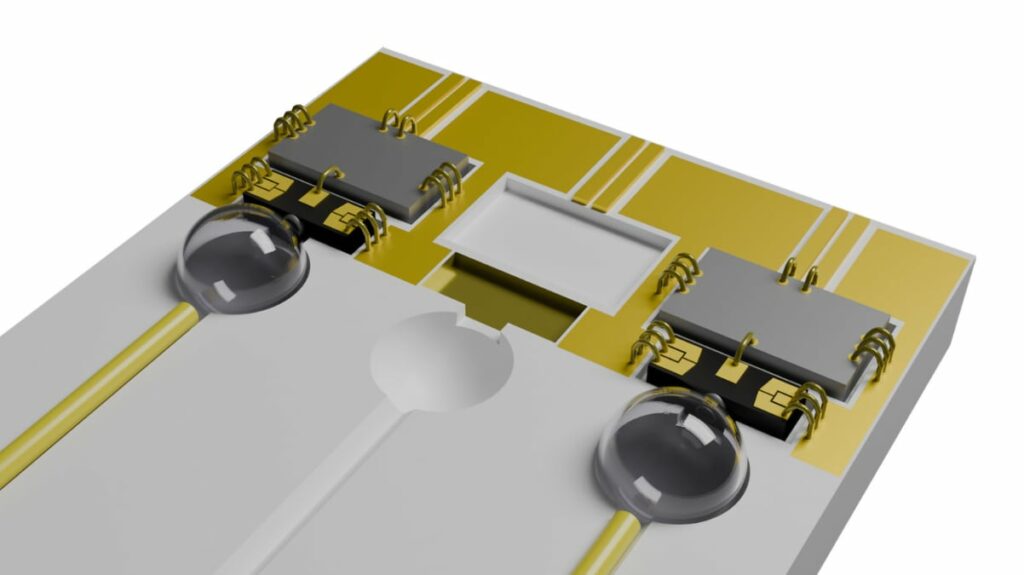

Vishay has introduced a thin film submount platform aimed at high speed optical transceivers, RF modules, and advanced electronic packaging where thermal management, alignment accuracy, and high frequency signal integrity are critical.
The new Vishay platform combines precision thin film passive structures with advanced ceramic substrates such as aluminum nitride to help engineers handle higher power densities and tighter packaging constraints in next‑generation systems.
Introduction
Thin film submounts sit between active devices (for example laser diodes or RF ICs) and the main module or board, providing a mechanically stable, thermally efficient, and electrically optimized interface. Vishay’s new platform extends this concept by combining high thermal conductivity ceramics, precision thin film metallization, and customized machining to support demanding photonics and RF designs in data communications, defense, space, and high reliability industrial markets. According to Vishay, the platform is intended to ease design‑in for both quick‑turn prototyping and volume production.
Key features and benefits
Platform characteristics
- High thermal conductivity aluminum nitride substrates for efficient heat spreading from high power die into the module structure.
- Thin film metallization with low loss interconnects to support microwave and millimeter‑wave signal paths.
- Precision machining of ceramic submounts for tight dimensional control and repeatable mechanical interfaces.
- Support for integrated passive circuit elements (for example resistors or other thin film features) as part of the submount design.
Manufacturing and logistics
- Quick‑turn prototyping capabilities combined with high volume production, allowing migration from early samples to series production on the same platform.
- Production supported from three manufacturing locations, improving supply resilience and logistics planning for global programs.
- Pre‑deposited AuSn or EPIG finishes available to streamline assembly flows and reduce the number of process steps at the customer side.
Benefits for system design
- Improved thermal management at the device level, helping to keep junction temperatures under control in high power optical and RF components.
- Enhanced high frequency performance thanks to low loss thin film interconnects and well‑controlled geometries that reduce parasitics.
- Better precision alignment of optical elements or RF structures due to tight mechanical tolerances and custom machined features.
- Reduced manufacturing complexity in final modules because critical interfaces and finishes are already engineered into the submount.
Typical applications
Vishay positions the thin film submount platform primarily for high speed data communications and other high performance modules that must balance power density, signal integrity, and mechanical robustness. Typical application areas include:
- 800G, 1.6T, and 3.2T optical transceivers, where laser diodes and driver ICs must be cooled efficiently while maintaining precise optical alignment.
- RF and microwave modules that require low loss transitions and controlled impedance routing at the package level.
- Millimeter‑wave assemblies for high frequency communications and radar, where thin film structures help manage parasitics and line geometry.
- Laser diode mounting in industrial, medical, and defense systems, where reliable thermal paths and stable mechanical support are critical.
- Optical alignment structures in photonics modules, combining mechanical reference features with metallized pads for interconnect.
- Hermetic packaging solutions and modules that combine wire bonding and SMT processes on a single submount.
Technical highlights
The press release focuses on the submount platform rather than listing fixed part numbers, emphasizing customization around a common thin film and ceramic technology stack. Key technical aspects include:
- Use of advanced ceramic substrates such as aluminum nitride, selected for high thermal conductivity and good dimensional stability.
- Precision deposition of passive circuit elements in thin film technology, enabling integrated resistive networks or controlled impedance features directly on the submount.
- Thin film interconnects engineered for low loss performance at microwave and millimeter‑wave frequencies.
- Custom geometries and metallization schemes to match specific die layouts, optical paths, or RF transitions.
- Compatibility with pre‑deposited AuSn solder or EPIG metallization stacks to support different assembly and bonding strategies.
For specific thermal performance figures (for example thermal conductivity values, maximum power dissipation) and electrical parameters, designers should refer to the relevant manufacturer datasheets and application notes for the selected submount configuration according to the manufacturer datasheet.
Platform capabilities overview
| Aspect | Description |
|---|---|
| Substrate type | Advanced ceramics, including aluminum nitride for high thermal performance |
| Interconnect technology | Thin film metallization optimized for high frequency and low loss |
| Integrated functions | Passive circuit elements and custom routing on the submount |
| Surface finishes | Options such as pre‑deposited AuSn or EPIG for streamlined assembly |
| Mechanical customization | Precision machining for tailored geometries and alignment features |
Design flow snapshot
| Step | Role of the submount platform |
|---|---|
| Requirement definition | Capture power, frequency, alignment, and assembly constraints |
| Co‑design with Vishay | Translate requirements into geometry, metallization, and finishes |
| Prototyping | Quick‑turn sample builds verify electrical, thermal, and mechanical targets |
| Qualification | Testing under application‑specific environmental conditions |
| Ramp to production | Transition to high volume at global manufacturing sites |
Design‑in notes for engineers
Thermal management
- Start from junction‑to‑case thermal targets for critical dies and allocate part of the thermal budget to the submount; aluminum nitride and optimized metallization can significantly lower thermal resistance compared to standard alumina structures.
- Consider the entire thermal path from die attach through submount into the module baseplate or PCB, including solder or TIM layers, when specifying thicknesses and materials.
High frequency layout
- For RF and millimeter‑wave designs, collaborate early on line impedance, transition geometry, and pad dimensions so that the thin film interconnect layout matches the surrounding PCB and package structures.
- Use the submount to integrate short controlled impedance runs and critical transitions, reducing parasitics and improving repeatability versus discrete bond wire only solutions.
Opto‑mechanical alignment
- When designing optical transceivers or laser modules, treat the submount as a key mechanical reference surface; precision machining allows slots, steps, or fiducials that define lens or fiber positions.
- Specify tolerance requirements for coplanarity, thickness, and feature position to ensure that automated assembly and alignment processes can hit the required optical budgets.
Assembly and metallization choices
- Select between AuSn solderable surfaces or EPIG finishes based on planned assembly processes (eutectic attach, solder reflow, wire bonding, flip‑chip, or SMT).
- When combining wire bond and SMT on a single submount, define keep‑out regions, bond pad finishes, and solderable areas clearly to avoid process conflicts.
Reliability and qualification
- For defense, space, and other high reliability applications, align submount material choices and finishes with the applicable standards and test regimes (temperature cycling, humidity, vibration, outgassing).
- Validate that CTE (coefficient of thermal expansion) compatibility between die, submount, and carrier structure is sufficient to prevent stress‑related failures over lifetime.
Source
This article is based on information provided in a Vishay Intertechnology press release announcing the Specialty Thin Film thin film submount platform, complemented by related information from Vishay’s specialty thin film capability pages and landing pages.
