Bourns has expanded its modular contacts portfolio with new five, six and eight amp versions addressing higher power delivery requirements in compact systems.
The new parts target designers who need scalable, board-level power interconnects for charging, energy transfer and multiple subsystems while maintaining reliability over many mating cycles.
Key features and benefits

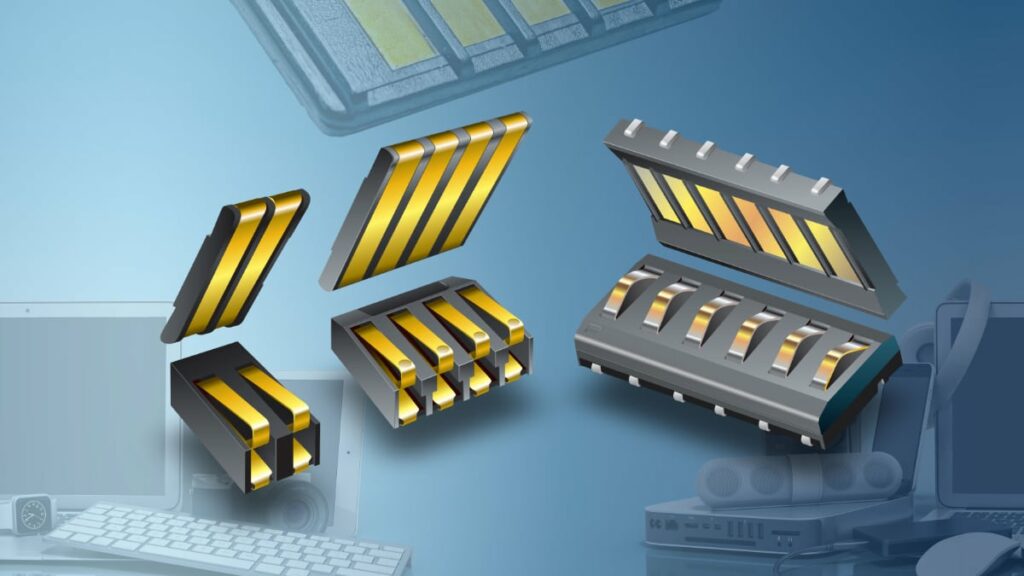

The new Bourns modular contacts are offered as models 75ABF, 75ABM, 76AAF, 76AAM, 78ADF and 78ADM. They are designed as stackable, board-mounted contacts that can be combined to meet different current and subsystem needs according to the manufacturer datasheets.
Key characteristics include:
- Rated for 5 A, 6 A and 8 A per contact, depending on series, to support higher power delivery in compact interconnect points
- Mechanical design tested for 50,000-cycle operation, supporting long service life in systems with frequent plugging and unplugging
- Stackable side-by-side arrangement, allowing designers to build multi-contact, modular power interfaces and to scale current capability by adding parallel paths where appropriate
- Power-dense form factor that can help reduce connector area on the PCB while maintaining current handling and thermal performance according to the manufacturer
- RoHS-compliant construction and halogen-free status under Bourns’ internal halogen-free criteria, supporting environmental and regulatory requirements
For many applications, the combination of higher current rating and high mating-cycle capability makes these contacts suitable where classic board-to-board or wired connectors might be oversized or less flexible from a layout perspective.
Typical applications
Bourns positions these modular contacts for demanding power-related tasks where efficient energy transfer over short distances on or near the PCB is important.
Typical use cases include:
- Battery charging interfaces inside equipment, where higher current capability allows faster charging with controlled temperature rise
- Local power distribution between boards or modules, for example from a main power board to functional daughtercards in industrial or communications systems
- Parallel loads and multiple subsystems, where individual contacts can feed separate modules while sharing a common mechanical structure
- Short-distance power links where minimizing voltage drop and resistive losses is critical for system efficiency
- Modular platforms that may require field upgrades or reconfiguration, benefitting from high mating-cycle capability
In many of these scenarios, the ability to stack contacts side-by-side enables designers to tailor the number of power channels and current capability without redesigning the basic contact footprint.
Technical highlights
While exact mechanical dimensions, plating systems and detailed electrical characteristics are defined in the individual datasheets for each series, several technical aspects are relevant for design-in:
- Current ratings: Nominal 5 A, 6 A and 8 A per contact type, specified under defined test conditions in the respective datasheets
- Contact life: Tested to 50,000 mating cycles, which is significantly higher than many standard board connectors and supports frequent connect/disconnect scenarios
- Power density: Geometry optimized for high current in a compact contact, reducing the connector footprint for a given power budget
- Compliance: RoHS-compliant, and classified as halogen free under Bourns’ internal definition (limits on Br and Cl content and total halogens)
- Product families:
- 75ABF and 75ABM modular contacts
- 76AAF and 76AAM modular contacts
- 78ADF and 78ADM modular contacts
For precise design calculations such as temperature rise, contact resistance and derating versus ambient temperature, engineers should refer to the manufacturer datasheets for each series and current rating.
Design-in notes for engineers
When designing these modular contacts into power-dense systems, engineers should consider:
- Current and thermal margins: Select the appropriate 5 A, 6 A or 8 A contact type and apply suitable derating based on ambient temperature, airflow and copper area on the PCB, using curves and limits from the manufacturer datasheets.
- Stacking and layout: Since contacts can be stacked side-by-side, layout planning should allow sufficient spacing for creepage/clearance and for any expected voltage difference between adjacent contacts.
- Mechanical life: The 50,000-cycle test capability makes these parts attractive for connectors that will be frequently mated, but mechanical guidance, keying and strain relief for attached cables or modules should still be part of the overall design.
- Voltage drop and efficiency: For high-current paths over short distances, contact resistance and conductor cross-section are important to minimize voltage drop; designers should use the specified contact resistance and evaluate P=I2⋅RP = I^{2} \cdot RP=I2⋅R losses as part of worst-case analysis.
- System modularity: The modular contact concept fits well in systems that may later require additional power channels or subsystem expansions; leaving reserved PCB positions for additional contacts can simplify future upgrades.
From a purchasing perspective, grouping on a single platform (75, 76 and 78 families) can simplify sourcing and allow alignment of contact style across multiple projects, while still offering different current ratings and configurations for individual designs.
Source
This article is based on information provided in the official Bourns press release announcing the expansion of its modular contacts portfolio, complemented by general engineering context for power interconnect design.
