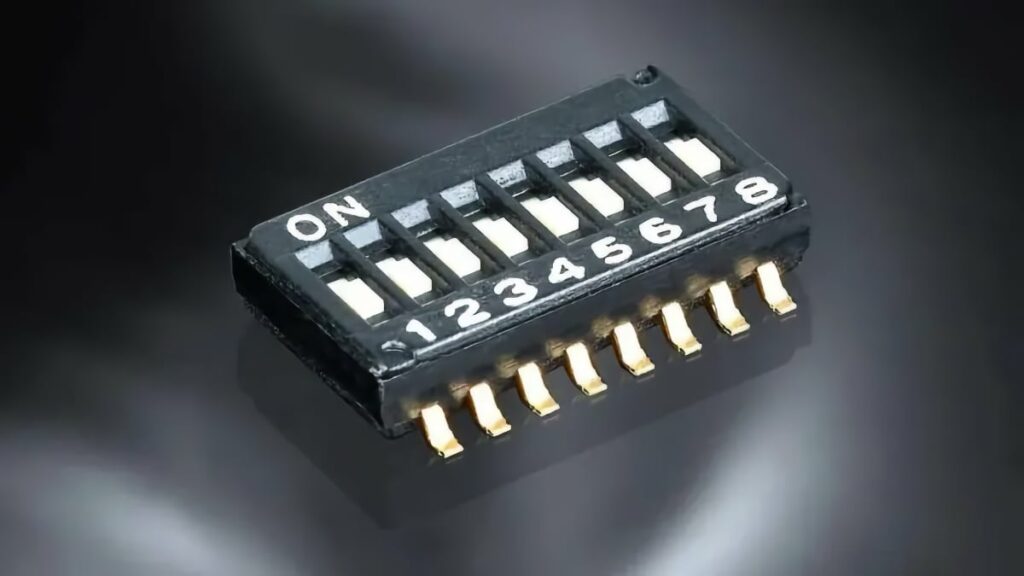

SCHURTER introduces DTCD and DTCJ series ultra‑miniature 1.27 mm pitch SMT DIP switches designed for high‑density electronic assemblies where classic 2.54 mm packages are difficult to fit.
They combine a very low profile with automated SMT compatibility, making them suitable for compact industrial, communication, and embedded systems that still require hardware configuration.
Compared to conventional DIP switches, these parts can reduce the required PCB area by up to 46% while maintaining typical logic‑level voltage and current ratings. This allows engineers to keep manual configuration points on the board without sacrificing valuable layout area for other functions.
Key features and benefits
The SCHURTER DTCD and DTCJ series address the typical constraints of modern compact PCBs: limited board space, strict height limits, and full SMT assembly flows.
Key construction features include:
- 1.27 mm switch pitch for high packing density on the PCB.
- Ultra‑low profile height of approximately 2.2 mm, suitable for stacked boards and enclosures with tight z‑axis clearance.
- Available as:
- DTCD: Gullwing terminal version for standard SMT pads and easy visual inspection.
- DTCJ: J‑bend terminal version for compact footprints and robust solder joints.
- Designed for automated SMT assembly (pick‑and‑place, reflow), avoiding manual through‑hole insertion.
From an application perspective, the main benefits are:
- Significant PCB space savings (up to roughly 46% versus 2.54 mm pitch DIP switches), allowing more functions or wider clearance around critical traces.
- No additional assembly process step; the switches go through the same SMT flow as other components.
- Hardware configuration remains easily accessible to technicians and field engineers, with clearly defined on/off states.
- Mechanical endurance of up to about 1000 actuations, sufficient for typical configuration and service operations over product lifetime.
For purchasing and logistics, using a single ultra‑miniature DIP switch platform across multiple designs can simplify BOMs by standardizing on one 1.27 mm family with two terminal variants.
Typical applications
The DTCD and DTCJ series are intended as address and configuration switches in a wide range of equipment where small form factor and SMT assembly are mandatory.
Typical examples include:
- Industrial control and automation:
- Node addressing and mode selection in I/O modules, PLC expansion cards, and compact controllers.
- Configuration of fieldbus or industrial Ethernet interface modules.
- Communication and networking:
- Address setting for RS485/Modbus, CAN nodes, or proprietary serial links.
- Configuration of interface cards or backplane‑connected modules.
- Computing and embedded systems:
- BIOS/CMOS configuration or recovery settings on server and storage boards.
- Boot‑mode or feature selection in embedded controllers and SBCs.
- Medical and consumer devices:
- Service modes or regional configuration in medical instruments.
- Mode or feature selection in high‑end consumer or prosumer appliances.
In practice, these switches are typically used on low‑speed digital lines like address, chip‑select, enable, or mode pins, where a stable manual logic level is required without software access.
Technical highlights
From a technical standpoint, DTCD and DTCJ provide a familiar electrical behavior in a much smaller SMT package:
- Pitch: 1.27 mm between switch positions.
- Height: low profile around 2.2 mm.
- Contact characteristics:
- Initial contact resistance typically ≤ 100 mΩ.
- Electrical ratings:
- Suitable for logic‑level signals, with maximum current and voltage according to manufacturer datasheet (for example, up to around 100 mA at 50 V).
- Mechanical endurance:
- Up to approximately 1000 operating cycles.
- Temperature range:
- Operation from about −40 °C to +85 °C.
The low contact resistance and defined rating are important for avoiding voltage drops and unstable logic levels on configuration pins, especially when multiple signals share reference lines or pull‑up networks. The specified temperature range covers most industrial and commercial use cases, including equipment deployed in control cabinets and indoor environments.
Gullwing versus J‑bend terminals allow layout engineers to optimize solder pad design, inspection strategy, and mechanical robustness according to their assembly process and reliability targets.
Design‑in notes for engineers
When designing in the DTCD or DTCJ 1.27 mm DIP switches, a few practical aspects help ensure a robust implementation:
- PCB footprint and land pattern:
- Use the recommended pad layout from the SCHURTER datasheets for the chosen terminal style.
- Pay attention to solder mask openings and paste stencil design to avoid tombstoning or insufficient solder fillets on the small terminals.
- Placement and reflow:
- Place the switches away from very tall components that could shadow heat flow during reflow.
- Verify that the chosen reflow profile respects the maximum temperature profile specified by SCHURTER.
- Mechanical access:
- Ensure that the actuator area remains accessible after assembly, including any housings, shields, or neighboring connectors.
- Consider using silk‑screen markings to indicate switch position and on/off orientation for service personnel.
- Signal integrity and EMC:
- Route configuration lines as low‑speed signals with appropriate pull‑ups or pull‑downs close to the IC inputs.
- If configuration lines are long or exposed, adding simple RC filtering or series resistors can improve immunity to ESD and transients.
- Reliability considerations:
- Use the DIP switches primarily for configuration that is set at installation or service time, not as frequently toggled user controls.
- If operation in harsh environments (shock, vibration, strong contamination) is expected, review the application profile against the mechanical and environmental specifications of the datasheet.
By standardizing on this 1.27 mm family, engineers can keep a consistent configuration concept across product generations while freeing valuable PCB area for new functions, extra I/O channels, or improved creepage and clearance around high‑voltage sections.
Source
This article is based on information from SCHURTER’s official press release and product documentation for the DTCD and DTCJ 1.27 mm pitch SMT DIP switches, complemented with general application guidance for board‑level configuration switches.
