GDT Gas Discharge Tubes: Surge Protection Fundamentals, Selection, and Design‑in Tips

This article summarizes how GDT (Gas Discharge Tube) work, how they differ from other surge protectors, and what design engineers should watch when specifying them into new designs.

Gas discharge tubes are crowbar‑type surge over-voltage protection components that use a controlled gas discharge to divert high‑energy transient currents away from sensitive circuitry. They offer very high surge capability, low leakage, and extremely low capacitance, making them a key building block in telecom, industrial, and AC power surge protection.

What a GDT gas discharge tube is and why it matters

A gas discharge tube is a hermetically sealed ceramic component filled with inert gas and equipped with two or three electrodes. Under normal conditions it behaves like a very high‑impedance insulator with giga‑ohm leakage and picofarad‑level capacitance. When the voltage across its terminals exceeds a defined breakdown level, the gas ionizes and the device switches into a low‑impedance plasma arc state, shunting surge current safely to ground or between lines according to the chosen topology.

GDT Symbols

Compared to purely solid‑state protectors, GDTs can handle very large 8/20 µs surge currents in a compact footprint, and they introduce negligible loading to high‑frequency or high‑speed lines in their off‑state. At the same time, they must be coordinated carefully with the rest of the circuit because the low on‑state voltage can lead to follow‑on current if the system can sustain the arc. Hybrid solutions that combine GDTs with MOVs or TVS components are therefore common in modern surge protection architectures.

Key features and benefits

• High surge current capability
  Many GDT families support nominal discharge currents in the 5 kA to 40 kA range on standardized 8/20 µs waveforms, with maximum ratings even higher for single pulses. This makes them suitable as the first line of defense in lightning‑prone or high‑energy industrial environments.
• Very low off‑state capacitance
  Typical capacitance values are in the sub‑pF to a few pF range depending on package and breakdown rating, which minimizes insertion loss and distortion on RF, xDSL, or other high‑frequency interfaces. Low capacitance is a key reason why GDTs remain popular in telecom line cards and RF front ends.
• Extremely high insulation resistance
  Off‑state insulation resistance commonly exceeds 1 GΩ and can reach tens of giga‑ohms, reducing leakage currents from line to ground and helping designers meet safety and standby consumption targets.
• Voltage‑dependent crowbar behavior
  A GDT behaves as a voltage‑triggered switch: when the applied voltage exceeds the DC breakdown (spark‑over) level, it rapidly transitions into a conductive state with a low arc voltage. Once the surge has decayed and the current falls below the holdover level, it resets back to its insulating state.
• 2‑electrode and 3‑electrode options
  Two‑electrode types are used for line‑to‑ground or line‑to‑line protection, while three‑electrode designs allow simultaneous, symmetrical protection of differential pairs, ensuring that both lines reference the same potential during a surge event.
• Hybrid integration possibilities
  Recent developments integrate a MOV and a GDT in series in a single component, combining the high surge capability and low leakage of the tube with the clamping characteristics of the varistor. This improves energy handling and extends lifetime compared to stand‑alone MOV solutions in many AC power applications.

Technical highlights

From a design point of view, several parameters define how a GDT behaves in real circuits.

Breakdown characteristics

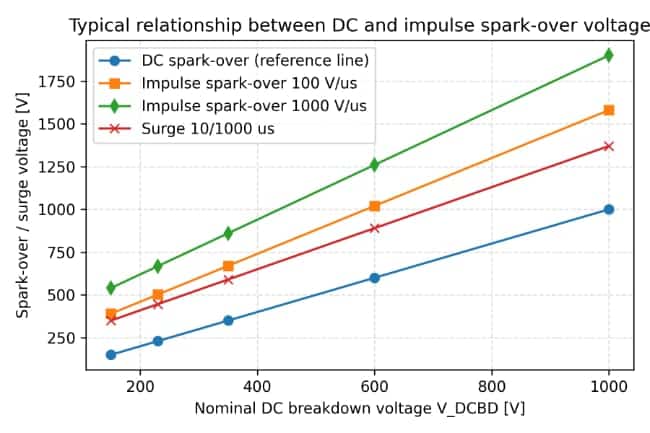

The most fundamental parameters are the DC spark‑over voltage and the impulse spark‑over voltage.

• DC spark‑over is measured with a slowly rising DC or ramp waveform and defines the nominal voltage at which the gas begins to ionize under quasi‑static conditions.
• Impulse spark‑over is measured with fast waveforms such as 1.2/50 µs and typically exceeds the DC value because of statistical time lag and dynamic effects inside the gas.

For power line protection, design guides often recommend setting the minimum DC breakdown level to at least the peak of the highest expected operating voltage plus an additional guard band. For example, on a 120 V RMS line, the peak is approximately 120×1.414120 \times 1.414120×1.414, and the selected GDT DC breakdown should be higher than this value according to manufacturer application notes.

Discharge current and energy ratings

GDTs are characterized by nominal and maximum discharge current ratings on standardized waveforms, most commonly 8/20 µs impulses.

• The nominal discharge current defines the surge amplitude the tube can withstand repeatedly for a specified number of pulses.
• The maximum discharge current is a higher single‑shot rating used to size devices for worst‑case lightning or switching events.

Energy handling capabilities are sometimes specified in joules, especially for hybrid MOV–GDT components. For instance, hybrid series for AC mains can absorb several hundred joules per 8/20 µs surge, with different disk diameters covering ranges from roughly 200 J up to around 490 J for the largest types, according to manufacturer datasheets.

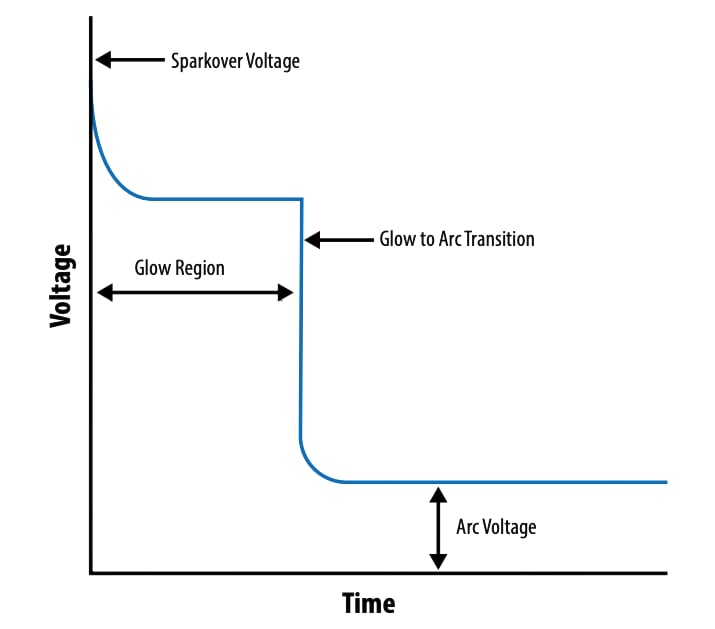

Follow‑on current and arc voltage

Once the GDT has fired, its arc voltage drops to a relatively low level compared to the circuit voltage. Because the device is essentially a triggered short circuit, any sustained current is determined by the source voltage and impedance. If the system can supply a current above the holdover level, the GDT will remain in conduction, which can overheat both the tube and upstream components. For this reason:

• Follow‑on current capability is an important application‑level parameter even if it is not always listed as a fixed datasheet number.
• Hybrid GDT–MOV arrangements use the MOV to limit the voltage and help extinguish the arc once the surge has decayed.

Capacitance and insulation resistance

Off‑state capacitance in the sub‑pF to low‑pF range is critical for maintaining signal integrity on high‑speed and RF lines. Application notes describe dedicated measurement setups to obtain accurate capacitance values at the relevant frequency, especially for very low‑capacitance telecom GDTs. In parallel, minimum insulation resistance values in the giga‑ohm range ensure negligible leakage in normal operation.

Standards and testing

GDTs for telecom and low‑voltage networks are often tested according to ITU‑T K.12 and related surge recommendations. Devices intended for AC mains SPDs are designed to support compliance with UL 1449, IEEE C62.41, and similar surge immunity and safety standards when integrated into suitable surge protective devices. Manufacturers provide application notes with typical test circuits using 1.2/50 µs voltage and 8/20 µs current waveforms to verify proper coordination.

Representative parameter ranges table

The following table gives indicative parameter ranges as published for contemporary GDT and hybrid series; exact values are according to manufacturer datasheets.

Parameter	Typical telecom GDT	AC mains hybrid MOV–GDT	High‑voltage GDT series
DC breakdown	~75 V to a few hundred volts	50 V AC to ~750 V AC operating voltage	1000 V to 2000 V DC breakdown
Nominal 8/20 µs current	Few kA	6 kA (14 mm) to 10 kA (20 mm)	Up to 40 kA nominal
Maximum 8/20 µs current	Higher single‑pulse ratings	Energy up to ~490 J, single pulse	Up to around 60 kA maximum
Capacitance	Sub‑pF to a few pF	MOV‑dominated, GDT helps keep leakage near zero	Low to moderate, application‑dependent
Operating temperature	Typically −40 °C to +85 °C or +105 °C	−40 °C to +105 °C	According to manufacturer datasheet

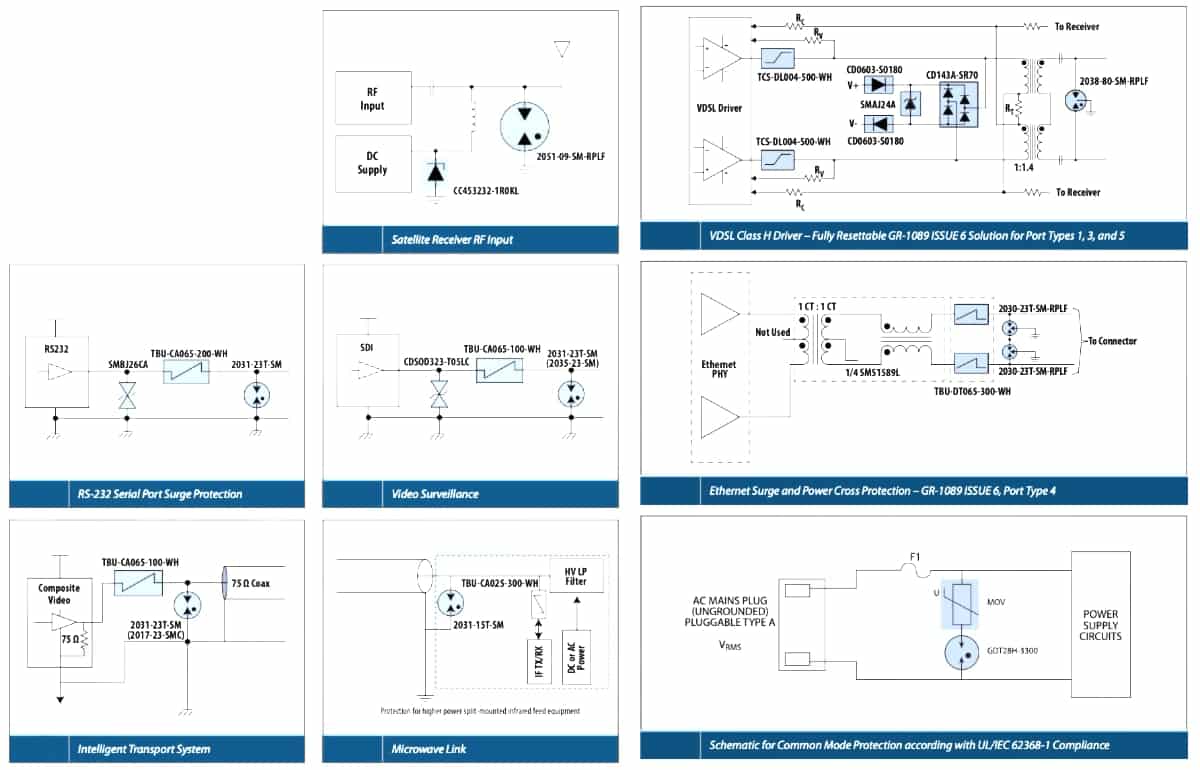

Typical applications

GDTs are used across a wide range of circuits wherever high‑energy surges must be controlled without compromising normal operation.

• Telecommunications and data lines
  Protection of copper telecom interfaces, xDSL ports, MDF blocks, RF antennas, and base station feeders. Here, low capacitance and balanced protection are critical to maintain line performance while meeting surge immunity requirements such as ITU‑T K.12 and related standards.
• AC power line surge protective devices (SPDs)
  Integration into Type 1/2 surge protective devices for residential, commercial, and industrial AC mains. High‑energy GDTs rated to tens of kiloamps on 8/20 µs waveforms can be coordinated with MOVs or other elements to meet UL 1449 and IEEE C62.41 classes.
• Industrial control and instrumentation
  Protection of I/O modules, sensor loops, alarm systems, and field‑bus networks exposed to lightning or switching surges through long cable runs. GDTs help improve system robustness while keeping leakage low in high‑impedance measurement circuits.
• Combined MOV–GDT surge modules
  AC line protection where a hybrid component combines GDT and varistor in a single leaded package. Such devices reduce leakage current to nearly zero under normal conditions while providing high surge current and energy handling capability in a compact form factor.
• High‑voltage DC and power conversion
  New high‑voltage GDT families are aimed at DC bus protection, power converters, and other high‑energy systems with DC breakdown voltages in the kilovolt range and surge ratings up to around 60 kA on 8/20 µs impulses, according to manufacturer datasheets.

Example application table

The table below summarizes typical use cases and design priorities for different GDT classes according to manufacturer documentation.

GDT class	Typical use case	Key design priorities
Low‑capacitance telecom	xDSL, RF, antenna ports	Sub‑pF capacitance, ITU‑T K.12 compliance
Standard signal line	Industrial I/O, alarm loops	Balance between breakdown level and surge rating
AC mains SPD GDT	Type 1/2 surge protectors	High 8/20 µs current rating, coordination with MOV
Hybrid MOV–GDT component	Board‑level AC input protection	Very low leakage, high energy, compact footprint
High‑voltage GDT	HV DC bus, power systems	kV‑range breakdown, 40–60 kA surge capability

Design‑in notes for engineers

• Select breakdown voltage with margin
  Choose the minimum DC breakdown voltage so that it exceeds the highest expected peak operating voltage, including tolerances and temporary overvoltages. For AC mains, design notes often start from the RMS line voltage, convert to peak, and then add a safety margin before picking the closest available GDT rating.
• Analyze follow‑on current and coordination
  Check whether the protected system can sustain significant current at the GDT arc voltage. If so, plan for series impedance and/or a secondary protector such as a MOV or TVS diode that will clamp the voltage and allow the GDT to extinguish once the surge passes.
• Pay attention to surge environment and test class
  Determine the expected surge profile based on standards such as IEEE C62.41 or ITU‑T recommendations and select GDTs with nominal and maximum discharge current ratings exceeding those levels with suitable margin. Consider multi‑pulse endurance when dimensioning for repetitive events rather than rare extremes.
• Minimize parasitics in PCB layout
  Place the GDT close to the entry point of the line and ensure a low‑impedance path to the reference node (ground or other line). Avoid long, narrow traces that add inductance and can degrade the effective clamping performance during fast surges.
• Consider 3‑electrode devices for differential pairs
  For twisted‑pair or differential signal lines, three‑electrode GDTs provide symmetrical protection for both conductors within a shared gas chamber, improving balance and helping to avoid residual transverse voltages during surges.
• Observe thermal and mechanical constraints
  Verify operating temperature range and ensure adequate spacing and creepage distances on the PCB for the selected breakdown voltage class. For high‑energy or high‑voltage parts, mechanical mounting and enclosure design should also consider venting and safe failure behavior as described in the manufacturer’s application notes.
• Use manufacturer guidance for testing
  Follow recommended test circuits for verifying spark‑over voltage, insulation resistance, and surge behavior. Dedicated notes describe how to measure capacitance accurately, how to subject devices to standardized surge impulses, and how to interpret degradation or failure indicators after testing.

Summary

Gas discharge tubes are crowbar‑type surge protection components that use a controlled gas discharge to divert high‑energy transients away from sensitive circuitry while adding almost no capacitance or leakage in normal operation. By understanding their breakdown behaviour, surge current and energy ratings, and follow‑on current risks, design engineers can use GDTs as a robust first line of defense in telecom, industrial, RF, and AC mains surge protection architectures. The article reviews key parameters, representative ranges, and typical application classes, and it outlines practical design‑in notes and a step‑by‑step selection workflow to support reliable implementation.

Conclusion

Gas discharge tubes remain highly relevant wherever high surge capability, low leakage, and very low capacitance are required, especially on exposed lines and interfaces that must still meet demanding signal integrity targets. When engineers correctly select breakdown voltage, dimension surge current and energy ratings against the expected environment, and coordinate GDTs with MOVs or TVS components, GDT‑based stages can significantly improve system robustness and standards compliance. Careful attention to follow‑on current, PCB layout, and verification testing ensures that GDT protection performs as intended over the full service life of the equipment.

GDT gas discharge tubes FAQ

Source

This article is based on information from manufacturer technical libraries, application notes, product overviews, and press releases on gas discharge tubes and hybrid GDT–MOV surge protection devices. Exact numerical values and ratings are according to the latest datasheets and product documentation made available by the respective manufacturers.
