Tapped Inductor Buck Converter Fundamentals

This article based on video tutorial by prof. Sam Ben-Yaakov explains fundamentals, benefits and design notes related to tapped inductor converters.

Tapped inductor converters are a practical alternative to classical buck converters when you need a low output voltage from a high input voltage and the required duty cycle becomes very small. They use a coupled inductor structure to reduce switch and inductor current stress, improve usability at low duty cycles, and retain some of the energy‑transfer behavior familiar from flyback converters.

Key features and benefits

Tapped inductor converters replace the single inductor of a classical buck with a coupled inductor having two windings on the same core. The inductor is “tapped” such that the current and voltage distribution between the two windings changes between on and off intervals of the power switch, which directly impacts device stresses and the effective conversion ratio.

Topology overview

• The tapped inductor buck converter uses two coupled inductors L1L_1​ and L2L_2 wound on a common core, a power switch on the input side and a diode on the output side.
• In a conventional buck, a single inductor carries the full output current continuously; in the tapped inductor version, current distribution and conduction intervals differ between the two windings.

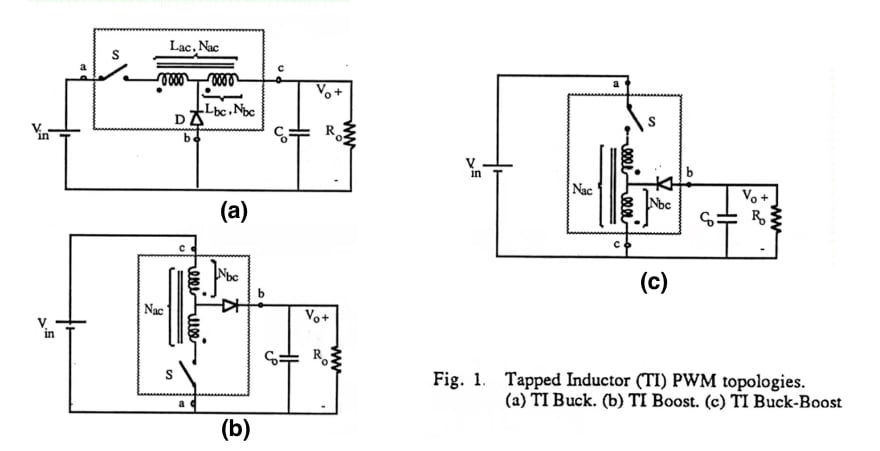

• The same tapped inductor idea can be applied to boost and buck‑boost configurations, but the focus here is on the buck version for very small effective duty cycles.
• The structure is closely related to a flyback transformer, but with the windings connected in series so that some energy is delivered to the output already during the switch on‑time.

Voltage transfer and duty cycle behavior

For the tapped inductor buck, the DC conversion ratio can be expressed as a function of the duty cycle and turns ratio. The voltage transfer ratio is given as

VoutVin=DonDon+N⋅Doff\frac{V_{\text{out}}}{V_{\text{in}}} = \frac{D_{\text{on}}}{D_{\text{on}} + N \cdot D_{\text{off}}}where DonD_{\text{on}}​ and DoffD_{\text{off}}​ are the on and off fractions of the switching period and NN is defined as the ratio between the total number of turns and the number of turns of one section of the inductor.

• For N=1N = 1 the expression reduces to the classical buck behavior in continuous conduction mode.
• For N>1N > 1, the same duty cycle produces a lower output voltage compared to a classical buck.
• To obtain a given low output voltage from a high input, the tapped inductor design can operate at a larger duty cycle than a conventional buck, which is advantageous for control and device stress.

In an example discussed in the presentation, a tapped inductor buck with a 200 V input generates about 25 V output with a duty cycle of approximately 0.5, whereas a classical buck requires a duty cycle around 0.14 for the same operating point. This illustrates how the topology mitigates the challenges of extremely small duty cycles at high step‑down ratios.

Current stress and energy flow

A key motivation for the tapped inductor is the reduction of current stress in both the main switch and a large portion of the inductor.

• In a classical buck, the output inductor carries the full output current continuously, and the switch conducts this full current during its on‑time.
• With a tapped inductor, during the off‑time the series section connected to the switch side effectively sees no current, so a large portion of the inductor is non‑conducting during this interval.
• In the example simulation, the current in the input winding L1L_1​ of the tapped inductor reaches about 12 A and conducts only during the on‑time, compared with a continuous inductor current of about 27 A in the classical buck for the same 25 V output from 200 V input.
• The secondary section L2L_2​ can experience very high pulse currents, with example peak values around 80 A, which may be useful in applications requiring high current pulses.

This redistribution of current means the switch and part of the magnetic component can be dimensioned for lower RMS current than in an equivalent classical buck design at the same operating point.

Typical applications

Tapped inductor buck converters are particularly attractive where a large step‑down ratio is required and the classical buck would have to run at a very small duty cycle.

• Off‑line or high‑voltage DC to low‑voltage DC conversion, for example from around 200 V DC to tens of volts.
• Point‑of‑load stages following a high‑voltage bus where improved duty‑cycle range and reduced switch current are desired.
• Circuits requiring compressed or pulsed high currents at the output, exploiting the high peak current available in the tapped winding.
• Educational and experimental platforms where designers want to study the relationship between coupled inductors, duty cycle and current stresses.

In many of these use cases, the topology competes with or complements flyback converters, especially where continuous conduction of output current during the switch on‑time is advantageous.

Technical highlights

The video frames the tapped inductor as a coupled magnetic component best represented by an equivalent circuit rather than a simple lumped inductor. A proper understanding of this model is essential for realistic design, especially regarding leakage inductance and snubber requirements.

Magnetic structure and equivalent circuit

• The tapped inductor uses two inductive sections L1L_1​ and L2L_2 wound on the same core, with N1N_1​ and N2N_2​ turns respectively.
• Because inductance scales as the square of the number of turns, the total inductance of the coupled structure is not simply L1+L2L_1 + L_2​.
• The presentation emphasizes expressing the effective inductance in terms of the total number of turns and a common constant KK related to the magnetic core, reflecting the N2N^2dependence.
• For analysis, an equivalent circuit is used with:
  • An ideal transformer representing the turns ratio.
  • A magnetizing inductance placed on the output side of this ideal transformer.
  • Two leakage inductances representing energy stored outside the ideal coupling.

This model is analogous to that used for flyback transformers and is the foundation for deriving a SPICE‑compatible large‑signal model of the converter.

Leakage inductance and snubber behavior

Coupled inductors inevitably exhibit leakage inductance, which leads to stored energy that must be handled when the switch turns off.

• When the switch turns off while current flows in the primary section, the leakage inductance causes a voltage spike across the switch as the current is abruptly interrupted.
• A snubber network across the switch is recommended, similar to flyback converters, to clamp this voltage and dissipate or, in more advanced designs, recover the stored leakage energy.
• The example uses a snubber adjusted so that a 1,200 V device sees about 700 V peak, illustrating practical snubber dimensioning relative to device ratings.

Designers must factor leakage‑related spikes into device selection, snubber design and PCB layout to ensure reliable operation.

Example simulation parameters

The presentation includes a time‑domain simulation that compares a tapped inductor buck to a classical buck under matched output conditions.

• Input voltage: 200 V DC.
• Output voltage: approximately 25 V in both topologies.
• Switching frequency: 50 kHz.
• Tapped inductor buck:
  • Duty cycle DD about 0.5.
  • Turns ratio N1/N2=5N_1 / N_2 = 5.
  • Example inductances: L1≈5 μHL_1 \approx 5 \,\mu\text{H}, L2≈125 μHL_2 \approx 125 \,\mu\text{H}, consistent with the square of the turns ratio.
  • Coupling coefficient assumed as 0.95, which is optimistic but realistic for a tightly wound structure.
• Classical buck:
  • Same nominal inductance value as the effective inductance of the tapped structure.
  • Duty cycle adjusted to about 0.14 to achieve the same 25 V output.

Despite identical output conditions, the current waveforms and device stresses differ markedly, highlighting the practical impact of the topology choice.

Relationship to flyback converters

The tapped inductor buck converter can be seen as a variation of the flyback topology with series‑connected windings.

• In a flyback converter, all energy transfer occurs during the switch off‑time: energy is stored in the core when the switch is on and released to the output when the switch is off.
• In the tapped inductor buck, some current flows to the output even during the switch on‑time because of the series connection of the windings.
• During off‑time, the stored energy in the magnetizing inductance is delivered to the output, closely mirroring the flyback behavior.
• Both topologies share similar concerns regarding leakage inductance, voltage spikes on the switch, and the need for snubbers.

This conceptual link helps engineers reuse their flyback know‑how when analyzing tapped inductor buck designs.

Design‑in notes for engineers

When designing or evaluating a tapped inductor buck converter, several practical aspects deserve attention, from magnetics design and switch selection to control strategy and filtering.

Selecting turns ratio and duty cycle range

• Choose the turns ratio N1/N2N_1 / N_2​ to achieve the desired combination of effective voltage step‑down and duty‑cycle range.
• Higher ratios allow operation at larger duty cycles for the same low output voltage, easing control and improving resolution, but they also increase peak secondary current and may enlarge the magnetic component.
• Verify that the chosen ratio keeps the switch duty cycle within a range where your PWM controller, current sensing and loop compensation behave well under all operating conditions.

Magnetic component and coupling

• Aim for a high coupling coefficient to reduce leakage inductance and associated switching stress; values around 0.95 are considered achievable with careful winding design.
• Use winding arrangements (e.g. interleaving or tape‑wound primaries with over‑wound secondaries) that support strong coupling while managing insulation and thermal constraints.
• Size the core area and air gap to handle the peak magnetizing current and stored energy without saturating over the full operating envelope.

Handling high pulse currents

• Recognize that the tapped section can experience very high pulse currents compared to the average output current; in the example, peaks around 80 A are observed.
• Ensure that conductor cross‑section, PCB traces and terminations can withstand these current pulses without excessive losses or overheating.
• If your application benefits from high short‑duration current pulses, for example in pulsed loads, leverage this behavior intentionally but confirm that all components are rated accordingly.

Snubber and switch selection

• Select a switch voltage rating with margin above the expected clamped voltage, taking into account any tolerances and worst‑case leakage inductance.
• Design an RC or RCD snubber (or a more advanced lossless snubber) across the switch to clamp voltage spikes to a safe level.
• Be aware that higher snubber clamp voltages reduce power dissipation in the snubber but increase stress on the switch, so find a compromise that meets both reliability and efficiency goals.

Output filtering and ripple

• Because the tapped inductor converter can produce sharp current pulses, output voltage ripple can be higher for the same output capacitor value compared to a classical buck.
• In the example, both converters share a 100 µF output capacitor, yet the tapped inductor shows significantly higher output ripple.
• Plan for increased output capacitance or use low ESR capacitors to achieve the same ripple performance as a classical buck, especially at high load currents.
• Balance capacitor size with system cost and board area; in some applications, accepting higher ripple may be preferable to larger capacitors.

Control and stability considerations

• The modified transfer function, along with magnetizing and leakage inductances, may introduce additional dynamics compared to a classical buck.
• Use a compatible SPICE model for the tapped inductor (as discussed in the referenced paper) to simulate small‑ and large‑signal behavior before committing to hardware.
• Validate loop compensation and transient response over line, load and temperature variations, paying particular attention to the behavior at low output voltages and high conversion ratios.

Conclusion

Tapped inductor buck converters offer a compelling alternative to classical bucks when you need to step down from a high input to a low output voltage without resorting to extremely small duty cycles. By using a coupled inductor with an appropriate turns ratio, you can reduce switch and inductor current stress, operate at more comfortable duty cycles, and still leverage analysis techniques familiar from flyback converters.

For design engineers, the key is to select the turns ratio and magnetic design to balance duty cycle, current peaks, and component size, while carefully handling leakage inductance through snubber design and appropriate device ratings. Purchasing and sourcing teams should be aware that the magnetic component is more specialized than a standard single inductor, and early collaboration with magnetics vendors or in‑house designers is advisable. As a next step, running SPICE simulations with an accurate tapped inductor model and validating the design on hardware will provide confidence before volume deployment.

FAQ: Tapped inductor buck converters

Source

This article is based on the educational presentation “Power Electronics fundamentals: Tapped inductor converters” by Sam Ben‑Yaakov and the associated reference to a SPICE‑compatible model of tapped‑inductor PWM converters, as presented at APEC 1994.

References

1. Power Electronics fundamentals: Tapped inductor converters – Sam Ben‑Yaakov (YouTube)
2. D. Edry, M. Hadar, O. Mor and S. Ben‑Yaakov, “A SPICE compatible model of tapped-inductor PWM converters,” APEC 1994, DOI: 10.1109/APEC.1994.316287
