Designing a 2 kW LLC Transformer with Integrated Resonant Inductor

Designing an LLC transformer where the resonant inductance is fully integrated into the transformer leakage is a powerful way to shrink magnetics and improve efficiency in high‑density power supplies.

This approach, however, exposes all the practical limits of core sizing, leakage control, copper losses and thermal margins that are often hidden by first‑order equations.

The following article written by Dr. Molina, Frenetic walks through a realistic 2 kW, 800 V to 48 V LLC converter design using an integrated resonant inductor, highlighting how to select LmL_m and LrL_r, estimate core size and leakage, and then close the loop with simulation‑driven iteration.

Design target and operating context

For this example, the LLC stage targets a telecom/industrial‑class DC‑DC converter around the 2 kW level with a high‑voltage front end.

• Topology: LLC resonant converter
• Input: 800 V DC bus (fixed for this study)
• Output: 48 V DC
• Output power: approximately 2 kW
• Nominal resonant frequency: about 100 kHz
• Efficiency target: above 97%

The key requirement is to integrate the resonant inductance into the transformer leakage inductance, eliminating a separate resonant choke. This places tight constraints on the core geometry, winding scheme and allowable temperature rise, because the “transformer” now carries both isolation and resonant energy‑storage functions.

LLC Gain Model

Using the Fundamental Harmonic Analysis (FHA) approach (as described in TI’s SLUP263), the LLC voltage gain can be approximated as:

Mg=∣Ln⋅fn2[(Ln+1)⋅fn2−1]+j[(fn2−1)⋅fn⋅Qe⋅Ln]∣M_g = \left| \frac{L_n \cdot f_n^{2}}{[(L_n + 1)\cdot f_n^{2} – 1] + j \left[(f_n^{2} – 1)\cdot f_n \cdot Q_e \cdot L_n \right]} \right|where:

• M_g: Magnitude of the LLC converter voltage gain (output‑to‑input ratio in fundamental harmonic analysis).
• Ln: Normalized inductance ratio, defined as Ln=Lm/Lr, where Lm is the magnetizing inductance and Lr is the resonant inductance.
• fn: Normalized switching frequency, defined as fn=fs/fr, where fsis the actual switching frequency and fr is the resonant frequency of the tank.
• Qe: Effective quality factor of the resonant tank, which depends on the load resistance reflected to the primary and the values of LrLr and the resonant capacitance.

Why the Lm/LrL_m/L_r ratio matters

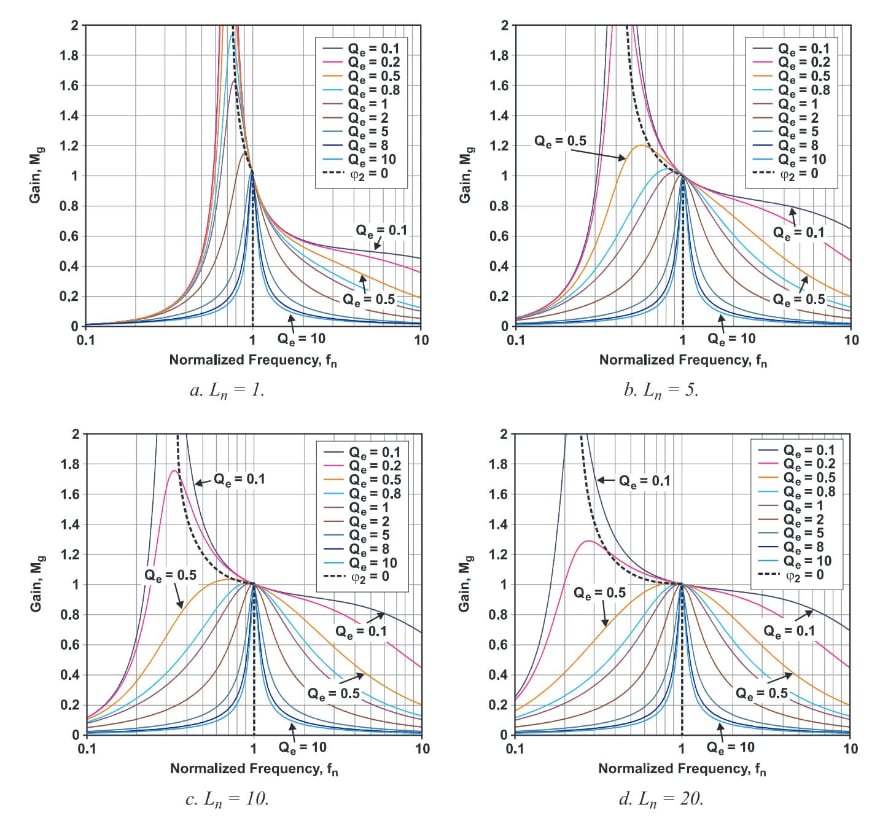

Different LnL_n values reshape the gain curve:

• Lower LnL_n: sharper gain peak, higher gain sensitivity, narrower usable frequency range.
• Higher LnL_n: flatter gain curve, broader frequency span, typically easier control at the cost of different current waveforms.

The role of QeQ_e and resonant capacitance

The effective quality factor QeQ_e is shaped by:Qe=Lr/CrRe

• Resonant inductance LrL_r and resonant capacitance CrC_r
• Reflected load resistance ReR_e to the primary

For a given power level and bus voltage, QeQ_e links the tank design to the expected load range. The resonant capacitor selection is non‑trivial: the chosen capacitance must support control requirements, soft‑switching windows and component availability. In this design walkthrough, CrC_r is treated as a degree of freedom to be fixed later once the magnetic structure is stable; the focus is on the transformer plus integrated LrL_r.

Choosing Initial Design Values

We’re going to use the Frenetic Magnetic Simulator to find a design. Even though we understand the theory, the Frenetic Simulator still requires you to input numerical values for L_m and L_r.

In practice, a moderate value such as Ln≈5L_n \approx 5 is often chosen early as a good compromise between gain sensitivity and control range. The study further assumes an effective quality factor Qe≈0.5Q_e \approx 0.5 as an initial, well‑behaved operating point.

These values tend to produce stable and well-behaved gain curves, making them a good initial point for design exploration.

Now we need to put pen to paper and get some actual values for L_m and L_r.

Estimating core size using area product

Before assigning absolute values to LmL_m and LrL_r, it is essential to estimate how large the transformer should be. The achievable leakage inductance is tightly linked to core geometry and winding layout, so starting from a realistic core size avoids chasing impossible combinations of inductance and loss.

A practical way to estimate core size is the area‑product method. The area product ApA_p combines core cross‑section area AcA_c and winding window area AwA_w into a single figure of merit related to apparent power:Ap=AwAc  (cm4)Where:

• Aw = winding window area (cm²).
• Ac = core cross-section area (cm²).

A more practical expression relates the area product to the transformer power capability directly:Ap=Pt⋅104KfKuBmJf

Where:

• Pt apparent power (w).
• Kf waveform factor (4.44 for sinusoidal excitation, 4 for square wave excitation).
• Ku = window utilization factor (usually between 0.2-0.4).
• Bm = peak flux density (T).
• J = current density (A/cm²).
• f switching frequency (Hz).

Remember, the apparent power includes both primary and secondary power throughput:Pt=Po(1+1η)

CASE STUDY

Assumed Design Parameters

For this design I’ll choose conservative but realistic values:

• Output power PoP_o: 2000 W
• Efficiency η\eta: 0.97 (implying about 60 W total loss budget)
• Waveform factor KfK_f: 4 for square‑wave type excitation
• Window utilization KuK_u: approximately 0.25
• Peak flux density BmB_m: around 0.12 T (conservative for 100 kHz ferrite)
• Current density JJ: about 4 A/mm²
• Switching frequency ff: 100 kHz

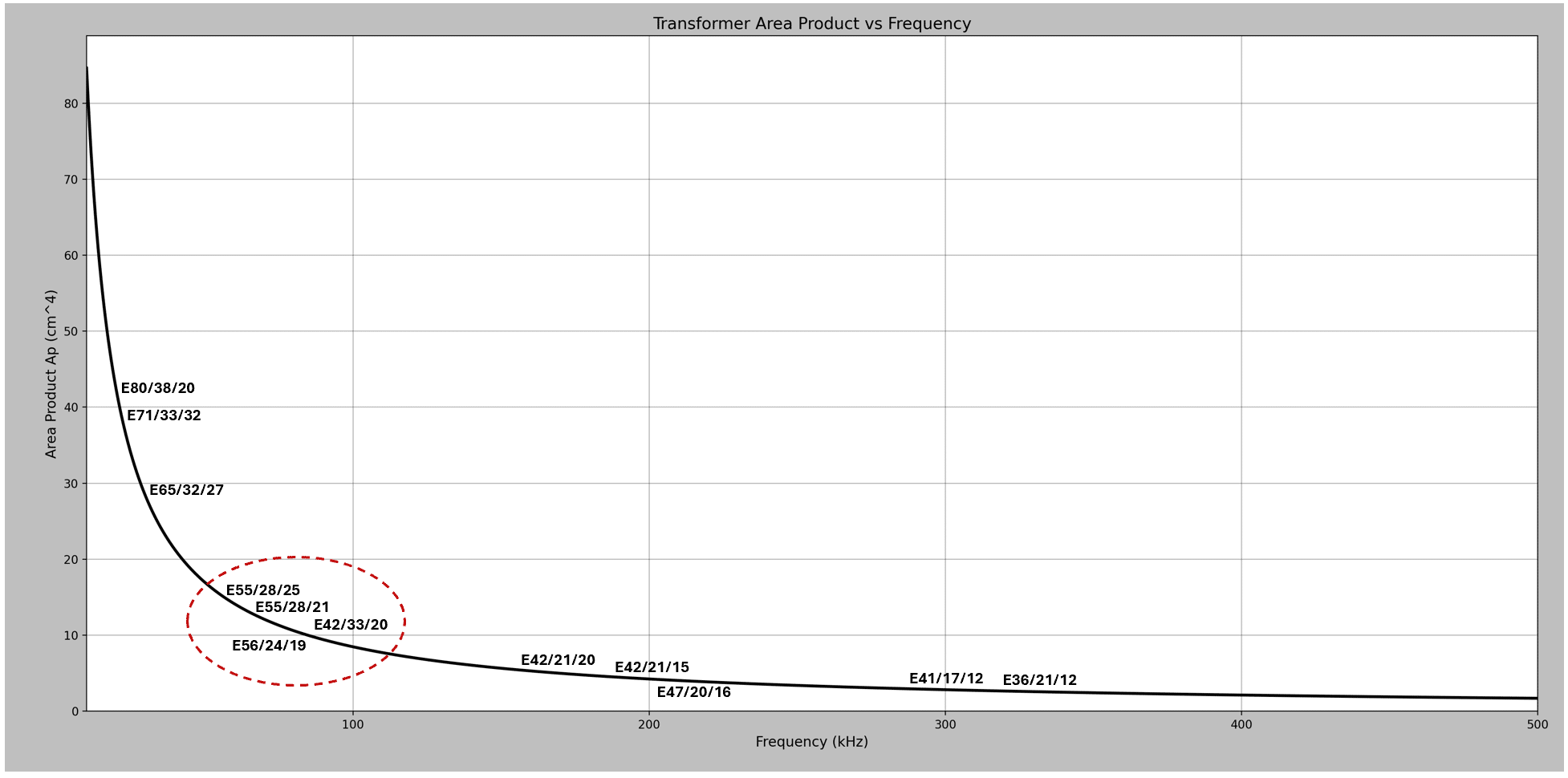

With these assumptions, the estimated area product is on the order of 8 cm⁴. This points toward medium‑to‑large E‑cores as suitable candidates, such as:

• E55
• E56
• E42

This initial sizing is intentionally approximate and serves to narrow down core families rather than pick a final part number.

Once a core candidate is selected, we can estimate the minimum number of primary turns required to keep the flux density below our target.

Estimating the minimum primary turns

For each potential core, the minimum primary turns are chosen so that the peak flux density remains below the target BmB_m at 800 V input and the intended operating frequency. Np≈V4BmaxAef

This yields a first‑order turn count which:

1. Limits core loss by constraining peak flux.
2. Determines copper cross‑section needs from current density.
3. Sets the scale for both magnetizing and leakage inductances.

Even if a simulator will later refine the exact turns, having a minimum turns estimate is necessary to predict the feasible leakage inductance range.

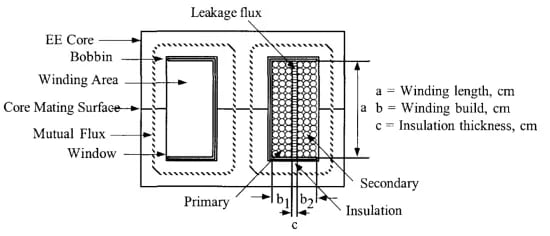

Estimating leakage inductance as resonant LrL_r

Because the resonant inductance is fully integrated into the transformer, the leakage inductance of the winding geometry becomes the design’s LrL_r. Classical rules of thumb such as McLyman’s formulas approximate leakage for layered windings, using physical dimensions like:

• Winding width and height
• Spacing between primary and secondary
• Interleaving pattern

These formulas are sensitive to assumptions about insulation thickness and layout. For a design where leakage inductance is a key functional parameter rather than a parasitic, this sensitivity must be treated with caution. Nevertheless, the approximations give a useful starting point for:

• Selecting an initial layer stack‑up.
• Assessing whether the target LrL_r is even feasible for a given core size.

With an estimated leakage LrL_r for the chosen core and turns, LmL_m can be set using the target inductance ratio. For example, if leakage is around 10 µH and Ln=Lm/Lr=5L_n = L_m / L_r = 5, then:

• Lm≈50 μHL_m \approx 50\ \mu\text{H}

These values then feed into a magnetic simulation tool for detailed optimization.

Simulation‑driven design with Frenetic

The study uses the Frenetic Magnetic Simulator to explore many transformer variants quickly. Starting from the analytical estimates, the tool evaluates:

• Magnetizing inductance LmL_m and leakage LrL_r
• Core and copper losses
• Temperature rise and hot‑spot behavior
• Achieved inductance ratio LnL_n

Across 33 different designs and multiple core sizes, the simulations reveal several important realities for integrated LLC magnetics.

Observation 1 – initial area product was optimistic

Smaller cores derived from the 8 cm4^4 estimate struggled to meet both loss and temperature limits at 2 kW. With the integrated resonant function, the transformer carries substantial reactive energy and copper stress, so the actual required core volume is larger than a simple area‑product estimate suggests. In practice:

• Undersized cores lead to excessive temperature rise.
• Pushing flux or current density hard to save volume quickly erodes the loss budget.

Observation 2 – analytical leakage estimates are optimistic

The leakage inductance predicted by simple formulas often deviated from the simulation results. In an LLC design where leakage is intentionally raised and controlled:

• Small changes in spacing or layer order significantly alter leakage.
• Realistic insulation and manufacturability constraints limit how aggressively one can “tune” leakage via geometry.

This underscores that leakage needs to be validated by field‑solving or high‑fidelity simulation, not just pencil‑and‑paper rules.

Observation 3 – lower LnL_n increases thermal stress

The design exercise shows a clear trend: as LnL_n decreases, thermal performance worsens, even when core size and basic flux limits are similar. The reason is primarily copper‑related:

• Lower LmL_m means higher magnetizing current to establish the same flux swing.
• Larger or distributed air gaps increase fringing fields and local AC losses.
• The combination raises AC copper loss, pushing winding temperatures upward.

For an integrated resonant design, this effectively limits how low LnL_n can be pushed without compromising thermal headroom.

Observation 4 – larger cores ease thermals but push LnL_n upward

Scaling to larger cores generally reduces flux density and current density for a given power level, improving thermal margins and lowering losses. However:

• Fewer turns are needed on larger cores.
• With shorter mean length per turn and more compact windings, leakage inductance tends to decrease.
• With LrL_r shrinking while LmL_m remains relatively high, the achieved LnL_n drifts above the original target.

The net effect is that bigger cores make it easier to meet thermal targets but harder to hold LnL_n near 5. Designers often face a trade‑off: accept a higher LnL_n and adapt control strategy, or accept tighter thermal margins.

Observation 5 – leakage is relatively stable per core family

For a given core geometry, the achievable leakage inductance did not vary as dramatically as one might expect:

• Current density constraints limit how much the turn count can be altered.
• Basic winding geometry (number of layers, relative positions of primary and secondary) remains similar across variants.
• Only moderate tweaks to winding width and spacing are practical.

This suggests that, for a chosen core family, there is only a narrow band of feasible leakage values without radical changes to the winding concept.

Final design choice and key numbers

After exploring the design space, the selected solution uses:

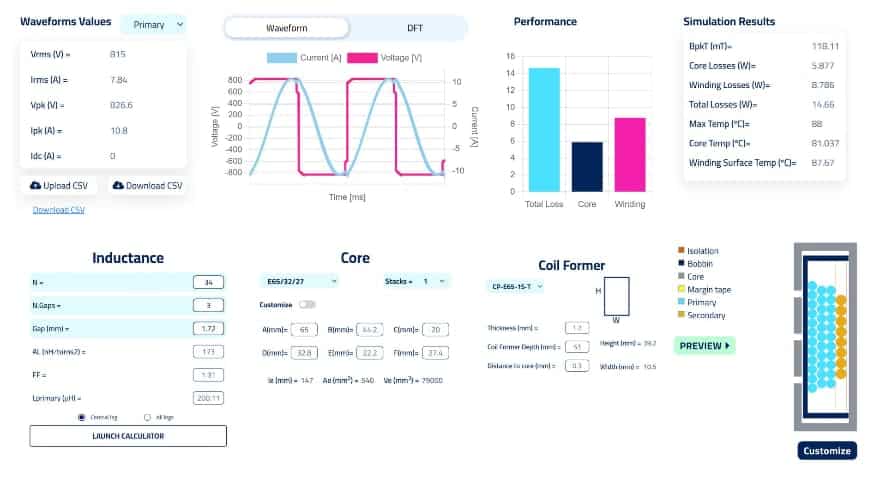

• Core: E65/32/27 ferrite core
• Primary turns: 34 turns
• Total losses: about 14.66 W in the transformer
• Maximum temperature: around 88 °C under the specified operating conditions
• Inductance ratio: Ln≈7.7L_n \approx 7.7

This design comfortably fits within a 2 kW/97% efficiency target with a shared loss budget of about 60 W and a transformer allocation of roughly 24 W. The achieved 14.66 W of losses leaves margin for control, EMI, and mechanical uncertainties while maintaining a reasonable temperature rise.

Although the final LnL_n is higher than the initial target of 5, the design is considered practical and controllable. It provides:

• Solid thermal performance on a realistic core size.
• Integrated resonant inductance sufficient to avoid an external inductor.
• A robust starting point for further converter‑level optimization.

The resonant capacitor and precise switching frequency plan remain important tuning knobs at the converter level. Adjusting these can compensate for the higher LnL_n during control loop design and fine‑tune the gain curve without reopening the magnetic stack from scratch.

Typical applications for this LLC transformer approach

An LLC transformer with integrated resonant inductance and a 2 kW, 800 V to 48 V profile is well aligned with a range of high‑density power conversion tasks:

• Telecom and datacenter DC‑DC modules on high‑voltage intermediate buses.
• Industrial DC supplies from rectified 3‑phase or PFC‑boosted mains around 800 V.
• EV on‑board chargers or DC fast‑charging second‑stage converters with 48 V rails.
• High‑power server or storage power units requiring compact magnetics and high efficiency.

The integration of the resonant inductor directly into the transformer is particularly attractive anywhere PCB real estate and component height are constrained, or where layout simplicity and reduced parasitics are key to EMI performance.

Design‑in notes for magnetics engineers

When designing or specifying an LLC transformer with integrated resonant inductance, the following practical points are useful:

• Treat LnL_n as a range, not a fixed target. Aim for a band (for example, 5–8) that meets gain and control requirements while still leaving thermal and mechanical margin.
• Use area‑product calculations as a lower bound. For high‑density resonant designs, assume you will need a somewhat larger core than first‑order theory suggests.
• Consider early constraints on current density and temperature rise. Working backward from allowable hot‑spot temperatures often pushes designs toward larger cores and more parallel copper.
• Reserve design freedom in the resonant capacitor and frequency plan. Because LnL_n may shift after realistic thermal and leakage constraints are applied, allow CrC_r and the frequency range to adapt later.
• Simulate leakage and AC losses with realistic geometry. Approximate formulas are useful to get started but can be misleading when the leakage inductance is intentionally high and functionally critical.
• Keep manufacturability in mind. Complex winding schemes that “look good” in simulation may be challenging or expensive to build; iterative simulation should include practical layer counts, insulation systems and terminations.

For purchasing engineers, it is important to recognize that such a transformer is not a commodity catalog part. It is usually an application‑specific magnetic component, designed around:

• A particular core family (for example, E65/32/27 ferrite of a defined material).
• Specific turns, wire types (round or foil) and insulation systems.
• Verified loss and temperature profiles at the intended operating point.

Sourcing strategies should therefore focus on manufacturers experienced in custom high‑frequency magnetics and on establishing clear specifications for LmL_m, LrL_r, inductance tolerance over temperature, isolation ratings and test conditions.

Source

This article summarizes and interprets a detailed 2 kW LLC transformer design example with integrated resonant inductance, based on a technical design walkthrough published by the original author. Numerical values, core choice and qualitative trends follow the example content, while additional commentary focuses on design‑in implications for engineers and buyers.
