Coilcraft Announces New Isolation Transformer and Common Mode Choke for 10BASE-T1 Applications

14.3.2025
Reading Time: 2 mins read
A A

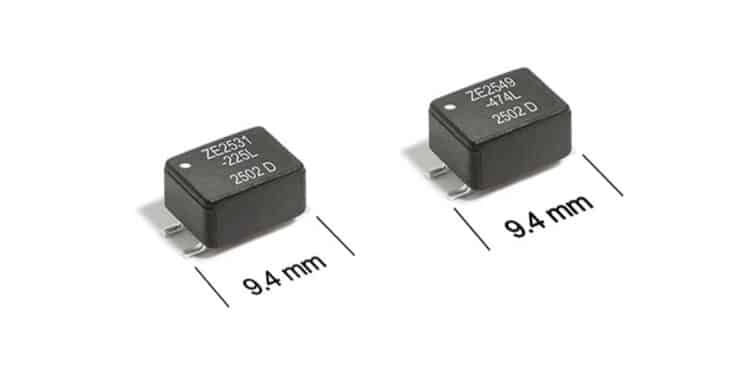

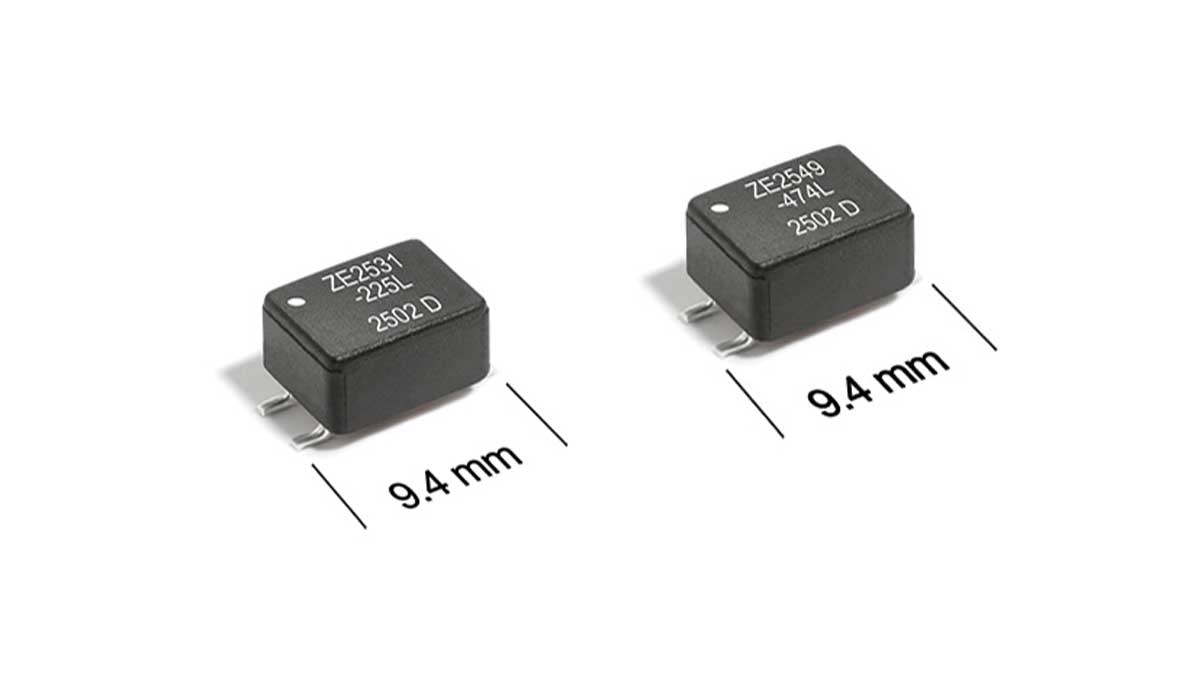

Coilcraft releases the ZE2531 Isolation Transformer that offers galvanic isolation and ZE2549 Common Mode Choke for Single Pair Ethernet (SPE) networks.

It supports 10Base-T1L and Power over Data Line (PoDL) for transmitting both data and power over a single twisted pair cable. The part complies with the IEEE 802.3cg standard. It functions as a complete solution for 10Base-T1L applications, such as industrial automation, building automation, IoT, and others, where low-cost, long-range Ethernet is crucial.

RelatedPosts

Coilcraft Unveils 165C High-Temperature Coupled Inductors

Coilcraft Extends Air Core RF Inductors

Coilcraft Releases Ultra Low Loss Power Inductors in Compact Package

The transformer boasts a robust 3000 VDC and 2000 Vrms output voltage, ensuring reliable and efficient power delivery. Additionally, it offers a remarkable one-minute isolation (hipot) between windings, providing a safe and secure environment for network operations.

Features

  • Isolation transformer designed for 10Base-T1L applications
  • Compliant with IEEE802.3cg standard
  • 3000 VDC, 2000 Vrms, one minute isolation (hipot) between windings
  • AEC-Q200 qualified

The ZE2549 is a common-mode choke specifically designed for Single Pair Ethernet (SPE) networks. It effectively suppresses common-mode noise and reduces EMI in 10BASE-T1L applications.

This choke supports both data-only transmission and Power over Data Line (PoDL), enabling the transmission of both data and power over a single twisted pair cable. Additionally, it complies with the IEEE 802.3cg standard. The ZE2549 serves as a comprehensive solution for 10Base-T1L applications, including industrial automation, building automation, IoT, and others, where low-cost, long-range Ethernet is crucial.

Features

  • Common mode choke designed for 10Base-T1L applications
  • Compliant with IEEE802.3cg standard
  • 1500 VDC (1000 Vrms), one minute isolation (hipot) between windings
  • AEC-Q200 qualified
