Sumida Introduces Flyback Transformer for Analog Devices

17.9.2019
Reading Time: 1 min read
A A

Source: Sumida news

Sumida releases new flyback transformers which associates Analog Devices LT8316 references design. The LT8316 is 600Vin micropower no-opto isolated flyback controller.

RelatedPosts

Military and Aerospace Interconnect Design: Key Trade-offs

Samsung Introduces 630V X7T Molded Frame Capacitor for Automotive

Exxelia Presents Disc Capacitors and Integrated Magnetics for Space

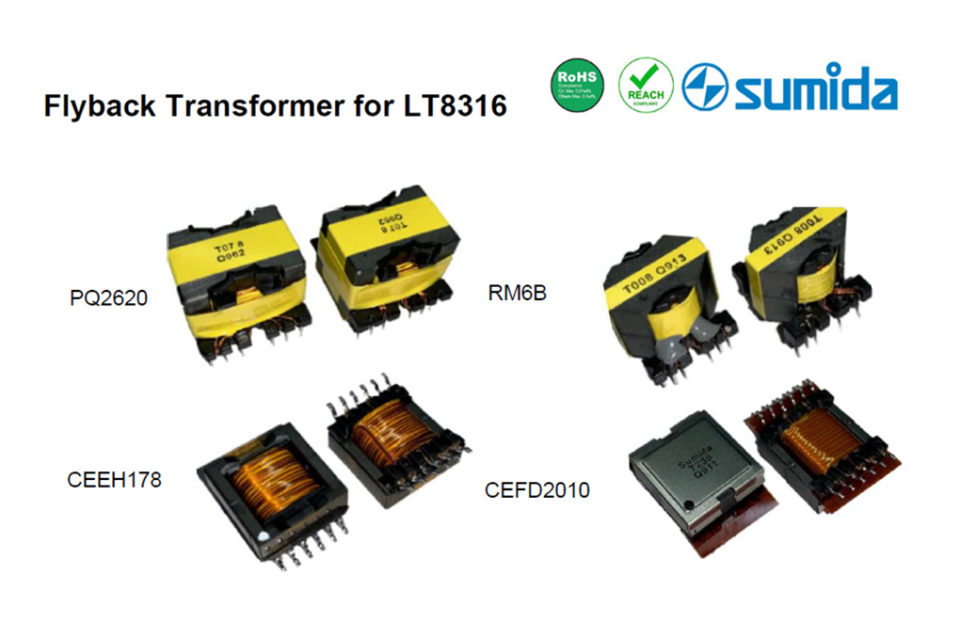

Product types:

PQ2620 size 31 x 28.5 x 23.5 (H) mm max. PIN type (11328-T060 /11328-T061 /11328-T073 /11328-T074 /11328-T078 /11328-T086)
RM6B size: 20 x 19 x 16 (H) mm max. PIN type (15364-T008)
CEEH178 size 19±0.5 x 17.4±0.6 x 8.6±0.5 (H) mm SMD type (11338-T195)
CEFD2010 size 21 x 21.5 x 11.8 mm max. SMD type (00399-T239)

Key Features:

  • Environmental RoHS compliant without exemption, REACH compliance
  • Terminal platings: Matte Tin and thickness ≥ 8μm
  • Moisture Sensitivity Level (MSL) 1 (Unlimited floor life at < 30°C /85% relative humidity)
  • Operating temprature range: -40°C to 125°C (ambient + Temp rise)
  • Storage temperature range: -40°C to 125°C
  • Recommended reflow condition as max temperature 245°C withstand no longer than 40 seconds

Applications:

  • Isolated Telecom, Automotive, Industrial, Medical Power Supplies
  • Isolated Off-Line Housekeeping Power Supplies
  • Electric Vehicles and Battery Stacks
  • Multioutput Isolated Power Supplies for Inverter Gate Drives

Typical Application:

Production Stage:

In mass production
