Stackpole Chip resistors offer voltage ratings up to 20KV

1.3.2018
Reading Time: 1 min read
0 0
0
SHARES
27
VIEWS

source: Stackpole news

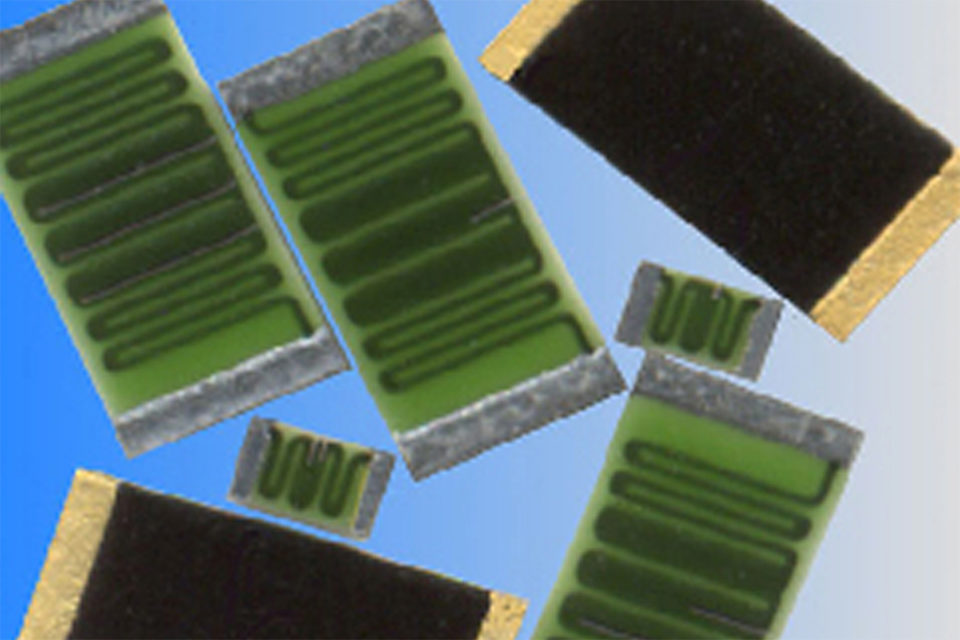

Global manufacturer of resistors, Stackpole, has announced its UHV series which offers high voltage ratings per package size.

RelatedPosts

Examining the Influence of ESR and Ripple Current on Selecting the Suitable Capacitor

SABIC Validates its 150°C Film Foil to Enable Adoption of Film Capacitors in SIC Power Modules

Outlook of Passive Electronic Components Market for Oil & Gas Electronics in 2023

Stackpole Electronics, Inc. RALEIGH, NC

The UHV series from Stackpole offers extremely high voltage ratings per package size:

  • UHV2010 rated up to 6KV
  • UHV2512 rated up to 10KV
  • UHV3512 rated up to 12KV
  • UHV4020 rated up to 16KV
  • UHV5020 rated up to 20KV

In addition, values of 500M, 1G, and 2G are in stock in sizes from 2010-5020, which are suitable for use on the high voltage side of a high voltage divider network.

Resistance range for the UHV series is from 100M up to 10G in TCR of 100ppm and tolerances as low as one percent.

The UHV is suitable for high voltage medical applications, voltage dividers, high voltage power supplies, avionics and aerospace, industrial equipment, and telecom infrastructure and equipment.

Pricing for the UHV depends on size, resistance value, tolerance and TCR.
