Sumida Introduces Low DC Resistance Inductor for Class D Amplifiers and High Current Power Supplies

23.1.2019
2 min read
0 0
Sumida Introduces Low DC Resistance Inductor for Class D Amplifiers and High Current Power Supplies
0
SHARES
9
VIEWS

source: Sumida news

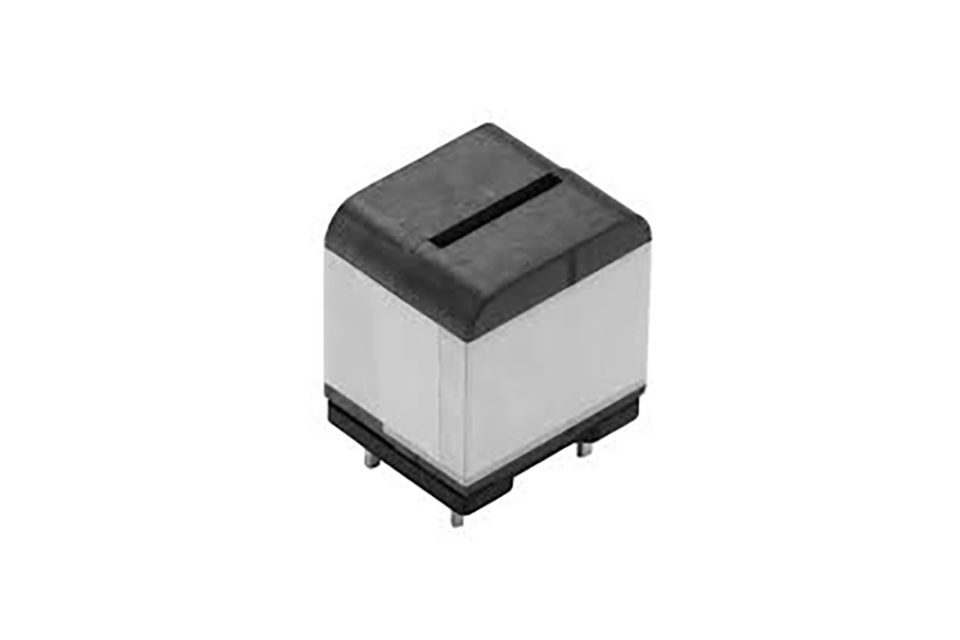

Sumida introduces Class D Amplifier Inductor for LPF: DEP1519B. DEP1519B is featured with high current power supply and low DC resistance. This Inductor is wound by flat wire and assembled with the Mn-Zn ferrite core. The L value range is the same as the existing type DEP1519.

Key Features:

  • Ferrite core construction
  • Magnetically shielded
  • Operational Temperature range: -40°C ~ +125°C (including self-heating)

Applications:

  • Digital amplifier filter, car audio, home theater and large LCD, etc.

Parts List:

Part Name Inductance [Within] (μH) ※1 D.C.R. at 20℃ max. (typ.) (mΩ) Saturation Current
(A) Max. (Typ.) ※2
Temperature Rise Currrent
(A) (Typ.) ※3
DEP1519BHF-100M 10.00 ± 20% 10.70 (9.20) 26.00 (32.70) (11.20)
DEP1519BHF-150M 15.00 ± 20% 10.70 (9.20) 18.80 (23.50) (11.20)
DEP1519BHF-220M 22.00 ± 20% 10.70 (9.20) 13.20 (16.50) (11.20)
DEP1519BHF-330M 22.00 ± 20% 10.70 (9.20) 9.40 (11.80) (11.20)

※1 Measured frequency Inductance at 1kHz, 1V.
※2 Saturation current: This indicates the value of D.C. current when the inductance becomes 25% lower than its initial value.
※3 Temperature rise current: The value of D.C. current when the temperature of coil becomes △T=40℃. (Ta=20℃)

Production Stage:

In mass production
