Taiyo Yuden offers Li-ion capacitors to combine battery and super-cap behaviour

26.3.2019
Reading Time: 3 mins read
A A

Source: Electronics Weekly news

By Steve Bush. Taiyo Yuden to offer ‘lithium ion capacitors’ – devices that combine super-capacitor and lithium ion storage to create a component with twice the storage capacity of its own super-caps, a 3.8V terminal potential, and long cycle life – although the latter only if it is never discharged below 2.2V.

RelatedPosts

TDK Increases Current Ratings of Automotive Thin-Film Power Inductors

Sumida Announces New DC Common Mode Choke Coil Series

KYOCERA AVX Releases New 3dB Hybrid Couplers

Operation is over -25 to 85℃ (voltage caveats above 70℃), and the firm will offer four versions: 20, 40, 100 and 270F.

“It has superlative safety characteristics,” said Taiyo. “Since the amount of self discharge is small, self-ignition becomes extremely unlikely.”

Super capacitor Li-ion capacitor Li-ion battery
Operating voltage 2.7Vmax 2.2-3.8V
(2.5-3.5V at >70℃)
~2.7 – 3.6V
Operating temperature range -25 to 70℃ -25 to 85℃ -20 to 60℃
Electrode material Activated charcoal Activated charcoal
Carbon-based material
Li metal oxide
Carbon-based material
Electrolyte Organic solvent Organic solvent Organic solvent
Storage physics Electrical double-layer Electrical double-layer
Ion doping and de-doping
Oxidation-reduction reaction
Heavy metals None None None
Number of recharges > 100,000 times > 100,000 times 1,000 times
Relative cap/vol 1 2 100

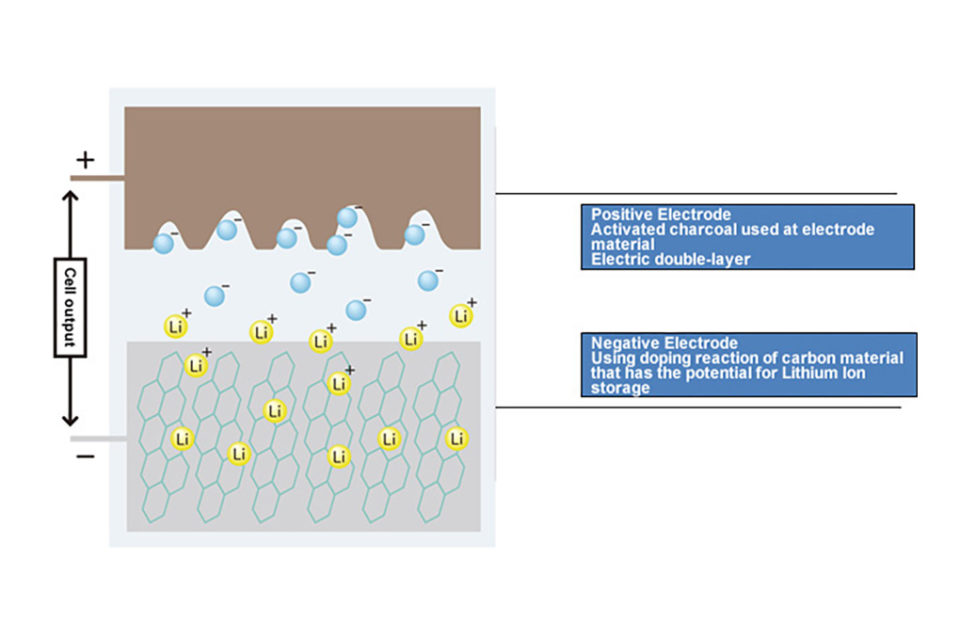

Lithium Ion Capacitors are a type of asymmetric capacitor, where the positive and negative electrodes use different principles.

They have the positive electrode of an electrical double-layer capacitor, which forms an electrical double-layer and is charged and discharged by a physical process, combined with the negative electrode of a lithium ion battery, where lithium undergoes reduction-oxidation (redox) reactions.

“Compared to existing capacitors, the energy density is high, a large reason for this is the fact that the static electricity capacity of the negative electrode is increased by pre-doping,” said the firm – also pointing out that this means the capacitors arrive pre-charged, and capable of delivering high currents into accidental short circuits.

Part capacitance
F
diameter
mm
length
mm
dc resistance
mΩ
LIC1030RS3R8206 20 10 30 250
LIC1235RS3R8406 40 12.5 35 125
LIC1840RS3R8107 100 18 40 60
LIC2540RS3R8277 270 25 40 60

Really, never discharge below 2.2V
The company has created a comprehensive application note (Notes on circuit design for lithium ion capacitor), and one warning entry reads: “Do not use the product at voltages below the lower limit voltage (2.2V). It may generate gas, causing it to leak, heat up, smoke, explode, or burst into flames. Take due care when designing circuits so that the voltage never falls below the lower limit voltage.”

On the plus side, unlike Li-ion batteries, penetration of the cell is unlikely to cause a fire. According to Taiyo Yuden: “The constituent materials do not contain oxygen, and the chemical reactions that would give rise to thermal runaway cannot occur solely based on Joule heating from the accumulated electrical charge. That means that energy is lost together with the release of electrical charge, and there is no danger of ignition.”

Test results for nail penetration – sideways through the cell – are: no explosion or ignition, and no opening or bulging of the safety valve. Cell surface did reach ~110°C after around two minutes.

According to product developer Mr Ishida (right), the firm had two use cases in mind Li-ion caps: “The first was to use the high power density to develop a high-volume capacitor for use in energy recovery, or as a back up, for automobiles and industrial machinery The other aim was to develop a low-volume capacitor, that could be used in consumer devices such as smartphones, tablets, mobile phones, digital cameras and PC’s.”

Most of the uses seen so far, according to the firm, is as back-up for rechargeable batteries, delivering high instantaneous power while the battery provides high capacity. Medical appliances is one application, where even momentary voltage drops can be critical. Automotive energy recovery is foreseen, as well as energy recovery in lifts (elevators). “In addition, lithium ion capacitors have started to be used by themselves in a stand alone role instead of rechargeable batteries in some applications,” said the firm.

Other companies making lithium ion capacitors:

  • JM Energy
  • Vinatech
  • JSR Micro
