Passive Plus Introduces Broadband Capacitors for Signal Integrity Market

21.12.2018
Reading Time: 1 min read
A A

Source: Passive Plus news

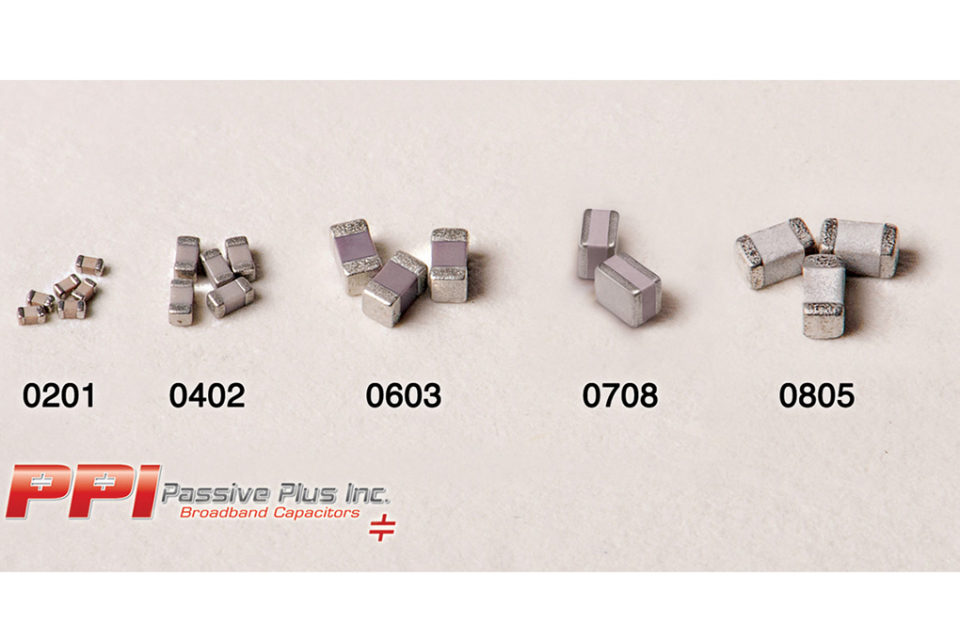

Passive Plus, Inc. (PPI) has developed a series of Broadband Capacitors available in 4 different case sizes: 01005BB, 0201BB, 0402BB, and 0805BB. Values available are 10nF (10,000 pF) and 100nF (100,000 pF).

RelatedPosts

Würth Elektronik Releases Long Life SMT nano and microSD Card Connectors

Glass Core Technology Breakthrough Potential for High-Speed Interconnects

YAGEO Releases High Isolation Transformer for 1500VDC Applications

These capacitors are intended primarily for coupling RF signals or, occasionally, for bypassing them to ground, while blocking DC. The applications for which they are intended require small, surface-mountable devices that provide low RF impedances, i.e., low insertion losses and reflections, across extremely large RF bandwidths and temperatures typically ranging from -55 to +125° C.

Applications for the Broadband series are primarily found in the “signal integrity” market:

  • Optoelectronics/highspeed data
  • ROSA/TOSA (Transmit/Receive optical subassemblies)
  • SONET (Synchronous Optical Networks)
  • Broadband test equipment
  • Broadband microwave and millimeter wave amplifiers and oscillators

Customers requiring surface-mountable, 10nF or 100nF capacitors that provide resonance-free, low insertion loss, low reflection operation over extremely large RF bandwidths will be well served by PPI’s Broadband series.

Parameters:

01005BB104MW4R0 (.010” x .005”):
* Frequency range: 16 kHz (- 3 dB point) to > 67 GHz
* 4 WVDC
* Insertion Loss: < 1 dB, typical
* Available in Tin RoHS

0201BB104KW160 (.020” x .010”):
* Frequency range: 16 kHz (- 3 dB point) to > 40 GHz
* 16 WVDC
* Insertion Loss: < 1 dB, typical
* Available in RoHS Tin, Tin/Lead, and Gold terminations

0402BB104KW500 (.040” x .020”):
* Frequency range:16 kHz (-3 dB point) to 50 GHz
* 50 WVDC
* Insertion Loss: < 1.2 dB, typical
* Available in RoHS Tin, Tin/Lead, and Gold terminations

0805BB103KW101 (.080” x .050”):
* Frequency range: 160 kHz (-3 dB point) to 3 GHz
* 100 WVDC
* Insertion Loss: < 0.25 dB, typical
* Available in RoHS Tin and Tin/Lead terminations
