Schurter fuse for high inrush currents

22.11.2018
Reading Time: 1 min read
A A

Source: Schurter news

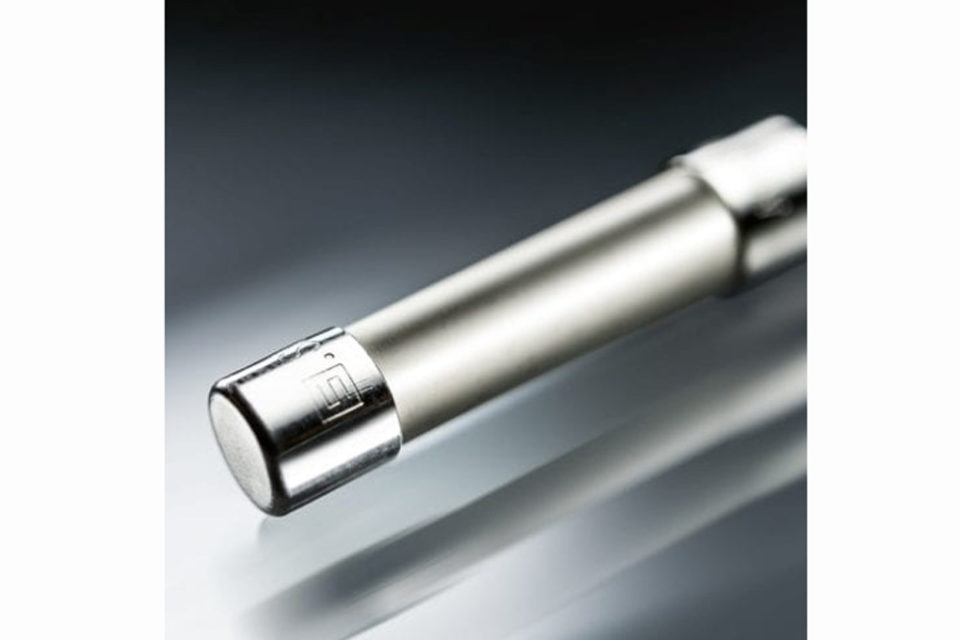

With the SUT-H, SCHURTER introduces a new 6.3×32 mm ceramic fuse for single-phase applications for high rated currents from 10 A to 50 A. Thanks to a particularly high melting integral, it is particularly suitable for applications in which high inrush currents occur.

RelatedPosts

Optimizing Tantalum Capacitor Manufacturing Through Yield Strength and Plasticity Analysis in Welding Processes

Researchers Present New Record Energy Storage Carbon Material for Supercapacitors

Q Factor Modelling; How Poles and Zeros Relate to Q Factor

The new SCHURTER SUT-H is technically based on the proven SUT. In contrast to the known fuse, the SUT-H has a much higher melting integral, which makes it particularly pulse resistant. High inrush currents, such as occur in power supply units, are therefore resisted without complaint.

The fuse is offered for direct mounting on the PCB with pigtails or with a solid beryllium-copper clip (SCHURTER CQP), which allows an easy replacement of the fuse without soldering. The clip can be operated up to 30 A, which is much more than a standard tinned clip, which can normally only be used up to a rated current of 10 A.

The new 6.3×32 mm SUT-H ceramic fuse opens up completely new areas of application by extending the rated current range up to 50 A and improving the release characteristics.

The fuse meets the requirements of the UL 248-14 standard, is cURus approved and RoHS compliant. The SUT-H is developed and manufactured by Chi Lick SCHURTER in China.

Unique Performance

  • High I²t at high breaking capacity rating
  • Current Range up to 50 A
