View All Result

Thales Alenia Space Passive Components Roadmap 2018

19.12.2018
4 min read
0 0
Thales Alenia Space Passive Components Roadmap 2018
0
SHARES
21
VIEWS

source: Thales Alenia Space ; ESA SPCD 2018 Symposium

EPCI e-symposium library article

Thales Alenia Space presented its passive component roadmap during the ESA SPCD 2018 symposium at ESA ESTEC

published by EPCI under approval of ESA SPCD 2018 organizing committee.

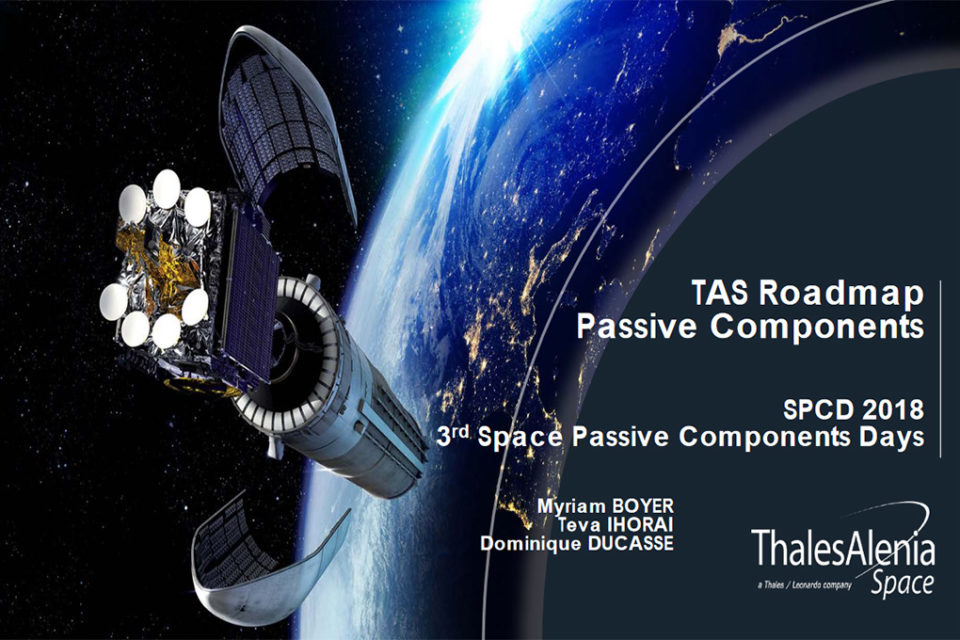

Title: TAS Roadmap Passive Components
Author(s): Myriam Boyer (1), Teva Ihorai (1), Dominique Ducasse (1)
Organisation(s): (1) Thales Alenia Space, 26 Avenue Jean François Champollion, 31100 Toulouse, France
Symposium: ESA SPCD 2018
Reference: Technology Roadmaps.
ISBN: N/A
e-Sessions Applications: Aerospace
e-Sessions Scope Components: Capacitors, Resistors, Inductors, RF passives
e-Sessions Topics: Roadmaps


Common requirements for passive parts

Main requirements coming from Equipment & Payload Road Map:

  • Equipment/ Payload/ design flexibility
  • Higher density & integrated solutions
  • Increase of dissipated power & operating temperature
  • Cost & lead time reductions
  • To promote collaboration with European Suppliers

Capacitors & Resistors

2019 – 2020

  • Chip size reduction0302 / 0402
  • New technology on Board or Hybrid Line
  • Polymer Tantalum (SnPb or Gold terminations)
  • Grade 2 / COTS introduction :
    ⇒Known space manufacturers : lighten
    ⇒Automotive suppliers : Evaluation / JD Construction
  • Upgrading solutions analyzed
  • Introduction of COTS solutions for specific applications

Higher density & more integrated solutions needed towards:

2021 – 2023

  • Chip size reduction to 0201
  • Automatic Process suitable with Pure Tin Terminations components
  • Extended Temperature range to 175°C
  • Miniaturize actual Film / Tantalum capacitors
  • Extend Rated power on resistors with smaller size
  • Components Cohabitation = COTS / Grade 1

Magnetics

2019 – 2020

  • Components designed to be flexible with stable performances
  • Components designed to be compliant with automatic assembly processes
  • Magnetics solutions with small tuning operation time and wide range of customization (planar, RM, toroid…)
  • Standard series with limited range of customization
  • SMD solutions preferred / small size / reduced manufacturing lead time
  • Introduction of COTS solutions for specific applications

Increase of dissipated power & operating temperature, higher density & more integrated solutions, cost & LT reduction needed towards:

2021 – 2023

  • Magnetics with no tuning operation
  • Standard series with wide range of customization
  • New materials compliant to operating temperature (core, ferrite, coil former, glue resin…)
  • Cost and manufacturing lead time optimization

Crystals & Oscillators

2019 -2020

  • Components designed to have a high frequencystability
  • Components designed to be compliant with Space environment:
    • Vacuum
    • Mechanical environment
    • Thermal environment
  • OCXO :
    • Low phase noise
    • Very high stability Vs environment
    • Rad. Tolerant
  • XO :
    • Precision
    • Jitter
    • Good stability Vs environment
    • Rad. Tolerant
  • Crystal resonators:
    • Aging +-0.5ppm
    • Frequency stability
    • Mounting automation
    • Introduction of COTS solutions for specific applications ?

Increase of performances (phase noise, jitter, ageing precision), higher density & more integrated solutions, cost & LT reduction needed towards:

2021 – 2023

Continuous improvement regarding:

  • Performances
  • Harsh environment
  • Radiation
  • Size reduction
  • Cost reduction
  • Mounting automation

Connectors

2019 -2020

  • High densitysolutions
  • Reliable interconnection solutions
  • High performances
  • Connectors with SMD terminations
  • Interposer solutions with solder-less terminations (spring probe) for board to board applications
  • High data rate connectors

Modular/Flexible Power -Signal connectors, Fast locking & plugging solutions (Cost reductions), Solder-less solutions, connectors easy to mount and to repair at unit level needs towards:

2021 -2023

  • Interposer solutions (RF application up to 20GHz)
  • Connectors with Press fit terminations
  • Connectors board to unit/device to board with solder-less terminations (spring probe)
  • Optical solutions for very high speed flow of data
  • Introduction of COTS solutions for specific applications

RF Passive Components

2019 -2020

  • Components designed to be Glitch free
  • Components designed to achieve a Shielding effectiveness of 75dBi
  • 2.4 connectors (up to 50GHz)
  • High power TNC connectors (300W/C band)
  • SMP-Lock connectors (DC–22GHz)
  • RF Passive components with SMP-L connectors (DC–22GHz)
  • High power coaxial ISO(360W/L&S band)
  • Power dividers with integrated ISO(X & Ku band)

Increase of Frequency at Payload and Equipment level, Fast locking & Integrated solutions needs towards:

2021 -2023

  • Surface mount ISO/CIRC (X & Ku band)
  • Increase of Power at Payload and Equipment level
  • 1.85 connectors (up to 65GHz)
  • High power connectors (L,S & C band)
  • SMP-Lock connectors (DC–32GHz)
  • RF Passive components with SMP-L connectors (DC–32GHz)
  • High power coaxial ISO (L,S & C band)
  • Power dividers with integrated ISO (Ka band)
  • Surface mount ISO/CIRC (Ka band)
  • Surface mount Switches

see the presentation linkhere:










Previous Post

Miniaturization and Advances of Bulk Head Mounted EMI Filters

Next Post

Advances in Wet Tantalum Capacitor Technology

Related Posts

Introducing AVX SuperCapacitor Technology
Capacitor videos

Introducing AVX SuperCapacitor Technology

6.12.2019
5
Skeleton Releases UL-Certified Ultracapacitors Launched for Warehouse Robotics and Smart Factories
Automotive

Skeleton Releases UL-Certified Ultracapacitors Launched for Warehouse Robotics and Smart Factories

6.12.2019
3
Acquisition Strategies in the Passive Components Industry
Capacitors

Acquisition Strategies in the Passive Components Industry

5.12.2019
42
Next Post
Advances in Wet Tantalum Capacitor Technology

Advances in Wet Tantalum Capacitor Technology

Anomalous Transients in Chip Polymer Tantalum Capacitors

Anomalous Transients in Chip Polymer Tantalum Capacitors

Modelithics Partners with ANSYS to Accelerate Creation of Complex Wireless Communication Systems for 5G and the IIoT/Industry 4.0

Modelithics Partners with ANSYS to Accelerate Creation of Complex Wireless Communication Systems for 5G and the IIoT/Industry 4.0

Newsletter

Get Latest News Straight Into Your email !
Weekly or Monthly Newsletter of Your Choice:

SUBSCRIBE

Popular News

  • What is a Dielectric Constant of Plastic Materials ?

    What is a Dielectric Constant of Plastic Materials ?

    3 shares
    Share 3 Tweet 0
  • Capacitor Selection for Coupling and Decoupling Applications

    21 shares
    Share 17 Tweet 0
  • Ripple Current and its Effects on the Performance of Capacitors

    4 shares
    Share 3 Tweet 0
  • Leakage current characteristics of capacitors

    0 shares
    Share 0 Tweet 0
  • The Basics & Benefits of Tantalum & Ceramic Capacitors

    1 shares
    Share 0 Tweet 0

Support Us

We do not like disturbing pop-ups and advertisements.
Is this site useful ? You can support us here:

SUPPORT US

Passive Components Blog

© 2019 EPCI - Premium Passive Components Educational and Information Site

Navigate Site

  • Home
  • ABC of CLR
  • PCNS
  • Privacy Policy
  • Support Us
  • About

Follow Us

No Result
View All Result
  • Home
  • News

© 2019 EPCI - Premium Passive Components Educational and Information Site

Login to your account below

Forgotten Password?

Fill the forms bellow to register

All fields are required. Log In

Retrieve your password

Please enter your username or email address to reset your password.

Log In
This website uses cookies. By continuing to use this website you are giving consent to cookies being used. Visit our Privacy and Cookie Policy.
