Samsung Electro-Mechanics has launched a new automotive grade 100nF 250V 0805 MLCC ideal for the MHEV (Mild Hybrid Electric Vehicle) and HEV (Hybrid Electric Vehicle) Inverter markets.
The new MLCC ceramic capacitor CL21Z104KEY6PJ# in 0805 inch [2.0 × 1.2mm] case, X7T temperature dielectric class [–55 to 125 °C] provides capacitance of 100nF at 250V voltage ratings.
As the requirements regarding the reliability and stability for automotive electronics systems increase, so do the demands for high-reliability MLCCs which support a stable operation even in high-temperature and high-voltage environments.
This product meets AEC-Q200 standards and contributes to an enhanced system reliability.

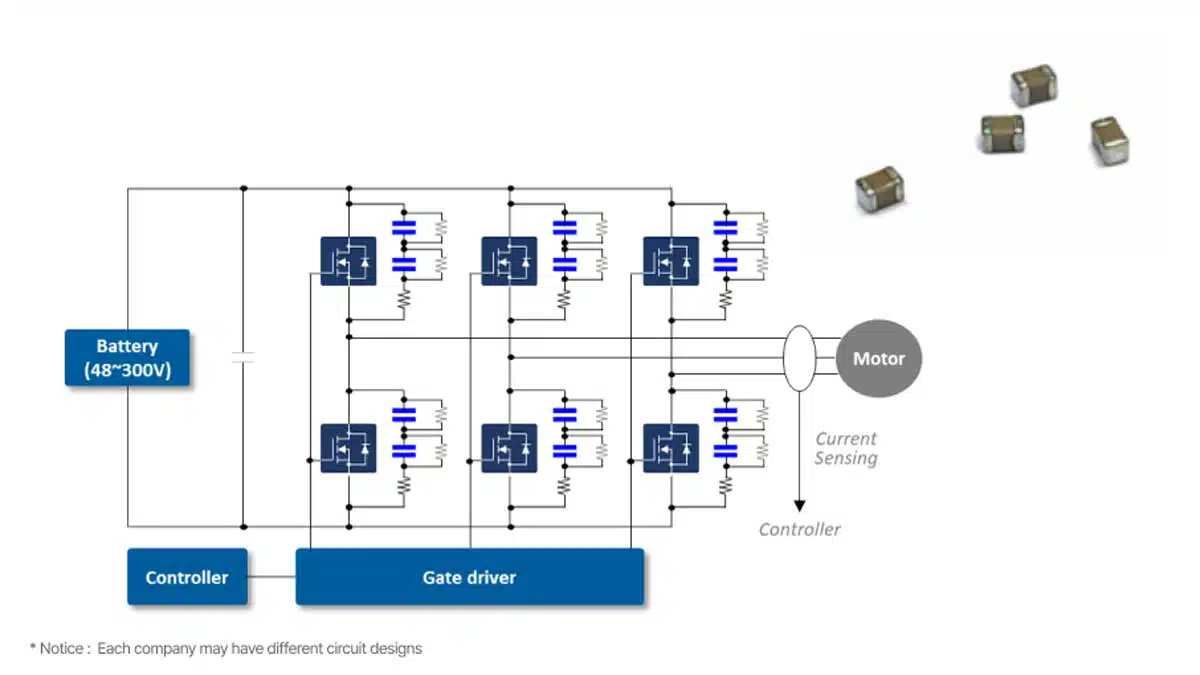

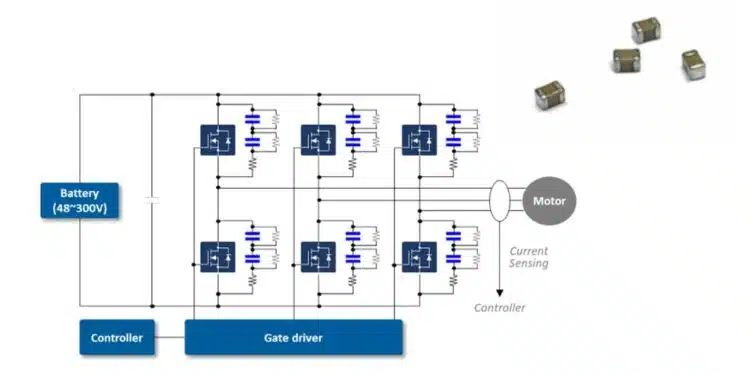

Application Guide > Automotive > Inverter(MHEV, HEV)
The usage of snubber capacitors for the suppression of transients and the mitigation of EMI was once optional under high-speed, high-voltage power-electronics systems.
However, it is now shifting into a necessity. In response, we are expanding and supplying our line-up of 0805 inch, 250 V, X7* products, which enable an efficient control of transient responses and contribute to the miniaturization of the sets.
MLCC Trend : EMI Suppression, Voltage Stability
- Mid Voltage
- Crack Mitigation
- Temperature Class Recommendation : X7* – PJ Series
| Size(inch/mm) | Rated Voltage | TCC | Capacitance | Part Number |
|---|---|---|---|---|
| 0805/2012 | 250 | X7T | 100nF | CL21Z104KEY6PJ# |
| 0805/2012 | 250 | X7R | 22nF | CL21B223KEY6PN# |
| 0805/2012 | 250 | X7R | 15nF | CL21B153KEFXPN# |
| 0805/2012 | 250 | X7R | 10nF | CL21B103KEFXPN# |
