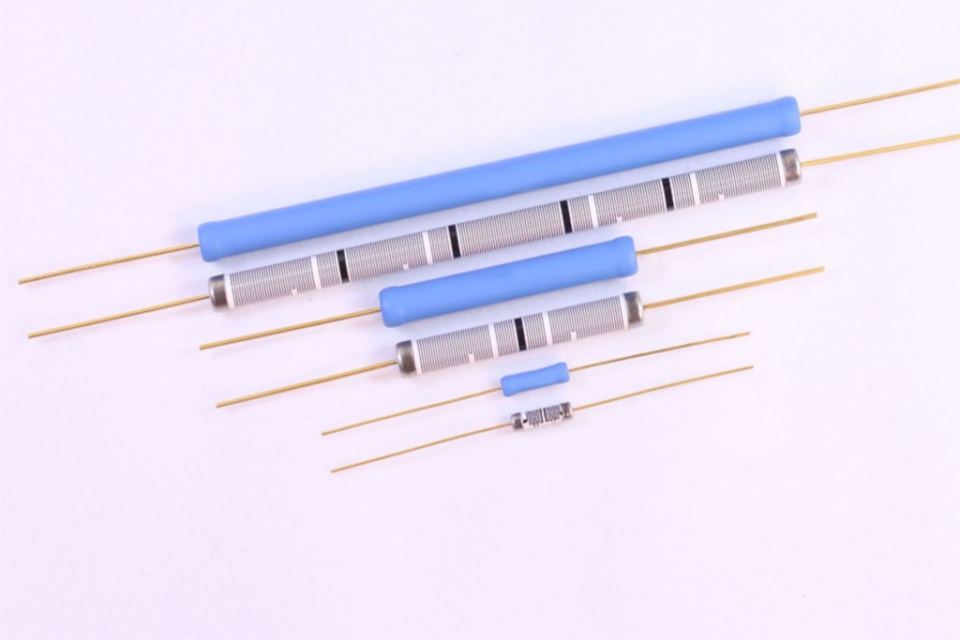

Stackpole axial leaded resistors designed for high voltage handling

16.3.2018
Reading Time: 1 min read
A A

source: Stackpole news

Stackpole has announced the release of the HVAM Series, an axial leaded series of precision resistors designed for high voltage handling and high resistance values. The HVAM offers resistance values from 500K ohms to 10G ohms depending on size and tolerance.

RelatedPosts

Military and Aerospace Interconnect Design: Key Trade-offs

Samsung Introduces 630V X7T Molded Frame Capacitor for Automotive

Exxelia Presents Disc Capacitors and Integrated Magnetics for Space

The proprietary fine film of the HVAM enables tolerances down to 0.1% and TCR as low as ±50 ppm while offering high voltage ratings as follows:

HVAM20 2W power rating at up to 15KV
HVAM36 3.6W power rating at up to 15KV
HVAM50 5W power rating at up to 20KV
HVAM75 7.5W power rating at up to 30KV
HVAM100 10W power rating at up to 50KV

The precision high voltage HVAM is a suitable choice for a wide range of medical applications, circuit protection, voltage dividers, welding and plasma cutting equipment, and high voltage power supplies.

Pricing for the HVAM depends on size, resistance value, tolerance, and TCR.
