Common Mistakes in Flyback Transformer Specs

15.8.2025
Reading Time: 5 mins read
A A

In this session, Marcos Luna, experienced power electronics engineer at Frenetic, broke down the most frequent (and costly) mistakes in flyback converter and flyback transformer design – and how to avoid them.

Key topics covered:

RelatedPosts

Transformer Losses and Thermal Design: Modelling and Validation

5 kW 800 V-to-50 V PSFB Transformer Design for Data Centers

Designing a USB Type‑C Flyback Planar Transformer with Frenetic’s Planar Tool

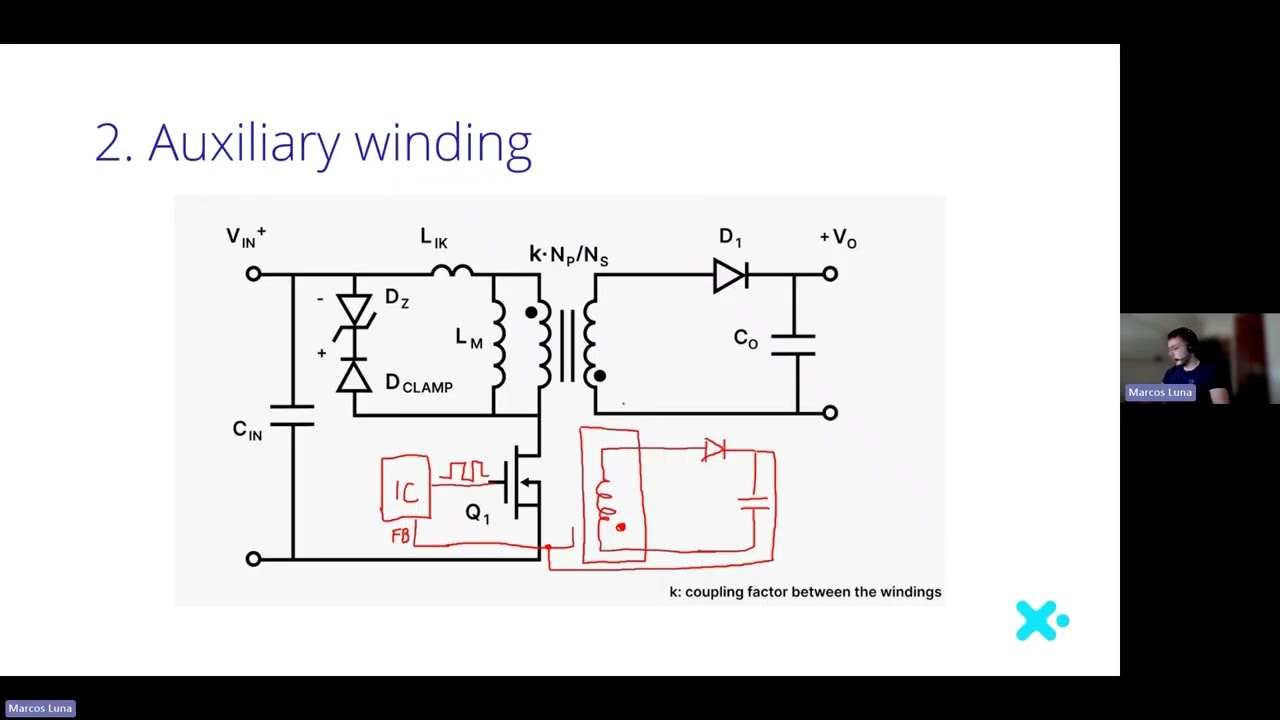

  • Why the auxiliary winding is more important than it seems
  • How parasitic effects can quietly ruin your specs
  • The impact of leakage inductance on output voltage and regulation
  • Sandwich interleaving and its influence on coupling and EMI
  • Most used core shapes for low-power flybacks
  • Special considerations when designing with toroid cores

Try Frenetic AI + Simulator for free: https://app.frenetic.ai/

other reference:

  • Flyback Converter Design and Calculation
  • Understanding Flyback Transformer

Design and Optimization of Flyback Converters: Common Mistakes and Best Practices

This presentation explores the design intricacies and optimization techniques related to flyback converters, focusing on common mistakes encountered by engineers, including auxiliary winding placement, parasitic effects, and core shape selection. Practical insights derived from real-world case studies and simulations using Frenetic AI and Frenetic Magnetic Simulator are discussed.

Introduction

Flyback converters are extensively utilized due to their simplicity and cost-effectiveness. They are common in applications such as laptop chargers and mobile power supplies. Despite their advantages, flyback converters present unique design challenges, particularly concerning transformer design, efficiency optimization, and parasitic management.

Fundamental Concepts of Flyback Converters

Flyback converters operate based on energy storage in magnetic components, functioning as a coupled inductor rather than a traditional transformer. Key components include:

  • Primary and Secondary Windings: Energy is transferred via magnetic coupling.
  • Auxiliary Windings: Used for feedback control and biasing the IC controller.
  • PWM Control: Determines duty cycle and influences performance.

Common Design Mistakes

Auxiliary Winding Placement

Improper placement of auxiliary windings can lead to significant leakage inductance, affecting regulation accuracy and inducing parasitic effects. Design recommendations include:

  • Primary-Side Placement: Position auxiliary windings close to primary windings to enhance coupling.
  • Secondary-Side Placement: If required, place auxiliary windings near secondary windings but away from primary circuits.

Neglecting Parasitic Elements

Parasitics such as leakage inductance, inter-winding capacitance, and MOSFET output capacitance significantly impact converter performance. Simulation results highlight:

  • Leakage Inductance Issues: High leakage can cause voltage spikes and inefficient regulation.
  • Capacitive Effects: Intra and inter-winding capacitances influence switching behavior.
  • Core Losses: Ignoring core parasitic resistance can lead to inaccurate performance predictions.

Simulation and Modeling Techniques

Using Frenetic AI and Frenetic Magnetic Simulator, various configurations were analyzed:

  • Leakage Inductance Reduction: Adjusting winding placements reduced leakage from 125 µH to 67 µH in sample designs.
  • Parasitic Modeling: Inclusion of parasitic resistors and capacitors provided more accurate voltage spike predictions.

Core Shape Considerations

Core shape selection influences thermal performance, efficiency, and manufacturability:

  • Typical Shapes: EFD, RM, and EP cores are preferred for compact, low-power designs.
  • Toroidal Cores: Require twisted winding techniques to maintain proper isolation and coupling.

Optimizing Snubber Circuits

When leakage inductance cannot be minimized further, snubber circuits are essential to dampen voltage spikes. Design steps include:

  • Simulation-Based Adjustments: Utilizing LTSpice and Frenetic tools to fine-tune snubber values.
  • Component Stress Analysis: Evaluating power loss and current flow in snubber components.

Conclusion

Successful flyback converter design requires meticulous attention to auxiliary winding placement, parasitic element modeling, and core shape selection. Simulation tools like Frenetic AI enhance the design process by identifying potential pitfalls early.

Related
