3-terminal Capacitor Benefits to Suppress EMI Noise

19.4.2024
Reading Time: 6 mins read
A A

This article is based on Murata application note on 3-terminal capacitor use to suppress EMI radiated emission noise and improve conducted immunity.

Noise-control techniques are becoming increasingly important due to high-speed operation of ICs and electrification of automobiles. This application note introduces examples of using the 3-terminal ceramic capacitor as a filter (feed-through connection) for radiated emission and conducted immunity.

RelatedPosts

Murata Unveils Isolated DC-DC for SiC Gate Drives

Murata RF Switch Connectors Cut PCB Test-Point Area

Murata World First 008004 NTC Thermistors for Temperature Sensing

Radiated Emission

In the recent years, the switching frequency of DC/DC converters has increased due to the demand for miniaturization of circuits, and their harmonic noise tend to exist up to high frequencies.
In addition, the resonance due to parasitic inductance and floating capacitance of IC and PCB generates high level noise at high frequency. As a countermeasure, this note introduces examples in which the 3-terminal capacitor is used at output line or input line of a DC/DC converter.

For information on “through” and “non-through” connection, please see Murata paper: Basics of Noise CountermeasuresLesson 11 Notes on the Use of Chip 3-Terminal Capacitors | Murata Manufacturing Articles (murata.com)

The 3-terminal capacitor (Through connection) at DC/DC converter Output-line

We compared noise reduction effect of a standard 2-terminal MLCC ceramic capacitor and a 3-terminal low-ESL capacitor. First, we show the frequency characteristics of the two insertion losses in Fig.1. It can be seen that the 3 terminal capacitor has an excellent filter effect of about 20dB in the region of 10 MHz or more.

The DC/DC output voltage may have ripples and sharp spike noise as shown in the Fig. 2. below. Then, a 3-terminal capacitor instead of a 2-terminal MLCC can greatly reduce spike noise.

Fig.1. Insertion loss frequency characteristics for 2-terminal and 3-terminal ceramic capacitors
Fig.2. DC/DC convertor output voltage waveformfor 2-terminal and 3-terminal ceramic capacitors

Next, the radiation noise measurement result (CISPR32/3m) is shown below in Fig.4. By using the 3-terminal low-ESL capacitor, we were able to confirm that the noise reduction was more than 15dB compared with the 2-terminal MLCC.

Fig.3. 2-terminal MLCC vs 3-terminal capacitor circuit schematic
Fig.4. Radiated Emission EMI Noise Level (CISPR32 3m) 2-terminal vs 3-terminal capacitor comparison

The 3-terminal capacitor (Through connection) at DC/DC converter Input-line. (for in-vehicle devices)

DC/DC converters generate large noise not only at output line but also at input line. We arranged “No Filter”, “pi-type filter” and “3-terminal capacitor” at the input power line of the DC/DC used in the on-board equipment, and compared the radiated emission noise of these 3 patterns. As you can see the results in Fig. 5. and 6., 1 element of a 3-terminal capacitor has the same noise reduction effect as a π-type filter (3 elements), which reduces the number of components.

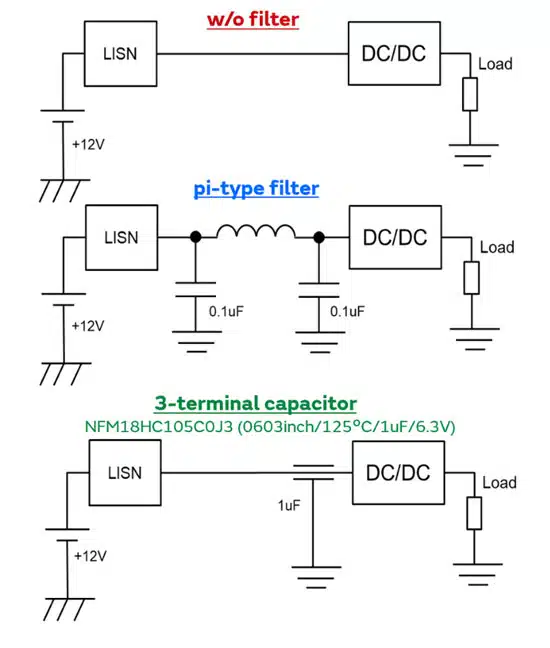

Fig. 5. pi-type filter vs 3-terminal capacitor

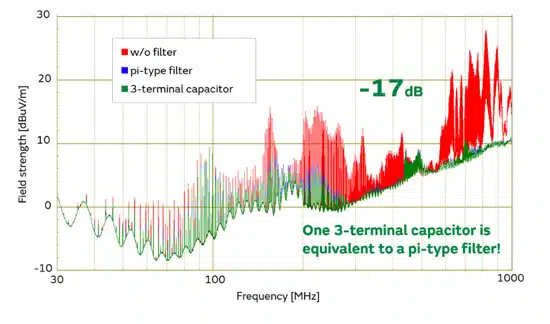

Fig. 6. pi-type filter vs 3-terminal capacitor Radiated Emission EMI Noise Level (CISPR25 ALSE) comparison

Conducted Immunity

3-terminal capacitors can also be used for conducted immunity. In the DPI test (IEC62132-4) which is the immunity evaluation test for semiconductors, we used the 3-terminal capacitor (through connection) at the MCU power line as shown in Fig.7. By using the 3-terminal capacitor, NG results improved to OK.

Fig.7. DPI test condition for conducted immunity measurement
Fig. 8. Conducted immunity measurement DPI Test Results

Conclusion

This article introduced the noise reduction effect of a 3-terminal capacitor (feed-through connection) featuring low ESL.

We presented the results of radiation emission and conduction immunity tests of DC/DC converters. In addition, it can be used to prevent conducted emissions and self-poisoning in electronic devices.
It can be used not only to add 3-terminal capacitors to electronic circuits, but also to replace 2-terminal MLCCs and filters currently in use.

Please consider using a 3-terminal capacitor as one of the solutions for noise control.
