CDE introduces DC Link Capacitor Modules for Large Inverter Systems

14.11.2018
Reading Time: 1 min read
A A

Source: CDE news

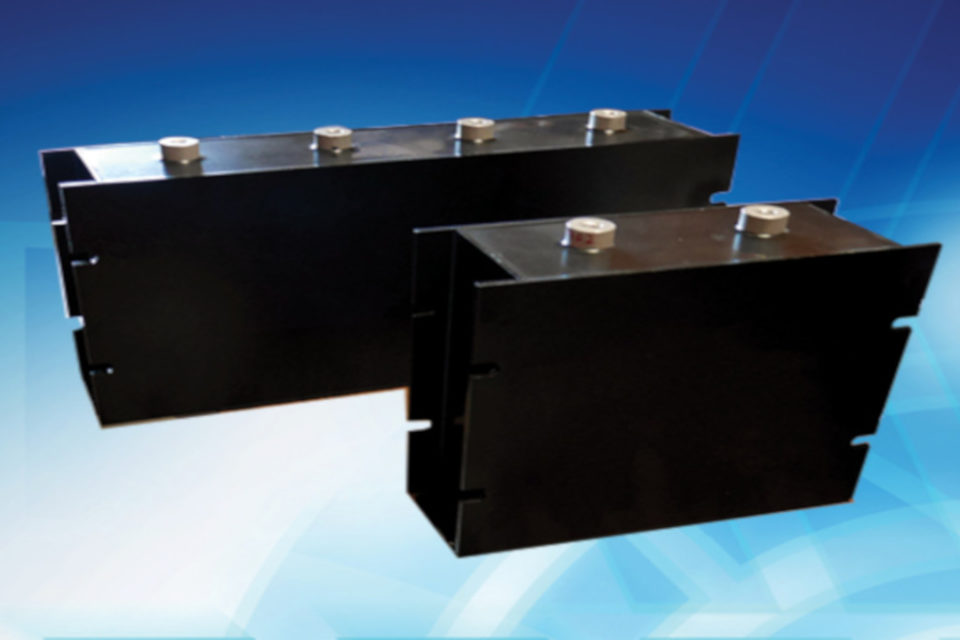

Cornell Dubilier has announced a new series of DC link polypropylene film capacitor modules aimed at high-power inverters. The MDL series offers capacitance values ranging from 600 µF to 4,200 µF, with applied voltages of 900 Vdc to 1,300 Vdc.

RelatedPosts

Miba Unveils 55 W SMD Thick-Film Power Resistor in TO-263

CapXon Extends Polymer and SMD Aluminum Capacitors

YAGEO Expands VW80808 Automotive MLCCs with X8R, X8G and C0G

Designed as an alternative to banks of cylindrical bus-mounted capacitors, these modules have higher energy density and simplify bus connections by reducing the number of terminations. By using a single DC Link capacitor in a compact rectangular package, smaller inverter topologies are possible. The use of one capacitor versus several parallel-banked capacitors typically results in enhanced system reliability with lower assembly costs. The MDL series also features long life, meeting a 5,000 hour life test at rated voltage, with a core temperature of 85°C. This translates to a life of 200,000 hours when operated at a 60 °C ambient at full rated voltage and ripple current.

The MDL series is based on CDE’s well proven DC Link film technology utilizing low-loss, high-grade polypropylene dielectric. Featuring current ratings up to 400 Arms these modules are well suited for high-power inverters used in commercial and utility-scale wind, solar and fuel cell systems. Other applications include UPS, switching power supplies and large motor drives.

The series consists of 12 values in 4 case sizes, is RoHS compliant, and meets IEC 61071 and UL94V-0. Each unit passes through CDE’s industry-leading 100% burn-in testing.
