PPI MLCC Capacitors with Increased Operating Temperature

6.9.2018
Reading Time: 1 min read
A A

Source: PPI news

Huntington, New York – September 2018. PPI increased operating temperature of its MLCC capacitors to 200°C.

RelatedPosts

Bourns Release Automotive 4-Terminal Shunt Resistors

Bourns Releases High Inductance Common Mode Choke

Vishay Releases Automotive TO-220 Case 50W Thick Film Power Resistor

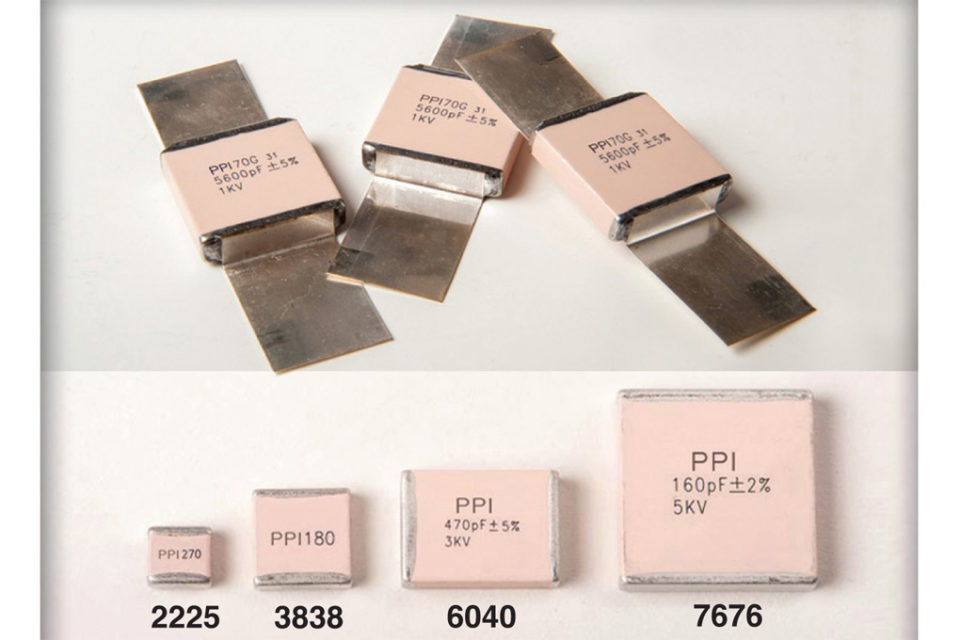

PPI offers traditional Hi-Q, Low ESR, Multilayer Ceramic Capacitors. The 2225C/P (.220″ x .250″) and 3838C/P (.380″ x .380″) case size capacitors have an increased Operating Temperature qualified to 200°C.

These capacitors exhibit Low ESR/ESL, Low Noise, High RF Power, High Self-Resonance, as well as ultra-stable performance over temperature and available in NP0 dielectrics & P90.

Typical Functional Applications: Bypass, Coupling, Tuning, Impedance Matching and D.C. Blocking. Typical Circuit Applications: UHF/VHF RF Power Amplifiers, Antenna Tuning, Plasma Chambers and Medical.

Available with Magnetic, or Non-Magnetic terminations.

2225C/P series:                              3838C/P series:

Value Range: 0.5pF – 2700pF             Value Range: 0.5pF – 5100pF

Size: .220″ x .250″                            Size: .380” x .380”

WVDC: 2500V                                   WVDC: 3600V

Extended WVDC: 3600V                  Extended WVDC: 7200V

TCC:                                                 TCC:

C: 0±30 PPM/°C (-55°C±200°C)         C: 0±30 PPM/°C (-55°C±200°C)

P: 90±20 PPM/°C (-55°C±200°C)        P: 90±20 PPM/°C (-55°C±200°C)

2225C/P and 3838C/P Series capacitors can also be incorporated into Custom Assemblies for these types of applications. All assembly components receive 100% Partial Discharge and 100% Sonoscan for internal defects prior to assembly. Final assemblies then receive 100-hour Military Burn-in, assuring highest quality and reliability.
