Source: Sumida news

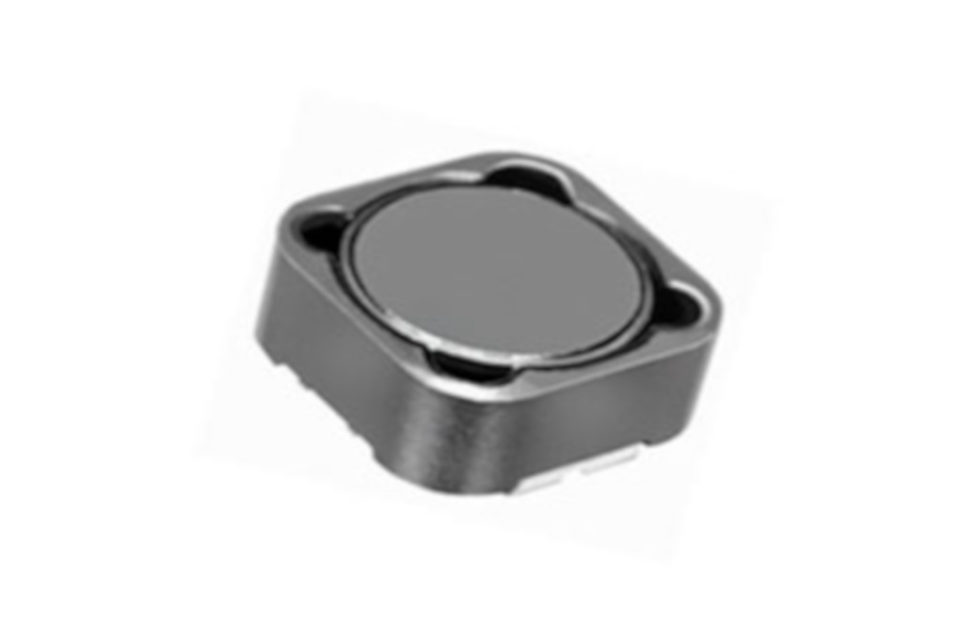

CDRCH12D78BT150 is a 2-in-1 high temperature inductor which can be used in power circuit for automotive applications. It is RoHS compliant and AEC-Q200 qualified, and ideally used in LED headlights, DC/DC converters and 1:1 Transformer, etc.
Key Features:
- Ferrite drum core construction
- Magnetically shielded
- L×W×H:12.5×12.5×8.0 mm Max.
- Operating temperature range: -40°C~+150°C (including coil’s self temperature rise)
- Inductance range: 4.7 μH to 470 μH
Applications:
- LED modules, DC/DC converters and 1:1 Transformer, etc.
Production Stage:
- In mass production
