YAGEO Offers High-Performance Diplexers for Dual-Band Wi-Fi 6E/7Integration

30.7.2025
Reading Time: 2 mins read
A A

YAGEO group introduces high-performance diplexers for dual-band Wi-Fi 6E/7 integration offering compact filtering solutions designed for modern wireless applications.

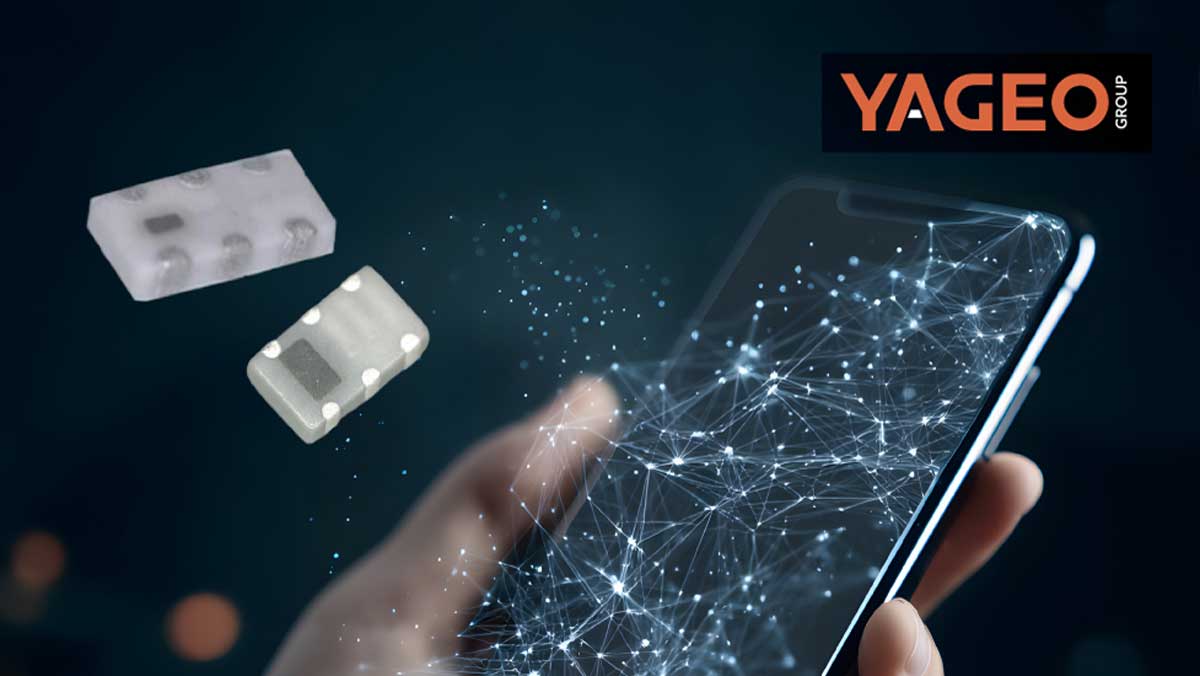

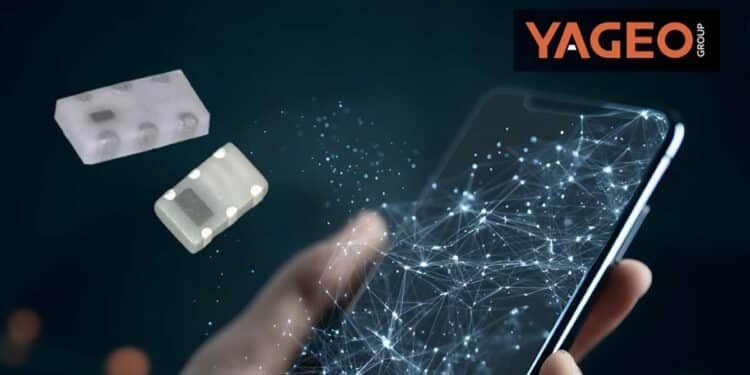

YAGEO Group announces the launch of its latest high-performance diplexers, the DPX1608LKE5R2460A and DPX2012LRGYR2558A, designed to meet the evolving demands of modern wireless devices.

RelatedPosts

YAGEO Unveils Next Gen BMS Isolation Transformers

YAGEO Releases First to Market 750V Aluminum Capacitors

YAGEO Expands One Turn Inductors for AI and High-Efficiency Power Applications

These compact, surface-mount solutions provide efficient, precise signal routing with minimal interference for dual-band Wi-Fi applications.

Engineered using advanced LTCC technology, these diplexers eliminate the need for discrete filtering components, simplifying PCB layout and streamlining RF paths across smartphones, wearables, modules, and IoT devices.

Key Features:

DPX1608LKE5R2460A

  • Ultra-Compact Design: 1608 package (1.6 x 0.8 mm)
  • Enhanced Frequency Support: Covers 2.4 GHz, 5 GHz, and 7 GHz for full Wi-Fi 6E/7 coverage
  • Outstanding Performance: Low insertion loss (0.97 dB typ. for low band; 1.0 dB typ. for high band) and 38 dB band rejection
  • High-Reliability Certification: AEC-Q200 certified for automotive and industrial use
  • Applications: Wi-Fi 6E/7 modules, IoT, wearables, infotainment, automotive

DPX2012LRGYR2558A

  • Flexible Design: 2012 package (2.0 x 1.25 mm)
  • Reliable Dual-Band Performance: 2.4 GHz and 5 GHz bands with strong isolation (≥25 dB)
  • Low Insertion Loss: ≤2.4 dB (low band), ≤1.2 dB (high band)
  • Versatile Applications: WLAN modules, consumer electronics, IoT gateways, smart home devices

Both diplexers are RoHS compliant, halogen-free, and optimized for automated pick-and-place assembly, making them ideal for high-volume production in mobile, industrial, and consumer wireless platforms.

Related

Source: YAGEO
