By C.Hammerschmidt. With the MLX92223 PCB-less 2-Wire Hall-Effect Latch, Melexis is targeting seat position detection application for the automotive industry. With its integrated passives (392Ω resistor and decoupling capacitor), the devices is compatible with industry-standard Electronic Control Units (ECUs) without the need for any additional external components.

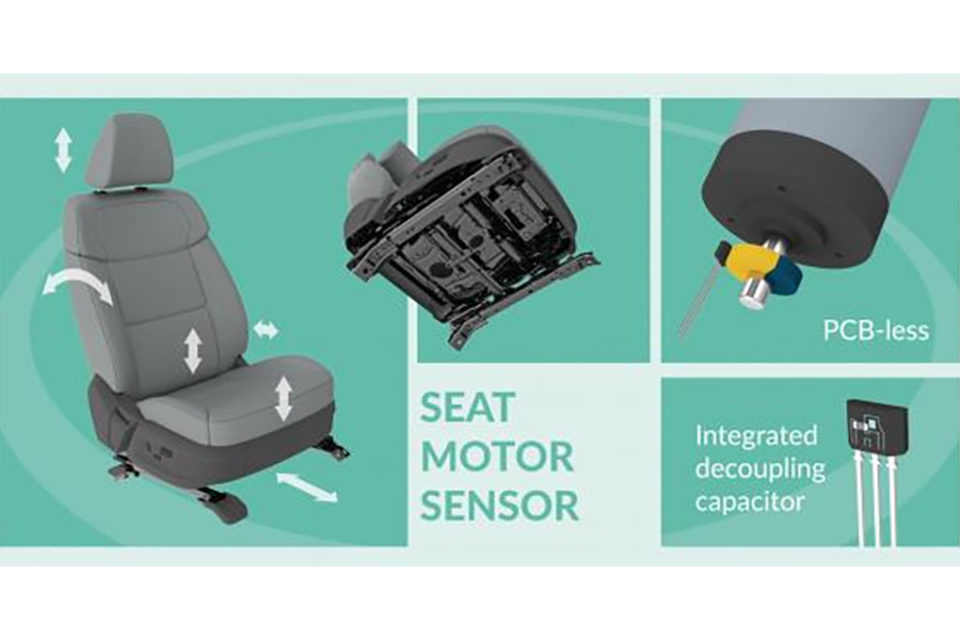

As automotive manufacturers increasingly adopt motorised seat adjustment it becomes more necessary to accurately detect the position of the seat. The MLX92223 integrates the additional passive components normally needed to interface Hall-Effect latches to ECUs. This level of integration removes the need for the sensor to be mounted on a PCB, which in turn enables smaller solutions, allowing OEMs to integrate latches and modules even where space is restricted, to further increase customer comfort and safety.
The magnetic core used by Melexis features advanced offset cancellation with a programmable temperature coefficient, allowing the MLX92223 to compensate for magnets that may exhibit variation over temperature. Integrating an emulated supply resistor means OEMs aren’t required to add an external series resistor that would normally be required, while the addition of the decoupling capacitor enables the MLX92223 to deliver superior EMC and ESD performance over its competition. The MLX92223 also includes a voltage regulator and current sink configured output. Other features include reverse supply voltage protection with advanced thermal management to limit the current if the junction temperature exceeds the protection threshold.
The MLX92223 is available in a TO-92-3L package and operates over an extended temperature range of -40°C to +150°C.
