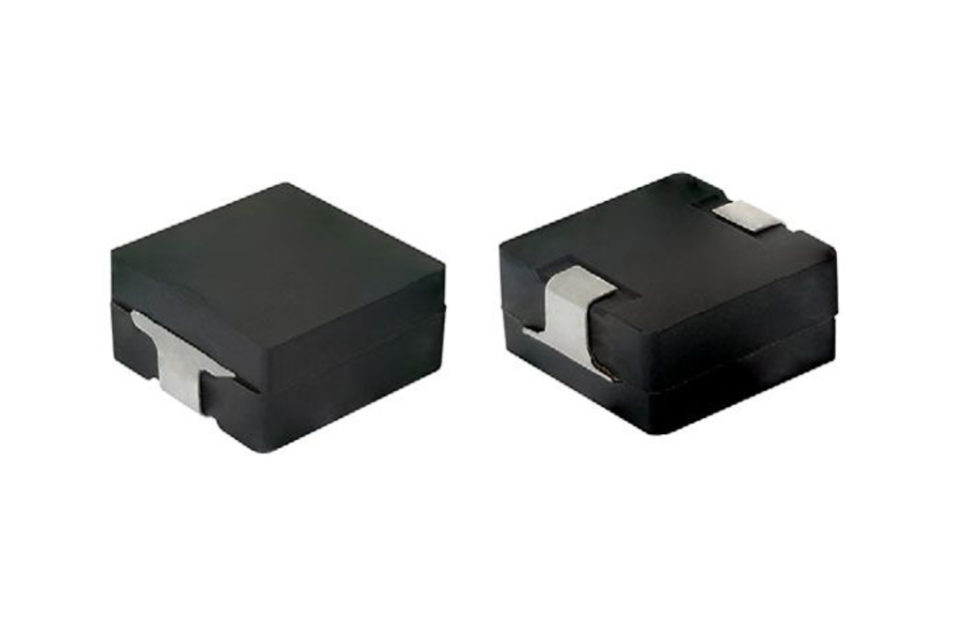

MALVERN, Pa. — April 25, 2018 — Vishay Intertechnology, Inc. (NYSE: VSH) today introduces a new series of low profile, high current IHLP® inductors that are the industry’s first to meet the requirements of MIL-STD-981 class S. Designed to provide high reliability in space-grade applications, inductors in the Vishay Custom Magnetics SGIHLP series feature a ruggedized package and perform at high operating temperatures to +180 °C.
Featuring a magnetically shielded construction, the devices released today are optimized for DC/DC converters and high current noise suppression filters in satellites and defense systems. Applications for the inductors include low profile, high current power supplies and point of load (POL) converters; “flight-ready” solar inverters; high current filters; and DC/DC converters in distributed power systems.
Offered in five case sizes, the SGIHLP series features high efficiency with typical DCR from 0.56 mW to 240 mW and a wide range of inductance values from 0.22 µH to 100 µH. Based on proven IHLP technology, the devices provide rated currents to 100 A and handle high transient current spikes without saturation. The inductors offer excellent inductance and saturation stability over the complete operating temperature range.
Device Specification Table:
| Part number | SGIHLP-24DC-8 | SGIHLP-48FA-8 | SGIHLP-60HE-8 | SGIHLP-73HF-8 | SGIHLP-97OZ-8 |
| Case size | 24DC | 48FA | 60HE | 73HF | 97OZ |
| Dimensions (mm) | 6.2 x 6.7
x 4.3 |
12.2 x 12.9
x 6.1 |
15.5 x 15.2
x 8.5 |
18.8 x 19.2 x 8.6 | 27.2 x 24.5
x 15.0 |
| Inductance (µH) | 0.22 to 15 | 0.47 to 68 | 0.22 to 22 | 0.47 to 47.0 | 0.47 to 100 |
| DCR typ. (mW) | 3.95 to 195 | 1.55 to 240 | 0.73 to 31.30 | 0.89 to 52.7 | 0.56 to 36.25 |
| DCR max. (mW) | 4.23 to 208 | 1.66 to 252 | 0.81 to 33.49 | 0.95 to 56.4 | 0.67 to 39.40 |
| Heat rating current (A) | 2.4 to 18 | 2.4 to 30 | 8.3 to 66 | 7.25 to 65.0 | 9.1 to 80 |
| Saturation current (A) | 1.6 to 11 | 3.5 to 28.5 | 5.5 to 68 | 7.0 to 76.0 | 7.0 to 100 |
| SRF typ. (MHz) | 14.1 to 190 | 4.02 to 72.1 | 6.43 to 113 | 3.72 to 52.3 | 2.01 to 47.5 |
