Coilcraft 0805HP Ceramic Chip Inductors

5.2.2019
Reading Time: 1 min read
A A

Source: Coilcraft news

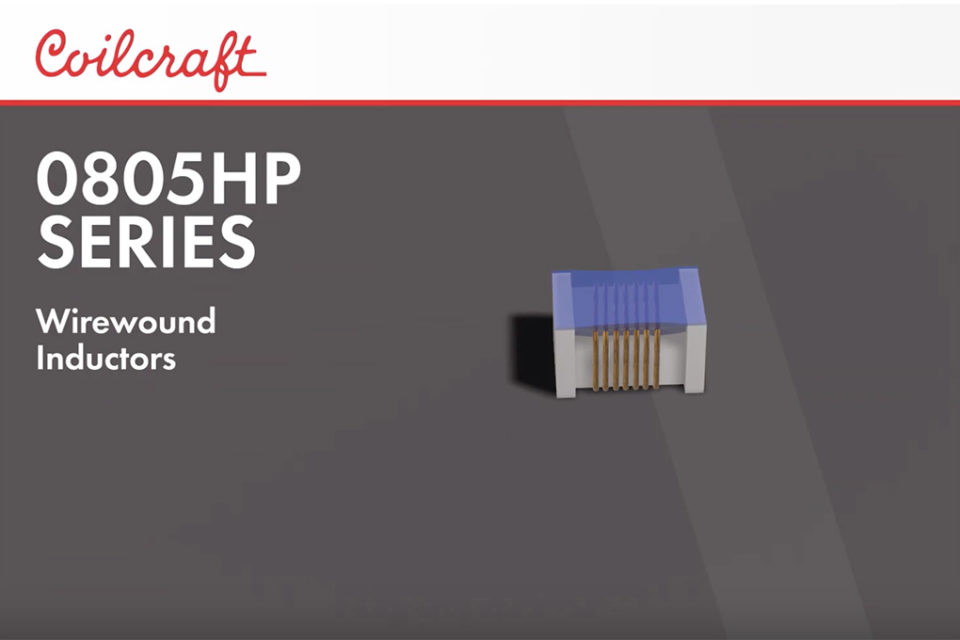

Coilcraft’s 0805HP Series ceramic wirewound chip inductors offer the industry’s highest Q factors in an 0805 size at frequencies up to 3 GHz.

RelatedPosts

SMPS Topology Selection: From Buck and Boost to Flyback and LLC

Littelfuse Introduces TVS Diodes for HVDC Protection

Wk 46 Electronics Supply Chain Digest

It is available with 23 inductance values ranging from 2.6 to 820 nH, with 2% tolerance available for most values. The 0805HP Series features a wirewound construction for highest possible self resonance – up to 9.5 GHz. It also offers significantly lower DCR (as low as 15 mΩ) than the previous generation products, making it appropriate for high current applications. To learn more, visit https://www.coilcraft.com/0805hp.cfm.

  • Highest Q factors in an 0805 form factor
  • Excellent current handling and low DCR ratings
  • Inductance values from 2.6 nH to 820 nH
  • Tight tolerances – 2% for most
  • Wirewound construction for highest possible self resonance – up to 9.5 GHz
  • RoHS compliant, halogen free 260°C compatible. Matte tin over nickel over silver-platinum-glass frit terminations
  • COTS Plus tin-silver-copper and tin-lead terminations available

Samples of all 5% or 2% values available in Coilcraft Designer’s Kit C477 and C477-2
