TDK Offers EMC High-Current Filters with Exceptional Attenuation

6.4.2023
Reading Time: 2 mins read
A A

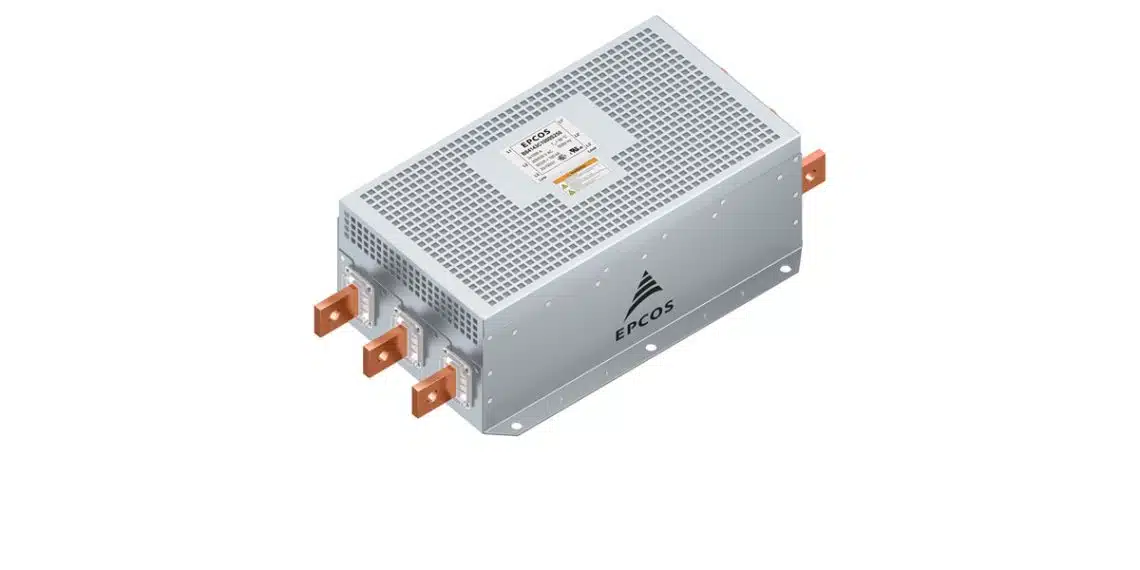

TDK offers its first range of EMC high-current filters with exceptional attenuation characteristics from 9 kHz upwards.

TDK Corporation introduces with its B84143C*S250/S251 series the new EPCOS 3-line EMC filters for converter applications with high currents. Depending on type, they are designed for rated voltages of 305/530 V AC and 440/760 V AC (50/60 Hz) at rated currents of 160 A to 2500 A.

RelatedPosts

TDK Releases Ultra-small PFC Capacitors

TDK Releases 140C Compact Vibration Robust Automotive Aluminum Capacitors

TDK Releases Low Loss Thin-Film Inductors for AI Data Centers

One particular performance characteristic is their very high attenuation figures which are achieved in the range of 9 kHz to 150 kHz. In order to meet the requirements of UL in switch cabinet construction, the complete filter series has been designed for an SCCR (Short Circuit Current Rated) value of 100 kA.

Despite the high performance the housings with degree of protection IP 00 are very compact in size. The smallest model for example measures 350 x 240 x 120 mm (L x W x H) and the biggest 710 x 365 x 257 mm. The earth leakage currents of all types are 46 mA according to IEC 60939-1:2010. Approvals under IEC 60939-3, UL 60939-3 and CSA C22.2 No.8 have been issued.

Typical applications for input filters include frequency converters for motor drives, wind turbines and power.

Features

  • Rated voltages of 305/530 V AC and 440/760 V AC (50/60 Hz)
  • Rated currents of 160 A to 2500 A
  • Very high attenuation figures ranging from 9 kHz to 150 kHz
  • SCCR value of 100 kA
  • ENEC, UL and CSA approval

Applications

  • Frequency converters for motor drives
  • Wind turbines
  • Power supplies
