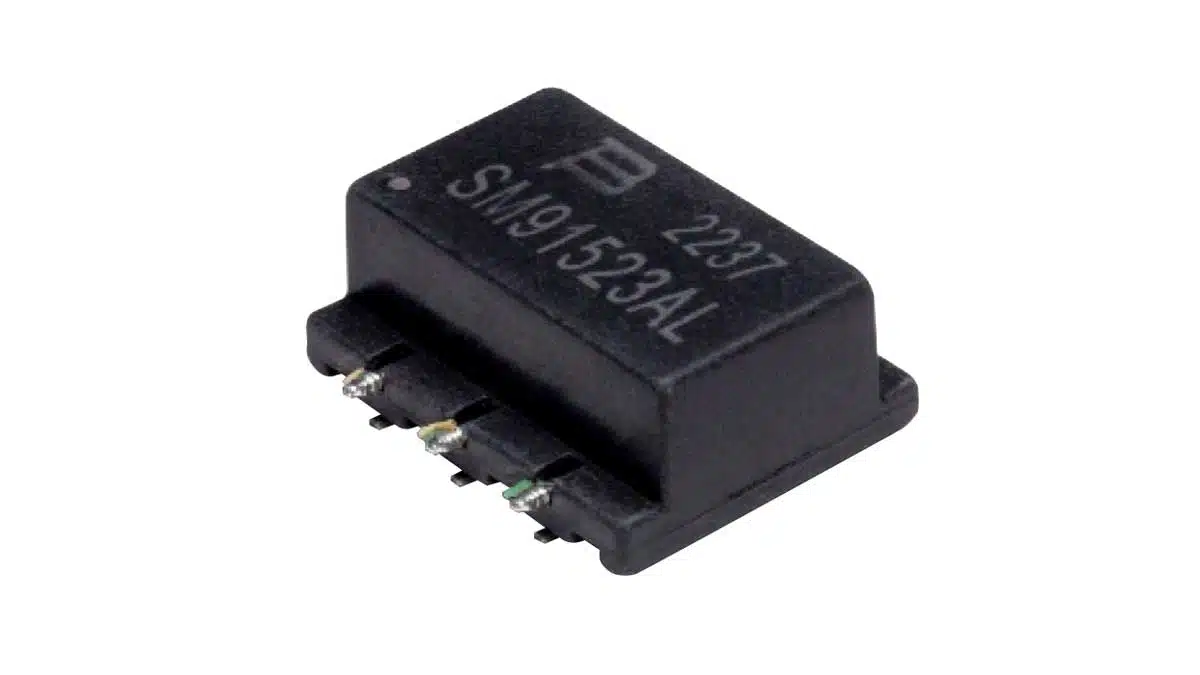

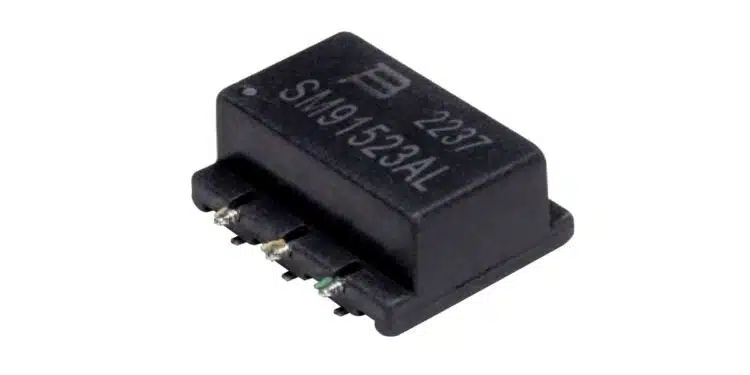

Bourns Magnetics Product Line proudly announces the launch of the Model SM91523AL, an AEC-Q200 compliant, automotive-grade Battery Management System (BMS) signal transformer.
This innovative single-channel transformer features reinforced insulation and integrated common mode chokes for enhanced noise rejection in BMS applications.
Key Features:
- Reinforced insulation compliant with IEC 62368-1
- High working voltage: Up to 1000 Vdc
- Hi-Pot isolation voltage: Up to 3500 Vac
- Extended operating temperature range: -40°C to +125°C
- Creepage distance: >11.5 mm
- Clearance distance: >10.5 mm
- Impulse voltage: 10 kV, 1.2/50 µs
- Supports serial daisy chain/IsoSPI communication
- Overvoltage Category II, pollution degree 2, material group 1
- AEC-Q200 and RoHS compliant
Applications:
- Battery Management Systems (BMS)
- Energy Storage Systems
The Model SM91523AL is optimized for compatibility with NXP Semiconductors’ NXP33771 series and Analog Devices’ Model AD1818 & LTC6804/681X series.
