Sumida Releases SMD High Current Power Inductor

6.4.2023
Reading Time: 2 mins read
A A

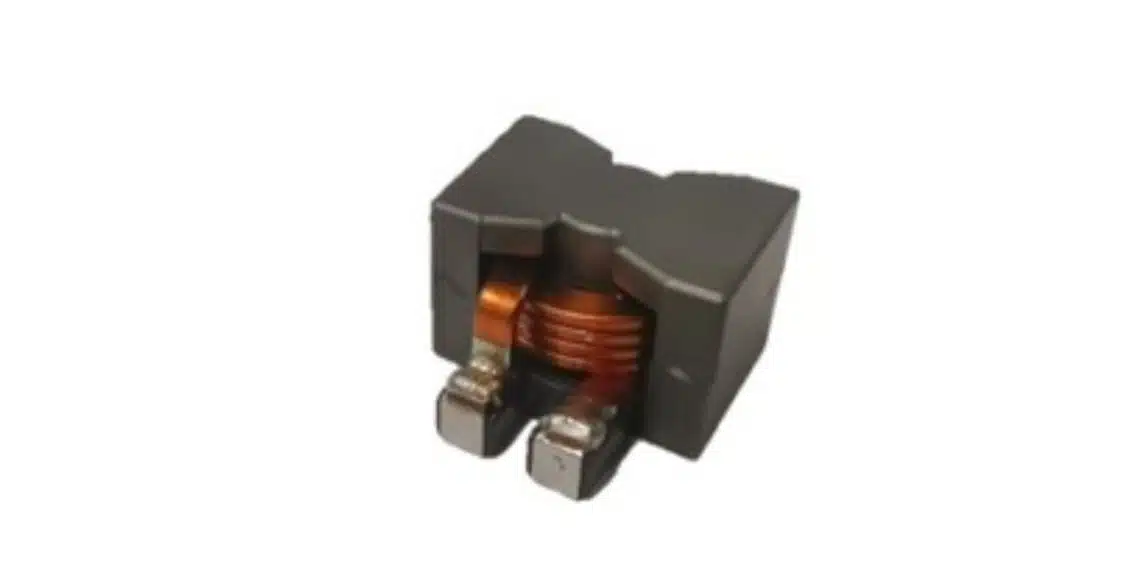

Sumida releases its new, flat wire wound SMD high current power inductor CDPQ****/T150 series.

The new CPQD****/T150 series of high current power inductors are based on flat wire wound, ferrite core based construction that delivers high current in small SMD package.

RelatedPosts

Sumida Announces New DC Common Mode Choke Coil Series

Sumida Releases Automotive SMD Shielded Metal Inductor

Sumida Releases High Saturation SMD Power Inductors

The inductors ideally fits with applications such as high current buck-boost DC/DC converters and PFC chokes / filters for EV OBC.

Features

  • AEC-Q200 qualified
  • Magnetically Shielded
  • Withstand voltage: DC300V guaranteed
  • Operational temperature range: -40℃ ~ +150℃ (including coil’s self-temperature rise)

Applications

  • Filter, PFC inductor, and buck/boost inductor for xEV OBC and DC/DC converter

Related

Source: Sumida
