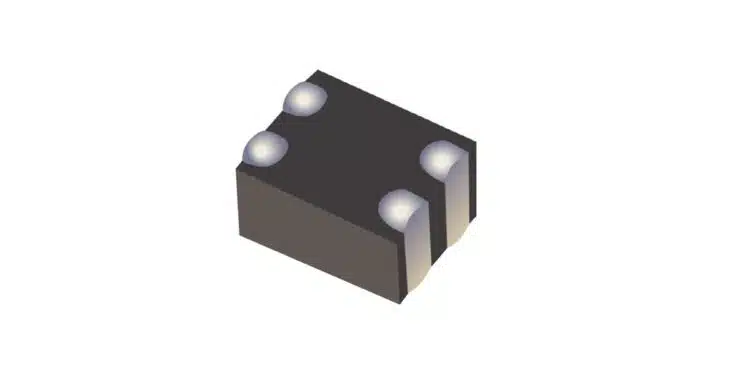

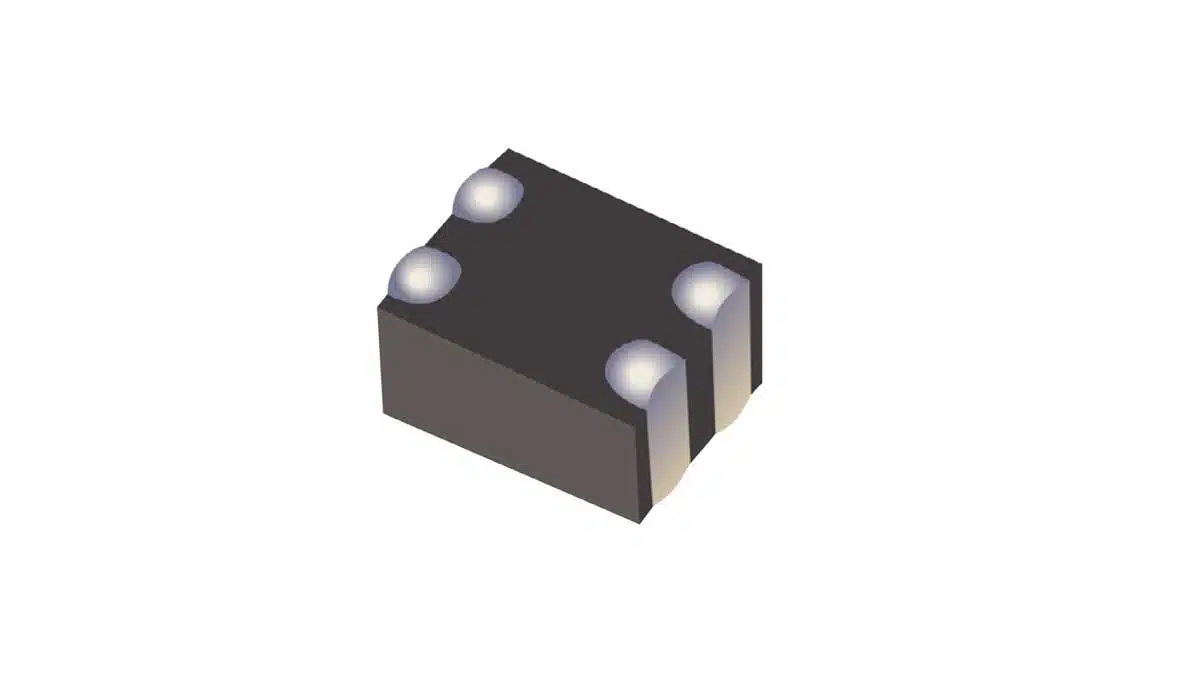

Bourns Introduces 1206 Multilayer Common Mode Filters

16.6.2025
Reading Time: 2 mins read
A A

Bourns Magnetics Product Line proudly announces the launch of the CCF1206 Series Multilayer Common Mode Filters, engineered to deliver reliable performance and support for advanced electronic applications.

The CCF1206 Series features composite co-fired materials, ensuring consistent performance and durability.

RelatedPosts

Bourns Releases TCO 240 Watt USB Mini-Breaker

Bourns Releases Automotive High Creepage and Clearance Transformer

Bourns Unveils Metal Powder Core High Current Low DCR Shielded Power Inductor

Its monolithic construction enables a compact size of just 1.25 x 1 x 0.6 mm, optimizing space efficiency while supporting intricate circuit designs in modern small devices.

Key Features:

  • Monolithic Construction: High reliability for demanding applications
  • Compact Size: 1.2 x 1.0 x 0.6 mm, ideal for space-constrained designs
  • Impedance Range: 67 to 120 Ω
  • Current Range: Up to 300 mA
  • DCR Range: 0.5 – 0.6 Ω
  • Operating Temperature: -40 to +85 °C
  • Environmental Compliance: RoHS compliant and halogen-free*

Ideal Applications:

  • High-speed differential signal transmission lines (USB, LVDS)
  • MIPI serial interfaces in mobile devices

Related

Source: Bourns
