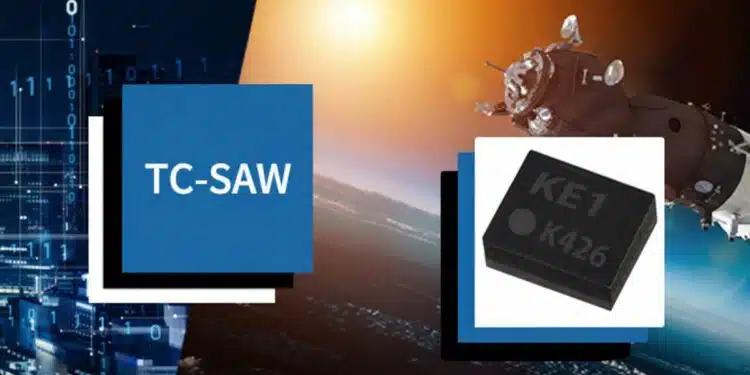

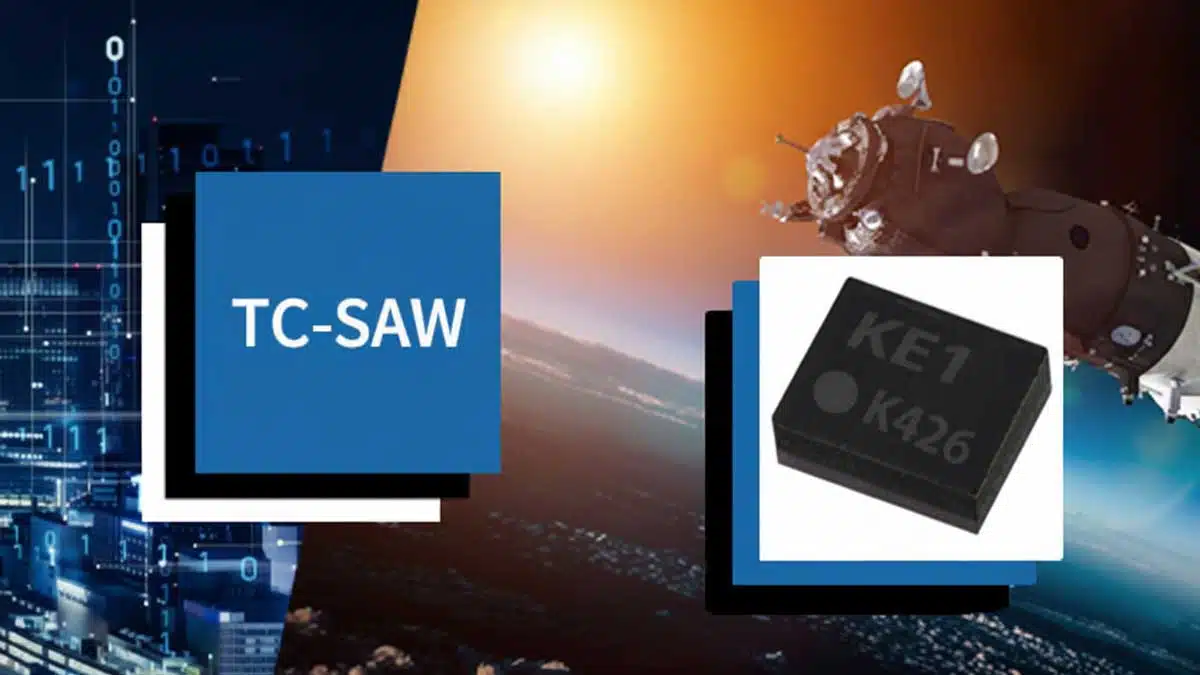

Kyocera Corporation is pleased to announce the release of its new Surface Acoustic Wave (SAW) Filter for Global Navigation Satellite Systems (GNSS), designed specifically to support coexistence with satellite communications in the 1.6 GHz band.
This innovative solution leverages Kyocera’s proprietary Temperature Compensated SAW (TC-SAW) technology to deliver high attenuation and low insertion loss in a compact footprint.
The new SAW filter enables high-quality wireless communication for smartphones and communication devices, addressing the growing demand for satellite-compatible consumer electronics.
Key Features:
- Coexistence of GNSS and satellite communications in the 1.6 GHz band
- Compact size: 1.1 x 0.9 mm
- High attenuation performance:
- 21 dB (Typ.) @1610 to 1612 MHz
- 53 dB (Typ.) @1615 to 1620 MHz
- Low insertion loss: 0.9 dB typical in operating GNSS bands
- Proprietary TC-SAW technology improves performance and stability across varying temperatures
Applications:
- Smartphones
- Communication devices
- Satellite-enabled IoT solutions
Product Information:
- Part Number: SF11-1582M5UUD1
- Kyocera’s TC-SAW technology continues to contribute to the realization of high-quality wireless communications, enhancing the performance of next-generation satellite-enabled devices.
