Single Pair Ethernet Connection and Filter Design Explained; Würth Elektronik Webinar

25.3.2021
Reading Time: 1 min read
0 0
0
SHARES
372
VIEWS

This Würth Elektronik Webinar explaines Ethernet connection types, benefits and also elaborated on suitable filter designs.

In the areas of process, building and factory automation the demand for higher bandwidth communication is increasing. Single-pair Ethernet (SPE) can easily increase network bandwidth and reach in complex networks, while meeting intrinsic safety requirements. In many cases, existing wires can be used.

RelatedPosts

KEMET Product Launch Retrospective Webinar: Q4 2021

On Board Chargers – Technical Requirements and Market Overview; Würth Elektronik Webinar

Selection Guide for EMI Suppression Polypropylene Film Capacitors KEMET Tech Note

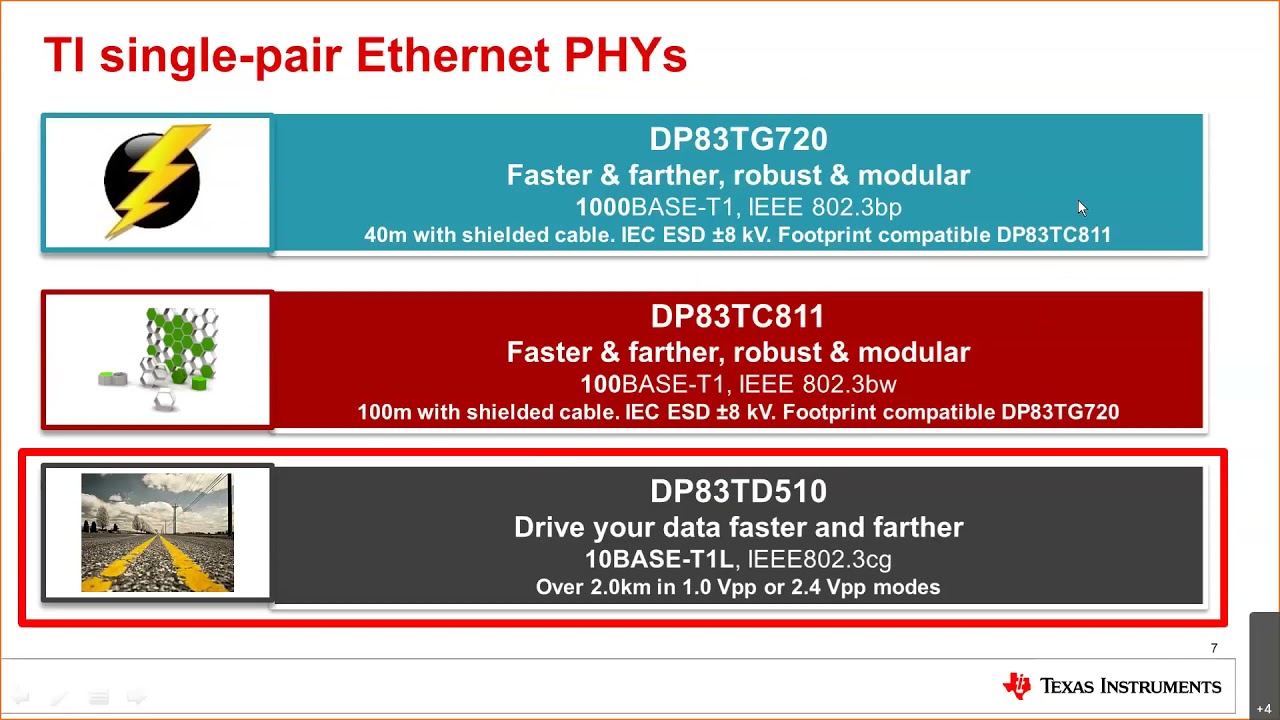

The DP83TD510E from Texas Instruments helps designers implementing SPE on cables with varying characteristic impedances and lengths. For Single Pair Ethernet according to IEEE802.3, safety requirements according to IEC62368-1 are valid. These correspond to a test voltage of 1500V/60s. 50 V isolation capacitors, which are commonly used for automotive Ethernet applications, cannot fulfil this requirement.

The Würth Elektronik Webinar presentation shows examples and detailed measurements for the filter design from connector to PHY chip to fulfil all requirements regarding signal integrity and safety according to IEEE802.3cg (10BASE-T1) and IEEE 802.3bw (100BASE-T1).

Source: Würth Elektronik
