Guide to Snubber Capacitors

27.7.2022
Reading Time: 6 mins read
0 0
0
SHARES
13.5k
VIEWS

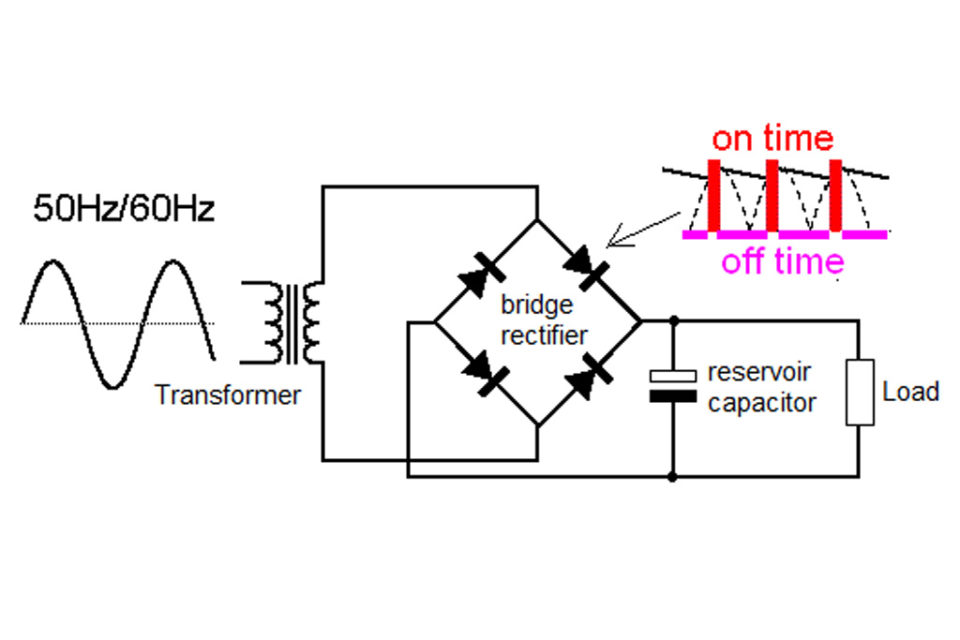

Large voltage spikes are common in power circuits, especially during switching. Switching devices are exposed to large spikes during turn-off, and voltage suppression circuits are required to protect them. Circuits for protecting FETs, IGBTs and other switching devices from large voltage spikes produced during switching operations are commonly referred to as snubbers and snubber capacitors.

Snubber Circuits
A snubber is an essential part of a power conversion circuit. Snubbers are used in power circuits for a broad array of applications including reducing or eliminating voltage or current spikes, limiting dV/dt, or dI/dt, reducing electromagnetic interference (EMI), reducing losses caused by switching operations, shaping load lines, and transferring power dissipation to resistors or useful loads.

RelatedPosts

Snubber Capacitors Functionality and Selection Guide

TDK Releases its Application Guide on Motor/Inverter Circuit Configuration

What Ceramic Technologies Are Best for High Power Density Applications?

A “hard switching” operation subjects a switch to voltage and current stress and causes high switching loss. Presence of parasitic capacitance and parasitic inductance increases this stress further. The total parasitic capacitance comprises of stray capacitance and junction capacitance while the total parasitic inductance comprises of lead inductance and inductance due to circuit layout. Using good circuit layout practices helps to minimize parasitic inductance.

Although the electronic circuits of motor drives, lamp ballasts, power converters, and other power devices may be different, most have common switch-diode-inductor networks and waveforms. The most common circuits are buck, boost, buck-boost, and inverter pole networks. Power electronic circuits that share a common switch-diode-inductor network have same snubber requirements since the behavior of the fundamental network is identical.

There are many types of snubber designs but the resistor-capacitor (RC) and the resistor-capacitor-diode (RCD) snubbers are the most common. A resistor-capacitor snubber helps to suppress peak voltage and minimize ringing. Compared to RC snubbers, RCD snubbers have additional advantages. Apart from limiting peak voltage, this snubber also helps to reduce circuit loss and yields better load lines. On the flip side, the presence of a diode across the resistor causes the effective value of resistance to be zero when the capacitor is charging.

Most of today’s high voltage inverter circuits use IGBTs as the switching devices. IGBTs have lower conduction losses and occupy a smaller die area compared to MOSFETS, and this makes them a better choice for hard switching applications. A significant increase in switching losses at high frequencies makes IGBT modules unsuitable for applications exceeding 20 KHz. Since IGBTs can switch high currents within short time frames, they are exposed to potentially harmful voltage transients and therefore require protection circuits. Adding a snubber capacitor across the IGBT diverts the inductive current thus protecting the switch.

RC snubbers are mostly used in low power and medium power applications. In high power applications, these snubbers exhibit excessive power losses making them unsuitable for such applications. In comparison, RCD snubbers are suitable for medium current and high current applications. They are commonly used for protecting various switching devices including IGBT modules. In high current applications, RC snubbers are mostly used for secondary damping. See also article RC snubber design for SMPS protection.

Snubber capacitors
Snubber circuits are exposed to high stress, so it is important to select components that can withstand such conditions. The types of capacitors that are widely used for snubber applications include film and ceramic capacitors. Whereas plastic film capacitors can be used for both high power and low power circuits, ceramic capacitors are mostly used for low power applications.

Capacitors used in snubber circuits are subjected to high dV/dt and extremely high values of peak and rms current. These circuits demand capacitors that can withstand current spikes with high peak and rms values. The characteristics of polypropylene film capacitors make them suitable for snubber applications.

Film capacitors for snubber applications
Most snubber capacitors are designed with polypropylene material. The performance characteristics of this low-loss dielectric material make it suitable for designing capacitors for use in both low and high pulse applications. The properties of a film capacitor are significantly dependent on the construction technology used.

Metallized film capacitors, also commonly known as metallized electrode capacitors, have self-healing properties while discrete foil electrode capacitors do not have them. Polypropylene film/foil capacitors are commonly used as snubber capacitors in low pulse applications. In comparison, polypropylene metallized film capacitors and double sided metallized film capacitors have self-healing property, and they are suitable for use in low pulse and medium pulse applications. These two types of capacitors are suitable for protecting various switching devices including thyristors, FETs, and IGBT modules. Some polypropylene metallized film capacitors are specially designed for direct mounting on IGBT modules.

A hybrid electrode capacitor is a combination of metallized electrode and discrete foil technologies. These capacitors are used in applications that expose capacitors to extremely high in-rush currents, voltage stress, and dV/dt. Hybrid electrode capacitors have self-healing property, and they are commonly used as snubber capacitors in high pulse applications.

Polypropylene capacitors offer high tolerance and stability. Changes in temperature or applied voltage have minimal effects on the performance characteristics of these components. Furthermore, polypropylene capacitors have low and virtually linear temperature coefficient. The high stability of capacitance of polypropylene capacitors makes them a suitable option for snubber applications.

Snubber circuits subject components to extremely high voltage transients and demand components that can withstand high voltages. Polypropylene capacitors can withstand high voltages, and components with operating voltage ratings of 1 kV, 2kV, 3kVand above are commonly available. Furthermore, snubber applications demand components with low equivalent series resistance (ESR) and equivalent series inductance (ESL). Polypropylene capacitors have low ESR and ESL.

Apart from applications in circuits with extremely high peak current levels, polypropylene capacitors are also suitable for switching power supplies, precision timing circuits, high pulse discharge circuits, sample and hold circuits, and high frequency resonant circuits. These capacitors are usually available as leaded components.

Ceramic capacitors for snubber applications
Multilayer ceramic (MLCC) capacitors have many applications in today’s electronic circuits. These passive components are broadly classified into three classes: Class I, Class II, and Class III. Class I capacitors are designed with low-K materials such as calcium zirconate (CaZrO3) while Class II and III capacitors are based on high-K materials such as barium titanate (BaTiO3).

Since calcium zirconate (CaZrO3) and titanium oxide (TiO3) have low relative permittivity, they yield capacitors with low capacitance. These temperature compensating capacitors have high stability of capacitance and are suitable for snubber applications. Class I capacitors have fairly linear temperature characteristics. Changes in voltage have minimal effects on the characteristics of these capacitors. Furthermore, Class I capacitors are not susceptible to aging.

Unlike polypropylene film capacitors, MLC capacitors are mostly used in low power applications. Apart from MLC capacitors and film capacitors, mica capacitors are also used as snubber capacitors. These capacitors have high stability and low inductive and resistive losses. Mica capacitors are suitable for low pulse applications.

Conclusion
Switchers produce potentially harmful voltage spikes that can damage electronic components. Snubbers are used in power circuits to suppress harmful voltage transient spikes. Apart from limiting voltage transients, snubbers are also used for shaping load lines, limiting dV/dt, reducing switching losses, transferring power dissipation from switches, and reducing voltage and current ringing. The performance characteristics of polypropylene capacitors make them a suitable choice for snubber circuits, AC filtering, and DC-link applications. Polypropylene film capacitors are suitable for both low power and high power applications. In comparison, ceramic and mica snubber capacitors are mostly used in low power equipment. Snubber capacitors are common in inverter/converter, welding equipment, uninterruptible power supply (UPS), and motor controls circuits.

Continue reading:

  • RC Snubber Design for SMPS Protection Part I
  • RC Snubber Design for SMPS Protection Part II
  • Filtering Capacitors for Switch Mode Power Supplies
