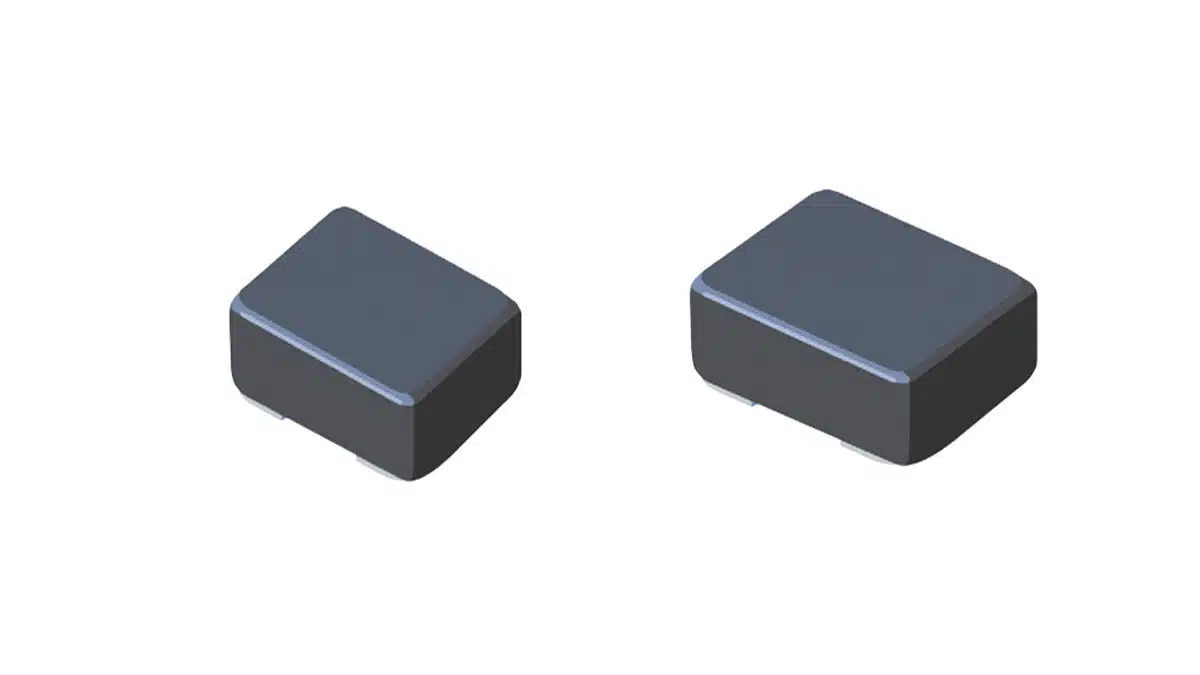

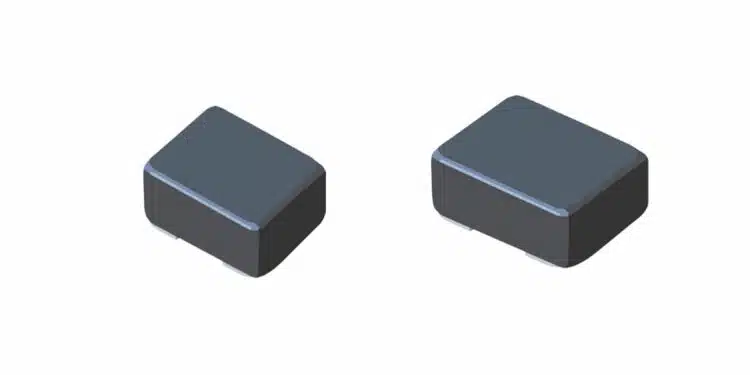

Bourns Magnetics product line is introducing the SRP2512CL and SRP3212CL series shielded power inductors dedicated for the used with DDR5 memory ICs and modules.
These inductor series are manufactured with a shielded construction for low magnetic field radiation and a nanocrystalline core for high current and low buzz noise.
These inductors also feature low ACR and DCR, low losses, and high efficiency.
These new models have an operating temperature range of -40 to +125 °C and are available in 3030 and 2520 sizes.
The SRP2512CL and SRP3212CL Series are developed for use with DDR5 PMICs and are well-suited for client DDR5 modules in desktops, notebooks, and tablets.
| Series | Size (mm) | Inductance (µH) | Heating Current Irms (A) | Saturation Current Isat (A) | Operating Temperature |
| SRP2512CL | 2.5 x 2 x 1 | 1 – 1.5 | 4.2- 5 | 3.8 – 4.5 | -40 to +125 |
| SRP3212CL | 3.2 x 2.5 x 1 | 0.47 – 1 | 5.5 – 8 | 5.0 – 7.5 | -40 to +125 |
Features
- Shielded construction for low radiation
- Low ACR and DCR
- Low loss – high efficiency
- Available in 3030 and 2520 sizes
- Developed for use with DDR5 PMIC
- RoHS compliant and halogen free
Applications
- Client DDR5 modules
- Desktops, laptops, tablets
Source:
Bourns
