Vishay Releases High Saturation 180C Automotive Inductors

6.8.2025
Reading Time: 2 mins read
A A

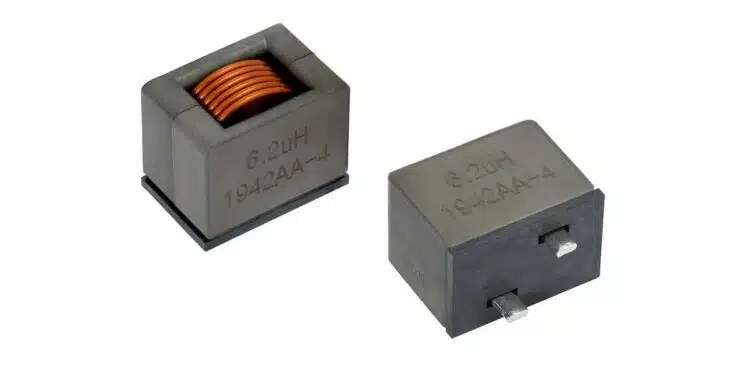

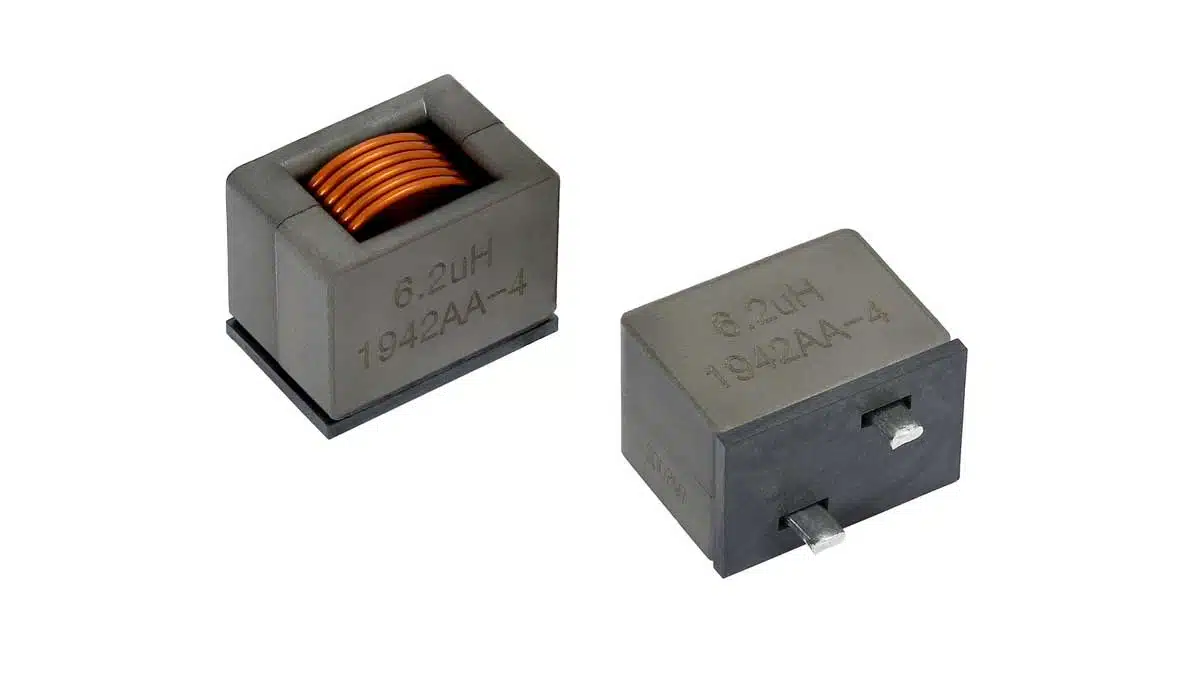

Vishay Intertechnology, Inc. introduced two new IHDM Automotive Grade edge-wound, through-hole inductors in the 1107 case size with soft saturation current to 422 A.

Featuring a powdered iron alloy core technology, the Vishay Inductors Division’s IHDM-1107BBEV-2A and IHDM-1107BBEV-3A provide stable inductance and saturation over a demanding operating temperature range from -40 °C to +180 °C with low power losses and excellent heat dissipation.

RelatedPosts

Vishay NTC Immersion Thermistor Delivers Fast Response in Liquid Cooled Automotive Systems

Vishay Expands Automotive High Frequency Thin Film Chip Resistors

Vishay Extends Axial Wirewound Resistors with WSZ Lead Form

The edge-wound coil of the devices released today provides low DCR down to 0.22 mΩ, which minimizes losses and improves rated current performance for increased efficiency.

Compared to competing ferrite-based solutions, the IHDM-1107BBEV-2A and IHDM-1107BBEV-3A offer 30 % higher rated current and 30 % higher saturation current levels at +125 °C. The inductors’ soft saturation provides a predictable inductance decrease with increasing current, independent of temperature.

With a high isolation voltage rating up to 350 V, the AEC-Q200 qualified devices are ideal for high current, high temperature power applications, including DC/DC converters, inverters, on-board chargers (OBC), domain control units (DCU), and filters for motor and switching noise suppression in internal combustion (ICE), hybrid (HEV), and full-electric (EV) vehicles.

The inductors are available with a selection of two core materials for optimized performance depending on the application.

Standard terminals for the IHDM-1107BBEV-2A and IHDM-1107BBEV-3A are stripped and tinned for through-hole mounting. Vishay can customize the devices’ performance — including inductance, DCR, rated current, and voltage rating — upon request. Customizable mounting options include bare copper, surface-mount, and press fit. To reduce the risk of whisker growth, the inductors feature a hot-dipped tin plating. The devices are RoHS-compliant, halogen-free, and Vishay Green.

Specifications

Part numberIHDM-1107BBEV-2AIHDM-1107BBEV-3A
Inductance (µH)0.47 to 7.50.68 to 12.0
DCR typ. (mΩ)0.22 to 2.11
DCR max. (mΩ)0.27 to 2.20
Heat rating current typ. (A)(1)31 to 12835 to 125
Saturation current typ. (A)96 to 343(2) / 118 to 422(3)49 to 202(2) / 61 to 248(3)
SRF typ. (MHz)29 to 21721 to 181

Related

Source: Vishay
