TDK Releases Miniaturized Multilayer Varistors for Voltage Protection of Automotive Ethernet

21.8.2019
Reading Time: 2 mins read
A A

Source: TDK news

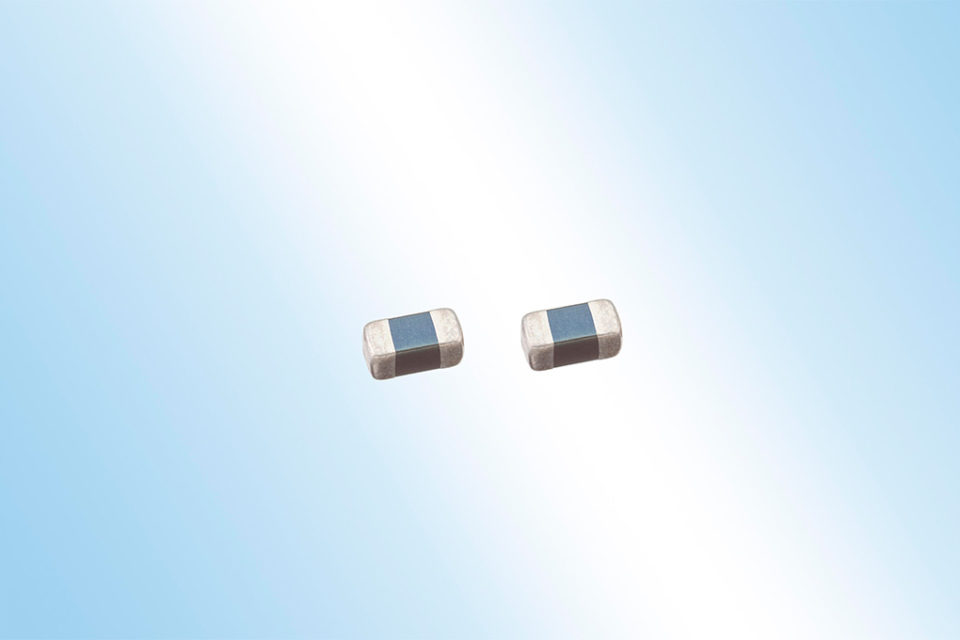

TDK Corporation has expanded its lineup of multilayer varistors with the new AVRH10C101KT1R1NE8 for automotive Ethernet. Thanks to the extremely precise multilayer technology, the product features a low capacitance of just 1.1 ± 0.3 pF, ensuring signal integrity even at the high data rates of automotive Ethernet.

RelatedPosts

Bourns Unveils Metal Powder Core High Current Low DCR Shielded Power Inductor

Influence of Tantalum Capacitor Pellets Size on Stability During Oxide Film Formation

Modelithics Release Discrete Components Optimization Article for RF/Microwave Designers

With its IEC 1005 package (1.0 x 0.5 x 0.5 mm) the varistor boasts a volume that is 75 percent smaller than existing components. The component, which is qualified to AEC-Q200, features a maximum operating voltage of 70 V and an operating temperature range of -55 to +150 °C, thus expanding the range of possible applications.

Automotive Ethernet is the communication infrastructure of choice for today’s vehicles since ECUs require a high speed, low latency communication in advanced driver assistance systems (ADAS) and autonomous driving. TDK’s newest varistor protects automotive ECUs and components from ESD without impeding high speed communication between ECUs.

Moving forward, TDK will continue to expand the product lineup in terms of compactness, operating voltage, and capacitance to support a wide range of automotive device designs.

Main applications

  • ESD protection of ECUs networked with automotive Ethernet

Main features and benefits

  • Low capacitance through extremely precise multilayer technology
  • Compact dimensions of just 1.0 x 0.5 x 0.5 mm
  • High reliability; qualified to AEC-Q200
  • High operating temperature of up to 150℃

Key data

Type Dimensions
[mm]
Max. operating
voltage [V]
Capacitance
[pF]
Applications
AVRH10C101KT1R1NE8 1.0 x 0.5 x 0.5 70 1.1 ±0.3 Ethernet
1000Base-T1
