Current Sense Transformer Datasheet and Design‑in Guide

27.5.2026
Reading Time: 11 mins read
A A

This article based on prof. Sam Ben-Yaakov video summarizes how current sense transformers work, how to interpret their datasheet parameters and how to design them into real applications.

Current sense transformers are widely used components for accurate, galvanically isolated current measurement in switching power supplies and other power‑conversion circuits. They offer low insertion loss, high bandwidth and good linearity compared to shunt resistors, while keeping the primary circuit safely insulated from the measurement side.

RelatedPosts

AI Server Power Supply Efficiency Under Pulsed Loads

TLVR Coupled Inductors: Fast Load-Step Response and Current-Dependent Ballast-Inductor Optimisation

B–H Curve-Based Inductor Modelling in LTspice: A Current-Dependent Magnetic Model

Key features and benefits of current sense transformers

Current sense transformers are magnetic components that reproduce a scaled version of a primary current on their secondary winding. In the simplest case the primary is a single turn (often just a PCB trace or a bus bar) passing through a toroidal or E‑core, and the secondary has NN turns that deliver a proportional current into a burden resistor.

Typical key features highlighted in the video include:

  • Galvanic isolation between primary and secondary, enabling safe measurement of high‑side or high‑voltage currents without exposing the sensing circuit directly to the power stage potential.
  • High bandwidth compared to many closed‑loop Hall sensors, enabling use in high‑frequency SMPS, current‑mode control loops and protection circuits.
  • Low insertion loss, since the primary is typically just a conductor through the core with very low series resistance, minimizing dissipation and voltage drop.
  • Good linearity within the specified current and frequency range, as long as the core does not saturate and the secondary is properly loaded.
  • Small size and low cost for the level of isolation and bandwidth achieved, especially in standard SMT packages.

From a design‑in perspective, the main benefit over simple shunt resistors is that the measurement is isolated and the power dissipation of the sensor itself is minimal, which can significantly improve efficiency and measurement safety in higher‑power systems.

Typical applications

There are several typical application domains where current sense transformers are particularly useful:

  • Switched‑mode power supplies (SMPS) for server, telecom and industrial power, where they are used for primary‑side current‑mode control and over‑current protection.
  • Power factor correction (PFC) stages, to sense inductor or line current for control loops and protection.
  • DC‑DC converters in automotive and industrial electronics, where isolated current measurement is needed on battery or bus rails.
  • Inverters and motor drives, where fast and accurate current feedback is required for control algorithms, while maintaining isolation from high voltages.
  • General protection circuitry such as over‑current, short‑circuit and inrush monitoring in AC‑DC and DC‑DC systems.

In many of these use cases, current sense transformers allow the control IC to remain at a relatively safe potential while still observing the high‑side or primary‑side currents, which simplifies the system insulation design and can reduce the need for more complex isolation schemes.

Basic electrical parameters

  • Turns ratio Npri:NsecN_{\text{pri}} : N_{\text{sec}}
    In common current sense transformers the primary is one turn and the datasheet states the effective current ratio, e.g. 1:50 or 1:100. This directly defines the relationship between primary current and secondary current. If the primary has 1 turn and the secondary has NN turns, then in ideal conditions:Isec=IpriNI_{\text{sec}} = \frac{I_{\text{pri}}}{N}This means that higher ratios reduce the secondary current and therefore the burden power, but also reduce the output signal level for a given primary current.
  • Primary current range
    Datasheets specify a maximum primary RMS or peak current that the transformer can sense without saturating the core or exceeding thermal limits. Designers must stay within this rated range and allow margin for overload conditions.
  • Frequency range
    Current sense transformers are designed to operate correctly over a certain frequency band. The lower cutoff is often a few kilohertz (depending on the core and load) and the upper cutoff can go into hundreds of kilohertz. For low‑frequency or DC measurement these devices are not suitable, because the core would need to handle a net DC flux and the transformer principle itself only transfers AC.
  • Burden resistor and output voltage
    By choosing a burden resistor RbR_{\text{b}}, the secondary current is converted into a measurable voltage. For an ideal transformer:Vout=Isec⋅Rb=IpriN⋅RbV_{\text{out}} = I_{\text{sec}} \cdot R_{\text{b}} = \frac{I_{\text{pri}}}{N} \cdot R_{\text{b}}The video underlines that RbR_{\text{b}}​ must be selected such that the core does not saturate (secondary current must be able to flow) and that the amplifier or controller’s input range is not exceeded.

Example parameter interpretation

To help read a datasheet, it is useful to map parameters to practical implications:

ParameterWhat it describes in practice
Turns ratioScaling between primary current and secondary current/voltage.
Max primary currentHighest current that can be sensed without saturation or damage.
Frequency rangeBandwidth of accurate sensing around the switching frequency.
Insertion impedance (primary)Additional impedance added in series with the sensed conductor.
Isolation voltageMaximum tested voltage between primary and secondary.
Creepage/clearancePhysical creepage and clearance distances ensuring safety compliance.
Operating temperature rangeAmbient or case temperature over which performance is guaranteed.

Its important to cross‑check the maximum primary current, burden resistor and switching frequency together, because together they determine the core flux swing, losses and output signal integrity.

Core and construction

Core material and geometry are crucial for current sense transformer selection:

  • Ferrite toroids and E‑cores are common, optimized for the kHz–MHz frequency range typical of SMPS.
  • Core cross‑section and material define how much flux swing is possible before saturation and how high the losses will be at the operating frequency.
  • The primary conductor (often a single turn) should be routed to minimize additional parasitics and to ensure that all current passes through the aperture.

The construction details directly impact linearity, temperature drift and the mechanical integration on the PCB or in the power train.

Design‑in notes for engineers – Recommendations

Selecting the turns ratio and burden resistor

For a given maximum primary current Ipri,maxI_{\text{pri,max}} and desired maximum output voltage Vout,maxV_{\text{out,max}} you can rearrange the basic relation:

Vout,max=Ipri,maxN⋅RbV_{\text{out,max}} = \frac{I_{\text{pri,max}}}{N} \cdot R_{\text{b}}From this, you can:

  • Choose NN from available standard transformer ratios.
  • Select RbR_{\text{b}}​ such that Vout,maxV_{\text{out,max}} fits into the measurement input range (e.g. ADC or comparator).
  • Check that the resulting power in the burden resistor P=Isec2RbP = I_{\text{sec}}^{2} R_{\text{b}}​ stays within its rating.

Note: If the burden resistor is too high, the secondary current is restricted, risking core saturation and waveform distortion. If it is too low, the output voltage may be too small and the measurement noisy.

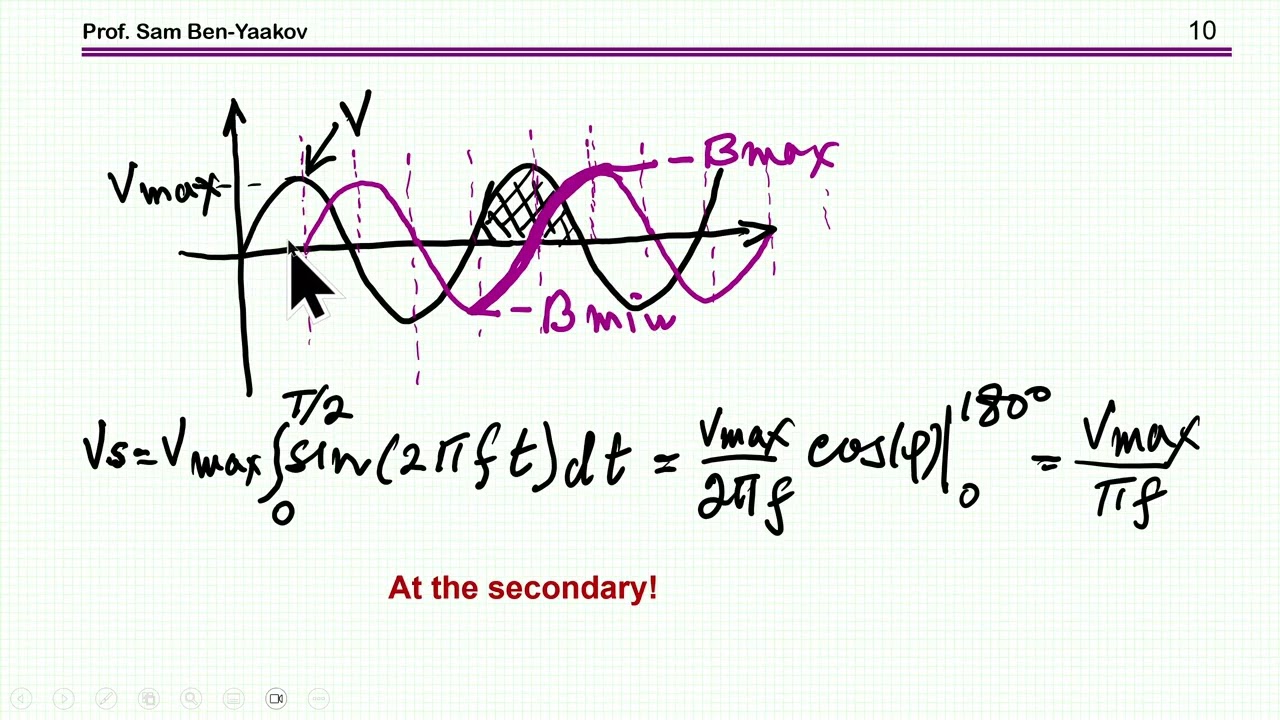

Avoiding core saturation and distortion

To keep the transformer in its linear region:

  • Ensure that the maximum expected primary current (including fault conditions) stays within the datasheet’s recommended limit, with margin.
  • Verify the minimum operating frequency; at too low frequencies the flux swing per cycle becomes larger for the same volt‑seconds, which can push the core into saturation.
  • Use the recommended burden resistor or the range indicated by the manufacturer, especially for designs near the upper current or lower frequency limits.

Note: Signs of saturation in the waveform include clipping or flattening of the secondary voltage and delayed response, which can lead to under‑ or over‑estimation of the real current.

PCB layout and mechanical integration

Several practical hints on the layout side:

  • Route the primary conductor through the core in a way that all current you want to sense passes through the aperture, and avoid parallel alternative paths that bypass the core.
  • Keep the loop area of the primary conductor around the core as small as practical to minimize stray inductance and EMI pickup.
  • Observe isolation distances on the PCB in line with the transformer’s rated isolation and the application’s safety requirements.
  • Note the orientation of the transformer so that the polarity of the sensed signal matches the controller’s expectations; many datasheets provide a dot marking to indicate winding polarity.

These seemingly small details can significantly impact measurement accuracy and EMC performance.

Interfacing with control electronics

The secondary output is usually fed into:

  • A sense resistor followed by an op‑amp or differential amplifier.
  • A comparator used for cycle‑by‑cycle over‑current protection.
  • Direct connection to current‑mode control inputs of PWM controllers that expect a specific ramp shape per cycle.

The measurement chain’s bandwidth must be compatible with the transformer’s own frequency response to avoid adding excessive phase shift or ringing. Any filtering (for example an RC network) should be designed with the switching frequency and control loop requirements in mind.

Conclusion

Current sense transformers provide an efficient and galvanically isolated way to measure AC and pulsed currents in high‑frequency power electronics, with low losses and excellent bandwidth compared to many alternative sensing approaches. By carefully reading the datasheet parameters for turns ratio, frequency range, maximum primary current, burden resistor recommendations and isolation ratings according to the manufacturer datasheet, designers can integrate these components with confidence into SMPS, PFC stages, inverters and other power‑conversion systems.

Robust designs depend on respecting core limitations, choosing appropriate burden resistors and paying attention to PCB layout and interfacing circuitry. Equipped with these guidelines, design engineers and purchasers can better evaluate current sense transformer options, match them to application requirements and avoid common pitfalls related to saturation, inadequate bandwidth or unsafe isolation.

Source

This article is based on the educational YouTube video “Current sense transformer datasheet and applications” published by the component manufacturer, with additional independent commentary and context for design engineers.

Further Read

For readers who need a deeper treatment of operating principles, error sources and selection flow, see also the companion article
“Current Sense Transformer Design and Application”
That article develops a 3‑step selection methodology, flux‑density working‑point calculations and SMPS/automotive case studies that complement the datasheet‑level guidance given here.

References

  1. Current sense transformer datasheet and applications – YouTube

Related

Source: Sam Ben Yaakov

Recent Posts

Exxelia Presents Disc Capacitors and Integrated Magnetics for Space

18.11.2026
29
Murata MGJ2T2 SIP isolated DC-DC converter for SiC gate-drive power

Murata Unveils Isolated DC-DC for SiC Gate Drives

17.11.2026
23
Simplified buck, boost, flyback and isolated buck power-stage schematics showing switches, inductors, coupled magnetics, diodes and output capacitors.

SMPS Topology Selection: From Buck and Boost to Flyback and LLC

16.11.2026
32
VACUUMSCHMELZE VACODUR Max cobalt-iron lamination material illustrated as thin metallic rotor and stator stacks.

VACUUMSCHMELZE Introduced VACODUR Max Cobalt-Iron Alloy for Motor Laminations

12.11.2026
78
Würth Elektronik ABC of Thermal Management textbook

Würth Elektronik Launches ABC of Thermal Management Guide

11.11.2026
49
Reference tantalum capacitor anode characterization, tantalum anode modeling, process selection and life-test verification.

Tantalum Anode Design Combines Structural Benchmarks and Modeling

9.11.2026
31
Power line EMI filter on a copper ground-plane fixture connected to a vector network analyzer with a toroidal balun

How to Measure Filter Performance: Insertion Loss, VNA Fixtures and CM/DM Separation

6.11.2026
52
Assorted EMI and RF filter components: common mode choke, ferrite beads, feedthrough filter, X2 capacitor, cavity filter, ceramic coaxial resonators, thin-film filter and SAW/BAW packages

Passive Filter Technologies Compared: LC, Ferrite, Feedthrough, Ceramic, Cavity, Microstrip, SAW and BAW

6.11.2026
41
Schematic of a titanium nitride thin-film inductor within a CMOS poly-resistor stack beside its integrated resonator circuit.

TiN Superinductors Bring Compact Cryogenic Inductance to CMOS

5.11.2026
30

Upcoming Events

Nov 24
16:00 - 17:00 CET

Select the Correct Components for Your DC/DC Converter

Dec 1
16:00 - 17:00 CET

Developing low-noise mixed-signal systems

Dec 8
16:00 - 17:00 CET

WE-CCMF: Design Principles, Layout Guidelines and Measurement Results for High-Speed EMI Filtering

View Calendar

Popular Posts

  • Buck Converter Design and Calculation

    0 shares
    Share 0 Tweet 0
  • September 2026 Interconnect, Passives and Electromechanical Components Market Insights

    0 shares
    Share 0 Tweet 0
  • Boost Converter Design and Calculation

    0 shares
    Share 0 Tweet 0
  • Capacitor Charging and Discharging

    0 shares
    Share 0 Tweet 0
  • RF Connector Types: How To Choose the Right One

    0 shares
    Share 0 Tweet 0
  • Passive Low Pass Filters: Fundamentals and EMI Design

    0 shares
    Share 0 Tweet 0
  • LLC Resonant Converter Design and Calculation

    0 shares
    Share 0 Tweet 0
  • Flyback Converter Design and Calculation

    0 shares
    Share 0 Tweet 0
  • Capacitor Symbols

    0 shares
    Share 0 Tweet 0
  • MLCC and Ceramic Capacitors

    0 shares
    Share 0 Tweet 0

Newsletter Subscription



Passive Components Blog

© 2015–2026
All rights reserved

  • Home
  • Privacy Policy
  • EPCI Membership & Advertisement
  • About

No Result
View All Result
  • Home
  • Knowledge Blog
  • Dossiers
  • PCNS

© 2015–2026
All rights reserved
