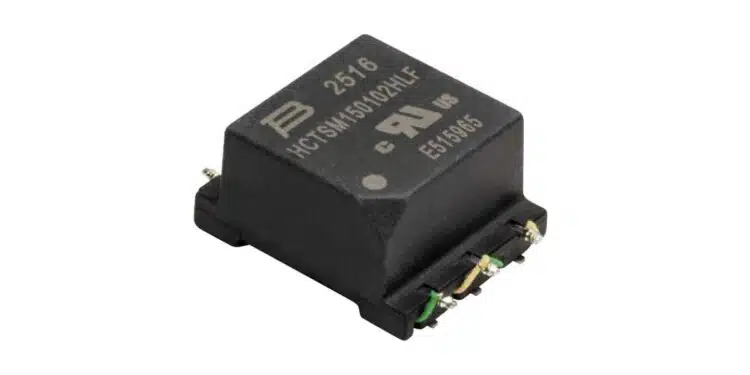

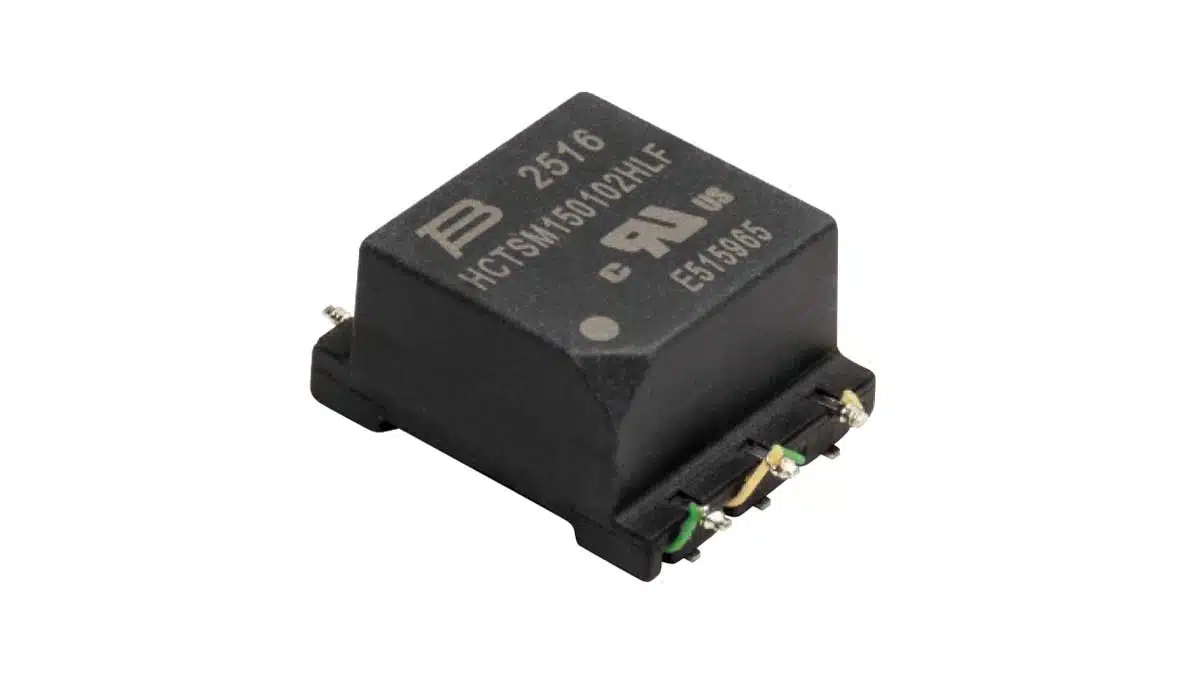

Bourns Introduces the HCTSM150102HLF-E: A High-Performance High Clearance/Creepage Distance Isolation Power Transformer for ESS and High Voltage/Current Meter Applications.
Bourns, a leading provider of electronic components, is pleased to announce the launch of the HCTSM150102HLF-E, a cutting-edge power transformer designed to meet the demanding requirements of Energy Storage Systems (ESS) and high voltage/current meter applications.
The high voltage isolation transformer is driven by 3.3 – 5 V input and delivers 3.3 -15 V up to 175 mA output, and can be configured in a variety of turns ratios if needed.
This new product offers exceptional performance and reliability, making it an ideal choice for engineers and designers seeking robust solutions.
The HCTSM150102HLF-E features a working voltage of up to 1500 VDC, ensuring it can handle high-voltage environments with ease. It boasts a Hi-Pot rating of 7640 VDC, 1 mA, for 2 seconds, providing superior insulation integrity.
The component also offers RS-485/RS-232 isolation, clearances and creepage distances exceeding 15 mm, and a CAN interface for digital input modules.
Features
- Working voltage up to 1500 VDC
- Hi-Pot: 7640 VDC, 1 mA, 2 s
- Clearance distance >15 mm
- Creepage distance >15 mm
- Reinforced class F insulation, up to 150 °C
- Overvoltage category II, pollution degree 2, up to 4 km above sea level
- Complies with IEC 60664-1, IEC/UL 62368-1
- RoHS compliant
Applications
- ESS and high voltage/current meter
- RS-485/ RS-232 isolation
- CAN interface digital input modules
