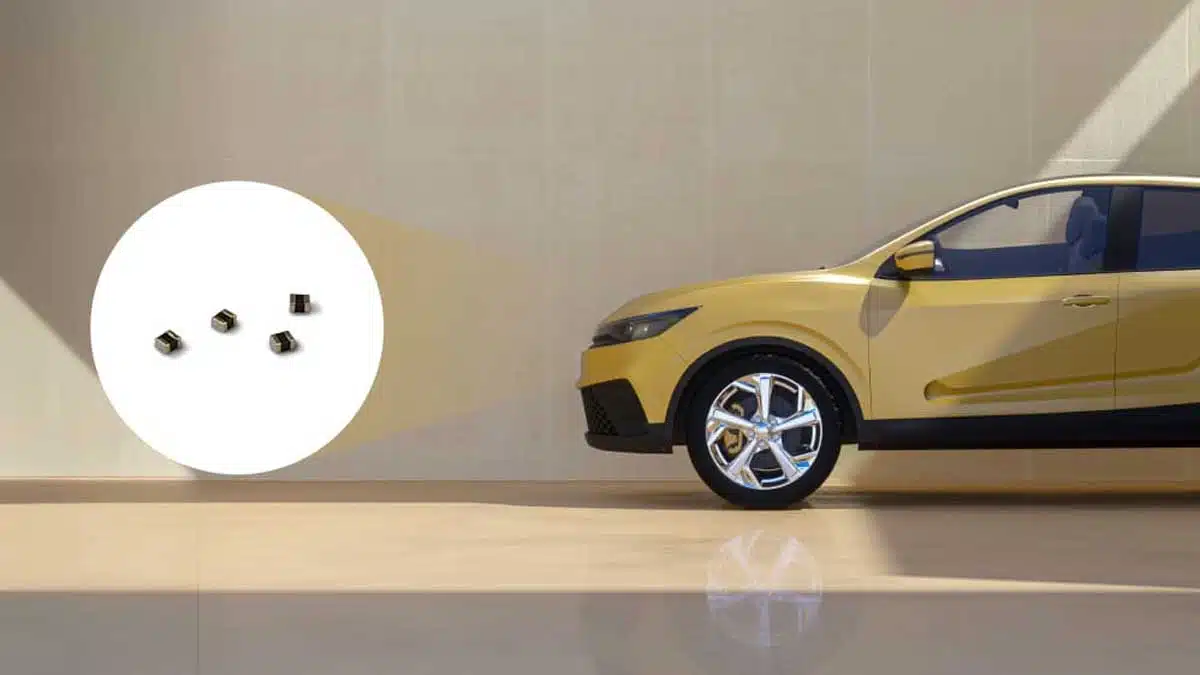

Samsung Electro-Mechanics has developed compact, high-reliability, high temperature 165C power SMD inductors for applications like ADAS (Advanced Driver Assistance Systems) and IVI (In-Vehicle Infotainment).
These inductors meet high-current and high-efficiency requirements while demonstrating excellent electrical characteristics in limited spaces.
Four models of 0806 inch automotive compact power inductors have been released.
These products operate at temperatures up to 165°C and meet AEC-Q200 reliability standards, operating temperature (-55°C ~ 165°C), and a rated voltage of 40V.
Differentiated powder insulation coatings and enhanced bonding strength with external electrodes have been incorporated to achieve these specifications. Samples are also available.
Samsung Electro-Mechanics has expanded its coverage of 0806 inch size products by incorporating proprietary magnetic materials and a thin-film type coil structure with high-temperature characteristics.
This enables low DC resistance and high rated current, even in the 2.0×1.6mm, 1.0mm to 2.0×1.6mm, 1.2mm thickness range.
Specifications
| Samsung 0806 | Ls [uH] | Tol | Rdc [mΩ] | Isat [A] | Irms [A] | Operating Temp. [℃] | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| 165℃ 40V | max | typ | max | typ | max | typ | max | |||
| CIGB201612AF1R0MP# | 1.0 | ±20% | 45 | 35 | 3.3 | 3.9 | 3.2 | 3.7 | 165 | |
| CIGB201612AF1R5MP# | 1.5 | ±20% | 80 | 65 | 2.8 | 3.3 | 2.3 | 2.8 | 165 | |
| CIGB201612AF2R2MP# | 2.2 | ±20% | 120 | 105 | 2.5 | 2.9 | 1.9 | 2.3 | 165 | |
| CIGB201612AF4R7MP# | 4.7 | ±20% | 378 | 315 | 1.2 | 1.6 | 1.0 | 1.3 | 165 | |
