Stackpole Unveils 1W High Power Density Current Sense Chip Resistor

24.7.2025
Reading Time: 2 mins read
A A

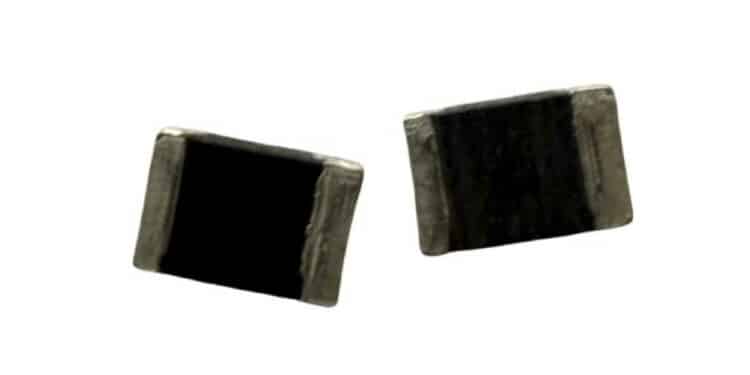

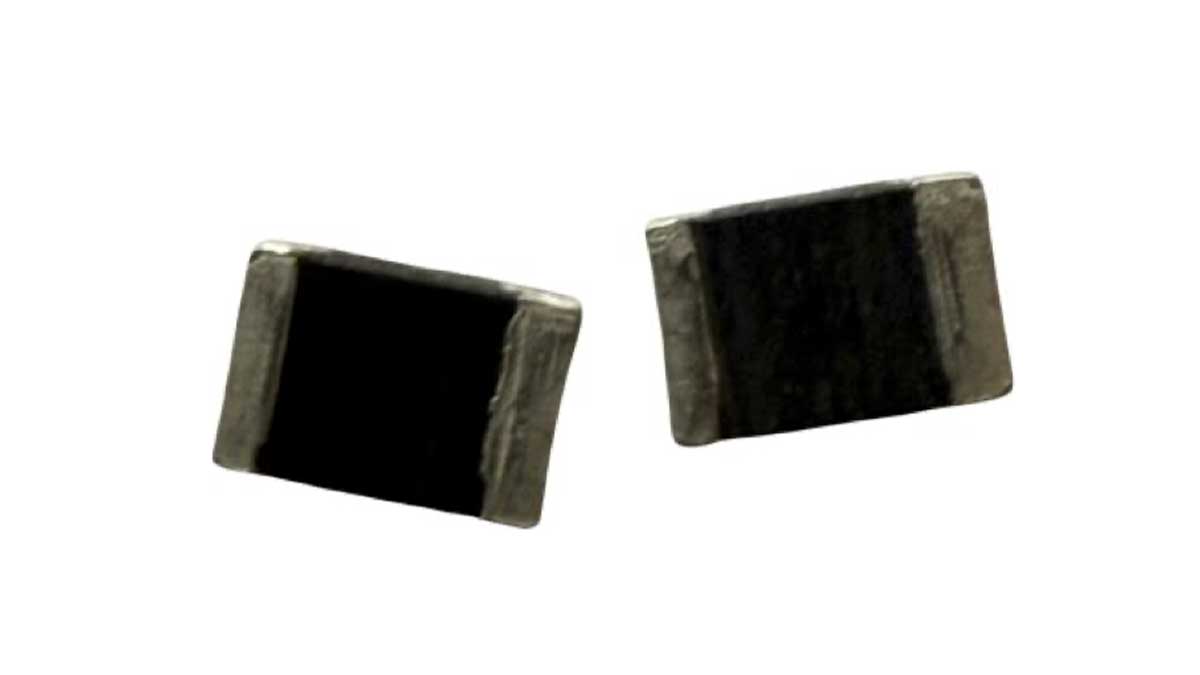

Stackpole Electronics, Inc. announces the launch of its latest innovation, the CSSH0805 current sense chip resistor.

Engineered for high power density applications, this cutting-edge component is ideal for power modules, frequency converters, battery management systems, and automotive and electric vehicle (EV) controls.

RelatedPosts

Stackpole Unveils Metal Element High Current Chip Jumpers

Stackpole Extends Voltage of High Temp Chip Resistors

Stackpole Releases Low VCR High Voltage Chip Resistors

The CSSH0805 SMD chip resistor delivers impressive performance with 1W power handling in a compact 0805 footprint, significantly conserving PCB space.

Featuring resistance values as low as 0.5 milliohm and a temperature coefficient of resistance (TCR) ranging from 50 to 100 ppm, it matches the performance of larger 1206 and 2010 resistors. This all-metal chip resistor also offers superior stability and reliability, passing rigorous industry-standard tests with ease.

Designed for high-efficiency, space-constrained applications, the CSSH0805 is the perfect solution for modern electronic systems requiring compact and robust components.

Pricing and Availability:

The CSSH0805 is available with pricing varying based on resistance value, ranging from $0.125 to $0.15 each for 1% tolerance in full package quantities. For detailed pricing information or volume inquiries, please contact Stackpole Electronics or one of our distribution partners.

Features:

  • High temperature performance up to 225C (for operation up to 275ºC, contact Stackpole)
  • Low thermal EMF (< 1µ V/C) typically
  • RoHS compliant, REACH compliant, lead free, and halogen free
  • AEC-Q200 compliant

Related

Source: Stackpole
