TDK EMC multilayer chip beads with high rated currents

26.1.2019
Reading Time: 2 mins read
A A

source: TDK news

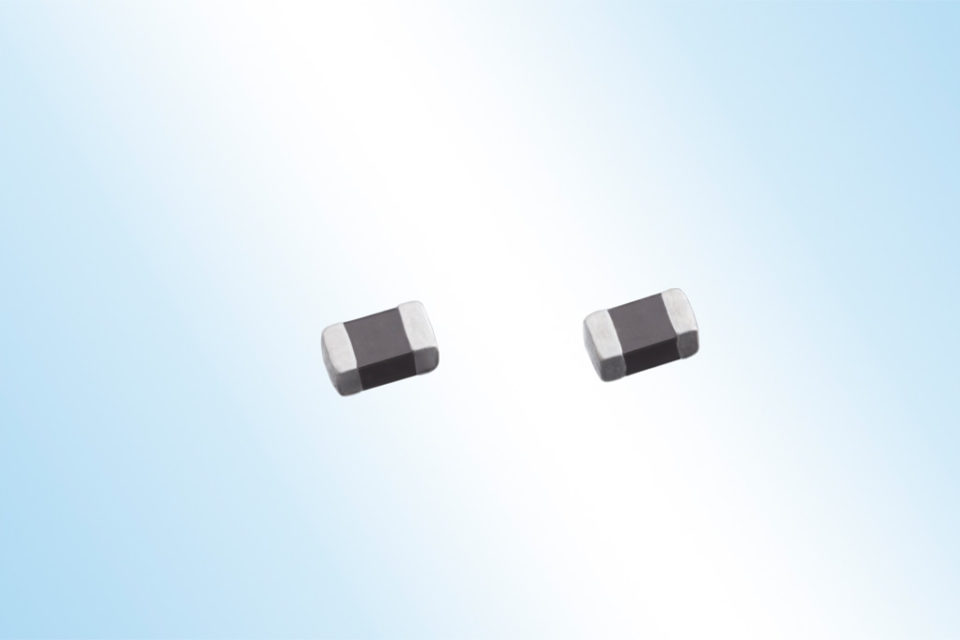

TDK Corporation (TSE:6762) has developed the new MPZ0603-H series of multilayer chip beads for power lines in an IEC 0603 package (EIA 0201) that feature twice the rated current and about half the DC resistance of the existing MPZ0603-C series.

RelatedPosts

2026 Capacitor Price Shock: Where Film Capacitors Fit

Nisshinbo Silicon Motherboard Integrates ICs and Passives

Murata Unveils Isolated DC-DC for SiC Gate Drives

Thanks to a newly developed technology for the internal electrodes, TDK was able to reduce the DC resistance to as low as 36 mΩ, thus increasing the rated current to as high as 1900 mA. The MPZ0603-H series offers high impedance values ranging from 22 Ω to 120 Ω at 100 MHz. The new chip beads measure in with a miniature footprint of 0.6 mm x 0.3 mm and a low insertion height of just 0.3 mm. With their compact dimensions and excellent electrical specifications the ferrite beads are very well suited for a wide spectrum of noise suppression measures in the IC power supply lines of smartphones, audio players, PCs, and other devices. Mass production of the new series began in August 2018.

As the multifunctionality of portable devices such as smartphones continues to grow, high current ratings are becoming an increasingly important factor for components in the IC power supply lines. Thanks to their low DC resistance the MPZ0603-H chip beads not only offer a high rated current, but they also help lower the power consumption of devices.

Main applications

  • Noise suppression in the IC power supply lines in smartphones, audio players, PCs, and other devices

Main features and benefits

  • DC resistance as low as 36 mΩ approximately half that of existing products
  • Rated current as high as 1900 mA approximately twice that of existing products

Key data

Type Impedance
at 100 MHz
[Ω] ±25%
Max. DC
resistance
[mΩ]
Max. rated
current
[mA]
MPZ0603S220H 22 36 1900
MPZ0603S330H 33 50 1600
MPZ0603S800H 80 95 1200
MPZ0603S121H 120 130 1000
