Key Takeaways

The earthing designation describes the electrical arrangement, not a complete safety specification. Protection depends on the conductors, bonding, protective devices and verification associated with that arrangement.

The first IEC letter describes the source connection to earth; the second describes the connection of exposed conductive parts. C and S identify combined or separate neutral and protective functions.
TN systems provide a metallic earth-fault return path. Reliable disconnection still requires verified fault-loop impedance and coordination with the protective device.
TT installations normally use residual current devices for fault protection because the electrode-and-soil return path often limits fault current below the level needed for rapid overcurrent operation.
TN-C and TN-C-S introduce dependence on a PEN conductor. Separating neutral and PE downstream does not eliminate the consequences of an upstream PEN failure.
IT systems can maintain supply after a first earth fault only when first-fault conditions are satisfied, insulation is monitored and faults are located and cleared. A second fault requires effective automatic disconnection.
No arrangement is universally safest. Selection must address local rules, continuity requirements, fault protection, converter leakage currents and the different demands of power-frequency earthing and high-frequency EMC bonding.

Earthing systems: IEC notation and fundamentals

IEC earthing notation describes the relationship between the supply, earth and exposed conductive parts. In the common transformer-fed LV arrangements discussed here, the relevant source point is usually the transformer neutral or star point. The notation must be interpreted together with the actual circuit and protective measures, rather than from conductor count alone. [1, 2] This article concerns LV AC power distribution and the supply interfaces of machinery, drives and electronic equipment. It is not a design guide for MV substation earthing, lightning earth grids, PCB signal returns or protective measures for every special location. National installation rules, distributor requirements and equipment instructions determine the permitted implementation. IEC 60364-1:2025 replaced the 2005 edition and revised the series’ fundamental principles, scope and definitions. Its published changes include greater attention to standby supplies, prosumer installations and periodic verification over the installation lifetime. An IEC publication does not by itself establish the implementation date of a national adoption. [1]

The first letter: source connection to earth

T, from terra, indicates that one point of the supply system is connected directly to earth. For the common arrangements considered here, this is the source neutral point.
I indicates that live parts are isolated from earth, or that one source point is connected to earth through a high impedance. An isolated source still has practical resistive and capacitive leakage paths to earth. [2]

The second letter: exposed conductive parts

An exposed conductive part is a conductive part of equipment, such as an accessible metal enclosure, that is not normally live but can become live following an insulation fault. The second letter identifies its relationship to earth and the source.

T indicates that exposed conductive parts are connected to the installation earthing arrangement rather than to a supply protective conductor that establishes a TN return path.
N indicates that exposed conductive parts connect through protective conductors to the earthed point of the supply system. This connection is not permission to join an equipment enclosure to any convenient downstream neutral terminal. [2, 3]

A local electrode is not what distinguishes every TN installation from TT: TN installations can also require local or supplementary electrodes. The decisive distinction is the protective connection to the source’s earthed point and the associated fault-return arrangement. Protective equipotential bonding connects relevant conductive parts to reduce potential differences; it does not replace the required protective conductor. [2, 3]

Additional letters: combined and separate conductors

C means that protective and neutral functions are combined in a PEN conductor. S means that the protective conductor, PE, and neutral conductor, N, are separate. TN-C-S therefore identifies an upstream combined section followed by a section with separate protective and neutral conductors. Once separated, N and PE must not be reconnected downstream. [2, 5] The three principal families are TN, TT and IT. TN-C, TN-S and TN-C-S are implementations of the TN family, not separate definitions of source earthing.

TN-C system: combined PEN and its risks

In a TN-C section, the source is directly earthed and one PEN conductor performs both the neutral and protective functions. Combining these functions reduces conductor requirements, but makes PEN integrity a critical safety dependency. Figure 1 identifies the original TN-C arrangement.

TN-C earthing arrangement with combined protective and neutral functions in a PEN conductor — Figure 1. TN-C earthing system.

During normal operation, the PEN can carry load-unbalance and harmonic currents as well as protective-conductor current. During an earth fault, it provides the metallic return connection to the source. Its continuity, connections, cross-section and mechanical protection must therefore satisfy both functions, with the protective function taking priority. [2] If the PEN becomes open-circuit upstream, connected metalwork can rise to a dangerous potential relative to the surrounding earth. The actual voltage depends on connected loads, phase balance, earthing and alternative conductive return paths. It can approach phase-to-earth voltage; it is not necessarily identical at every installation or under every fault condition. Diverted neutral current through bonded services can also create hazards. [6] TN-C is not subject to a single worldwide prohibition inside all buildings. Its use is restricted by the applicable national rules and by the nature of the circuit. Where PEN conductors are permitted, the commonly specified minimum cross-sections are 10 mm² copper or 16 mm² aluminium; satisfying this minimum alone does not establish that a particular application is permitted. Portable equipment and small final circuits require separate protective arrangements. Some jurisdictions prohibit PEN conductors in consumers’ installations. [2, 5, 6] RCD fault protection is not applied to a TN-C section containing a PEN conductor. Where RCD protection is required in a TN-C-S arrangement, separation into N and PE must occur upstream of the RCD, with PE outside the device’s residual-current sensing path. A PEN must not be treated as an ordinary neutral that may be disconnected independently of its protective function. [2, 3]

TT system: local earth electrode and RCD dependence

In TT, the source has an earthed point, while the installation’s exposed conductive parts connect to its earthing arrangement rather than a supply PE or PEN providing a TN return path. Figure 2 shows the original TT arrangement. TT is used where a distributor does not provide a protective-earth terminal, or where the installation design and local rules call for this arrangement. [2, 4]

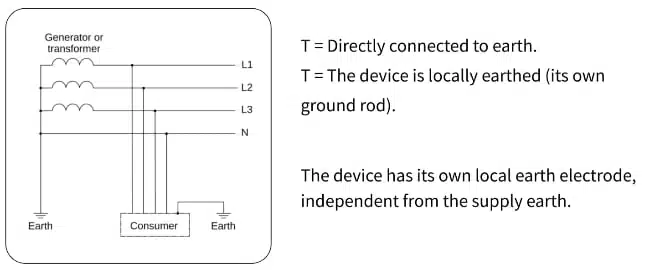

TT earthing arrangement with source earthing and a local installation earth electrode — Figure 2. TT earthing system.

A phase-to-enclosure fault normally returns through the installation protective conductors, installation electrode, soil and source earthing arrangement to the source winding. The electrode-and-soil path commonly has too much impedance to produce the current needed for rapid operation of a fuse or miniature circuit-breaker. Fault protection therefore normally relies on an RCD coordinated with the earthing resistance and required disconnection time. [4] RCD is the general term for a residual current device. An RCCB provides residual-current protection without integral overcurrent protection; an RCBO combines residual-current and overcurrent protection. An RCCB installation consequently also needs appropriate overload and short-circuit protection. Rated current and rated residual operating current are different selection parameters. The electrode, protective connections and RCD must work as a coordinated protective measure. Choosing a more sensitive device does not excuse an unreliable earth connection, and achieving a low electrode resistance does not remove the need to verify RCD operation. Different electrode groups and circuit arrangements must be assessed with their corresponding protective devices. [4, 8] A 30 mA RCD is a familiar choice where additional protection is required, but 30 mA is not a universal setting for every TT feeder or every industrial load. Device sensitivity, operating time, waveform capability and selectivity must suit the circuit and applicable rules. The protection criterion is developed below rather than replaced by a generic electrode-resistance target. [3, 4, 9] TT avoids using the distributor’s PEN as the installation protective conductor. That can be valuable where exposure to a broken-PEN hazard is unacceptable, provided the TT arrangement is correctly designed and separated from other earthing systems. It does not establish a universal safety advantage or disadvantage relative to a correctly implemented TN arrangement. [6]

TN-C-S system: PEN separation and PME

TN-C-S combines an upstream PEN section with downstream separate N and PE conductors. The separation point is often at the service origin, but its location depends on the supply and installation design. Figure 3 shows the original combined-to-separate arrangement. [2]

TN-C-S earthing arrangement with an upstream PEN conductor separated into neutral and PE — Figure 3. TN-C-S earthing system.

PME, protective multiple earthing, is a form of TN-C-S supply earthing in which the distributor connects the PEN to earth at multiple locations. PME and TN-C-S are therefore related terms, not exact synonyms: TN-C-S describes the conductor arrangement, while PME identifies a particular supply-earthing implementation. [6] For a downstream phase-to-enclosure fault, current returns through PE to the separation point, then through the upstream PEN to the source’s earthed point and winding. It does not normally return through the downstream load neutral. This metallic loop often enables overcurrent devices to provide fault protection, but its impedance and the device operating characteristic must still be checked. [3, 5] After separation, N and PE remain separate throughout that downstream section. Reconnecting them at a machine, socket, filter or sub-distribution board can divert normal neutral current onto protective conductors and bonded metalwork. RCDs must be installed downstream of the separation point, with the appropriate live conductors passing through the device and PE kept separate. [2, 3, 5] The upstream PEN remains a shared dependency. If it opens, hazardous potentials and diverted neutral currents can appear on downstream bonded metalwork even though the building contains separate N and PE conductors. Do not assume that an ordinary downstream RCD detects or removes this supply-side condition: it is not a dedicated open-PEN protective device. [6] Multiple earthing and protective bonding mitigate particular risks but do not guarantee that metalwork remains at the surrounding earth potential after every PEN failure. Outdoor equipment and other situations allowing simultaneous contact with bonded metalwork and earth require particular assessment. The permitted solution depends on the application and local rules. [6]

TN-S system: fully separate neutral and PE

In TN-S, neutral and protective functions remain separate throughout the system being described. Exposed conductive parts connect to the source’s earthed point through a dedicated protective path, as represented by the original arrangement in Figure 4. There is no PEN within that TN-S system. [2]

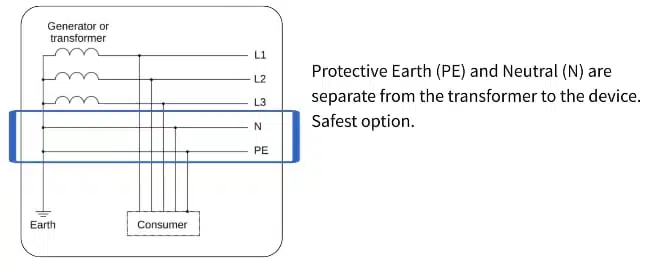

TN-S earthing arrangement with separate neutral and protective conductors from the source — Figure 4. TN-S earthing system.

The earth-fault loop runs from the source winding through the phase conductor to the fault, then through the protective path to the source’s earthed point. Soil is not the intended primary return path. A suitably low loop impedance allows coordinated fuses or circuit-breakers to disconnect the fault within the required time. [3] Separating PE from the normal load-neutral path avoids the combined-conductor failure mode and reduces the circulation of normal neutral currents through protective bonding. This is useful in industrial plants, data centres and installations containing sensitive electronic equipment. It does not make PE current-free: filters, cable capacitance and equipment leakage can produce protective-conductor current during normal operation. [2, 8, 11] TN-S does not guarantee safety merely by providing a separate conductor. An interrupted PE, excessive loop impedance, unsuitable protective device or poor bonding can still defeat the intended protection. High earth-fault currents also require adequate breaking capacity, conductor thermal withstand and coordination. [3, 8] The additional protective path can increase installation cost compared with a permitted combined-conductor feeder. Conversely, not every feeder needs a neutral: a three-phase load that does not use a distributed neutral can be supplied with three phase conductors and PE, subject to its equipment requirements. A final cable with separate N and PE does not prove that the whole supply is TN-S. The upstream network may contain a PEN section, making the overall arrangement TN-C-S. Confirm the distributor’s declared arrangement rather than classifying the supply from the visible service cable alone. [6]

IT system: continuity-focused special case

IT separates the source-earthing strategy from that used in TN and TT: the source is isolated from earth or connected through a high impedance, while exposed conductive parts remain earthed. Its main benefit is the possibility of maintaining service after a first insulation fault. Figure 5 retains the original IT arrangement. [2, 7]

IT earthing arrangement with an isolated or impedance-earthed source and earthed exposed conductive parts — Figure 5. IT earthing system.

IT is used in selected continuity-critical applications, including medical IT circuits, mining and industrial processes. The special requirements of those applications remain additional to the basic earthing classification; not every circuit in a hospital or process plant is necessarily IT. [7, 8, 12] The first phase-to-earth fault does not normally establish the low-impedance source-return loop found in TN. However, the first-fault current is not zero and is not determined solely by the intentional source impedance. Cable capacitance, equipment insulation, filters and other connections to earth also contribute. Network expansion or added line-to-earth capacitance can therefore change the first-fault conditions. [2, 7] Continued operation requires the first-fault touch-voltage condition to be satisfied, permanent insulation monitoring and an effective response to the alarm. An insulation monitoring device, IMD, identifies deteriorating insulation or the first fault; maintenance personnel must locate and clear the problem rather than treating the alarm as permission for indefinite operation. [7, 8] A second earth fault on a different live conductor can produce a high-current fault through the protective network. Where neutral is distributed, the second affected conductor can be neutral as well as another phase. The disconnection arrangement depends on how exposed conductive parts are interconnected and earthed. Its performance must be verified for the actual network. [7, 8] Filters, surge protection and insulation-monitoring equipment must also suit IT operation. Check equipment instructions before connecting a product designed for a solidly earthed supply. IT is a deliberate continuity strategy requiring monitoring and maintenance capability, not simply a TN supply with its neutral-earth connection removed.

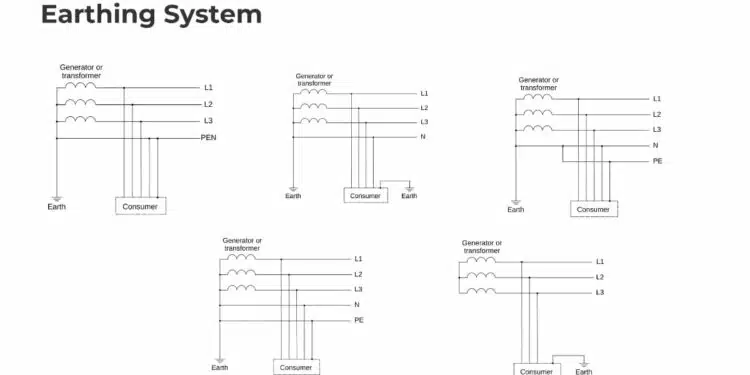

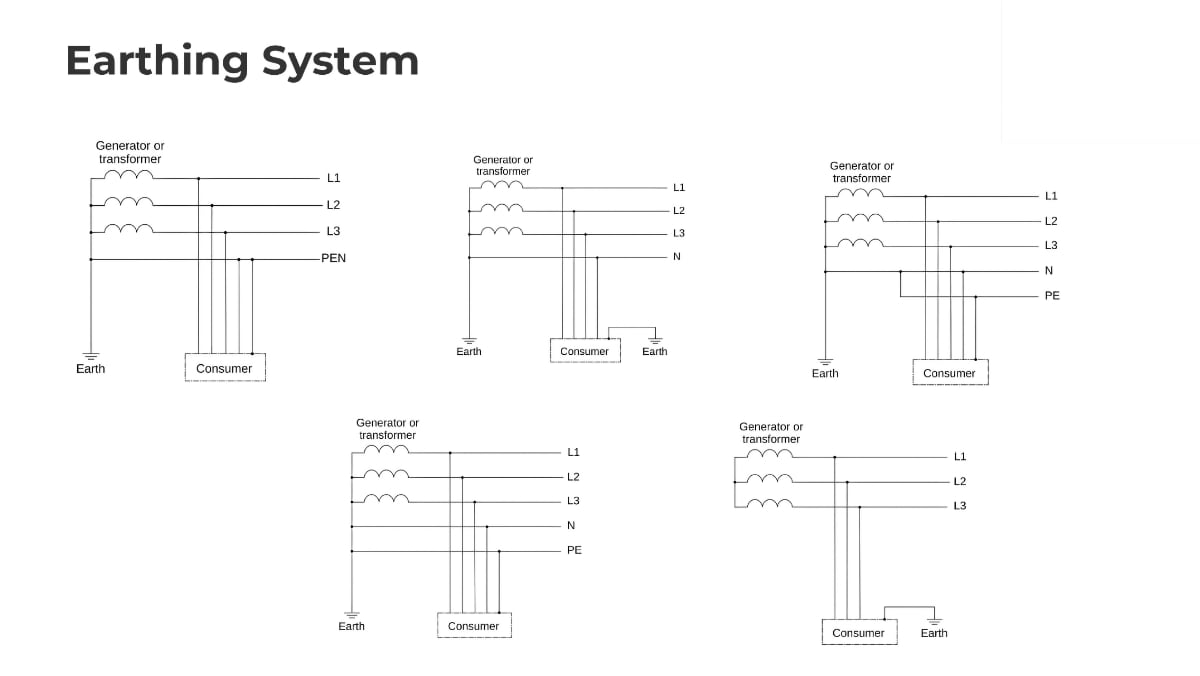

Comparative overview of earthing systems

The arrangements differ in fault-return paths, conductor dependencies and operating philosophy. Table 1 compares these properties without assigning a universal safety ranking. A compliant solution combines the chosen arrangement with suitable protection, bonding, equipment and verification. [2, 8] TN-C economises on conductors where permitted but combines protective and neutral functions. TT normally relies on RCD-based fault protection and an installation electrode. TN-C-S provides separate downstream PE while retaining upstream PEN dependence. TN-S avoids a combined conductor within the defined system. IT prioritises continuity after a first fault under monitored conditions.

Comparison table of earthing systems

These application examples are indicative, not permissions to use an arrangement in every listed environment. Local supply conditions and special-location requirements take precedence. [2, 6, 8]

System	Source earthing	Exposed conductive parts	Neutral and PE arrangement	Typical applications	Main advantages	Main limitations and checks
TN-C	Source point directly earthed	Connected to the earthed source point through PEN	Protective and neutral functions combined in the section described	Permitted distribution and fixed-installation sections	Reduced conductor requirement	PEN continuity is safety-critical; application and cross-section restrictions; no RCD fault protection in the TN-C section
TT	Source point directly earthed	Connected to installation earthing rather than a supply TN protective path	Separate installation PE; neutral distributed where required	Public LV supplies without a provided PE and other deliberately designed TT installations	Installation protection does not use the distributor’s PEN as its protective conductor	Normally requires coordinated RCD fault protection; electrode resistance, leakage and disconnection must be verified
TN-C-S	Source point directly earthed	Connected through downstream PE and upstream PEN	PEN upstream; N and PE separate after the defined split	Residential, commercial and industrial supplies where permitted; PME is one implementation	Metallic fault-return path and separate downstream protective conductor	Upstream PEN dependence remains; no downstream N–PE reconnection; RCDs follow the split
TN-S	Source point directly earthed	Connected to the earthed source point through a separate protective path	N and PE separate throughout; N need not be distributed to every load	Industrial and commercial installations, private-transformer supplies and sensitive-equipment networks	No PEN in the defined system; separation of load-neutral and protective functions	PE continuity, loop impedance and device coordination remain essential; additional protective-path cost
IT	Source isolated from earth or connected through high impedance	Earthed and protectively interconnected as required	PE provided; neutral distribution depends on the design	Selected medical, mining and continuity-critical industrial circuits	Can maintain service after a first earth fault when required conditions are satisfied	Insulation monitoring and fault response; network capacitance; equipment compatibility; effective second-fault disconnection

Table 1. Earthing arrangements, principal dependencies and application considerations. [2–8]

Protection criteria and verification

Earthing topology identifies the likely fault path, but protective performance requires quantitative checks. The following relationships summarise the principal coordination conditions; they do not replace the applicable disconnection-time requirements, installation rules or equipment instructions.

TN: fault-loop impedance and protective-device operation

For a TN circuit, Z_s is the complete earth-fault loop impedance, including the source, phase conductor and protective return path. U₀ is the nominal voltage between phase and earth, and I_a is the current that guarantees operation of the selected protective device within the required time. Their coordination condition is Eq. (1). [3]

Z_{s} I_{a} \leq U_{0} \tag{1}

I_a is not simply the device’s rated load current. Obtain it from the relevant time-current characteristic and settings, including applicable tolerances. Use a design and verification method that accounts for minimum supply conditions, conductor temperature and the impedances included in the calculation. A low measured electrode resistance is not a substitute for checking the metallic fault loop. [3]

RCDs can also provide fault protection in appropriate TN-S and downstream TN-C-S circuits, and additional RCD protection can be required independently of whether overcurrent devices satisfy Eq. (1). The presence of a metallic return path does not eliminate all RCD requirements. [3]

TT: electrode resistance and RCD sensitivity

For TT protection using an RCD, R_A represents the resistance of the installation earth electrode and protective connection to exposed conductive parts, I_Δn is the RCD’s rated residual operating current, and U_L is the applicable conventional touch-voltage limit. The coordination relationship is Eq. (2). [4]

R_{A} I_{\Delta n} \leq U_{L} \tag{2}

The commonly used value of U_L is 50 V AC, with lower limits applying in some installations or locations. Use the value required by the applicable rules. Eq. (2) is not a statement that actual enclosure voltage cannot exceed U_L during a fault, and satisfying it alone does not prove that the required disconnection time is met. [4]

The electrode design must remain effective over its service life. Soil resistivity, electrode geometry, corrosion, connections and seasonal conditions matter; there is no universal resistance value for a single rod or for a group of rods. Specify a justified design target and verification method rather than assuming a generic site value.

IT: first-fault touch voltage

For the first earth fault in IT, I_d is the first-fault current, including the effects of the source earthing impedance and the network’s resistive and capacitive paths. Using the applicable R_A and U_L, the first-fault condition is Eq. (3). [7]

R_{A} I_{d} \leq U_{L} \tag{3}

Check Eq. (3) for the actual connected network, not an idealised source without cable or filter capacitance. Continued service also requires insulation monitoring, alarm response and fault clearance. Second-fault disconnection is a separate verification and must not be inferred from satisfactory first-fault behaviour. [7, 8]

Practical issues in industrial installations

Industrial installations add converters, long cables, distributed equipment and substantial EMC filtering to the basic earthing problem. The design must distinguish normal protective-conductor current, insulation-fault current and high-frequency common-mode current rather than treating them as one quantity.

Three-phase TN feeders without a distributed neutral

Many three-phase motors and converter inputs do not require a distributed neutral. They can use three phase conductors and PE, provided every connected function is compatible with that supply. A star-connected motor can have an internal star point without requiring a supply neutral; the decisive question is whether the equipment needs a connection to the source neutral.

Omitting an unnecessary neutral can reduce conductor material and cable requirements on long feeders. It does not alter the need for PE continuity, fault-loop verification or appropriate overcurrent protection. Check auxiliary supplies, controls, cooling equipment and maintenance outlets before specifying a no-neutral feeder.

PE must not carry intentional load-neutral current. It can nevertheless carry normal equipment leakage and common-mode current, particularly with EMC filters and variable-speed drives. The absence of a neutral conductor is therefore not evidence that the protective conductor carries current only during faults. [2, 11]

For TN-S or the separated part of TN-C-S, preserve the designed source bonding and protective return path. Do not add a neutral–PE link in a downstream cabinet to improve a loop measurement or to make a filter appear to operate correctly. Such a link changes current paths and can defeat the intended separation. [2, 5]

TT with converters, filters and leakage current

TT is not restricted to small residential or rural supplies. It can be engineered for industrial service, but the combination of RCD-based fault protection and converter-related leakage can make protection architecture and selectivity more demanding. Where a suitable TN supply is available, its metallic fault-return path can simplify some of these coordination tasks. [8, 10]

EMC capacitors and cable capacitance produce normal protective-conductor current. Assess the aggregate current of the connected installation, including starting, switching and operating conditions, rather than multiplying a single nominal figure without considering the circuit.
Subdivide circuits and coordinate residual-current sensitivity and time delay where permitted. Raising the trip threshold or adding delay must not compromise required fault protection or additional protection.
Choose RCD waveform capability for the converter topology. Smooth DC and mixed-frequency residual currents require more than a simple comparison of the device’s mA rating.
Check the manufacturer’s leakage-current data and installation instructions for the actual filter, drive, cable length and supply configuration. Never disconnect PE to suppress nuisance tripping. [8–11]

RCD type A detects pulsating DC residual current in addition to sinusoidal AC. Type F addresses specified composite residual currents associated with single-phase variable-speed applications. Type B also detects smooth DC and is commonly relevant to three-phase rectifier and converter loads. Selection must follow the equipment requirements and the device’s documented detection characteristics; not every electronic load requires the same RCD type. [9]

DC leakage can also affect other RCDs in the protection hierarchy. A suitable type B device on one circuit does not automatically establish that an upstream device remains immune to DC blinding. Check series coordination and, where relevant, interactions between parallel circuits. This assessment matters for both TN and TT, although their return paths produce different interactions. [10]

Safety earthing, EMC bonding and surge protection

Power-frequency earth-electrode resistance and high-frequency bonding impedance describe different aspects of the installation. A satisfactory electrode measurement does not prove that a long protective wire offers a low-impedance return for switching-frequency noise. Conversely, a good chassis bond does not establish compliant shock protection. [11]

For EMC, use the filter manufacturer’s mounting arrangement, short connections and effective metal-to-metal chassis bonding. Separate filtered and unfiltered wiring so that coupling does not bypass the filter. Local return-path geometry and connection inductance can dominate high-frequency performance; not all common-mode current travels through the soil to the transformer electrode. [11]

Y capacitors create intentional capacitive paths across the relevant insulation boundary or to the protective/chassis reference. Their safety class, working voltage and contribution to leakage or touch current must suit the equipment application. Common-mode chokes act in the live-conductor path; they do not require a separate earth connection simply because they suppress common-mode interference.

Surge protective devices must be selected and connected for the actual supply arrangement. Check the manufacturer’s declared suitability for TN, TT or IT, protection modes, continuous operating voltage, temporary overvoltage behaviour, required backup protection and connection instructions. A TN label does not by itself establish a predictable voltage at the protected equipment during a surge.

For IT in particular, confirm that filter and surge-protection connections are permitted by the equipment manufacturer and remain suitable under first-fault conditions. Altering or disconnecting internal EMC components is not a generic field remedy; it requires an approved equipment configuration and renewed assessment of the resulting EMC and safety performance.

Typical design and installation mistakes

A PE terminal marking identifies an intended function, not proof of an effective protective path. Commissioning must verify that the installed conductors, source connection and protection actually deliver the designed behaviour. [3, 8]

Failing to establish the maximum permissible fault-loop impedance or other supply conditions at a machine’s incoming terminals. The installation and machine documentation must together provide enough information to verify the selected protective measure.
Connecting equipment to a cabinet PE bar without verifying continuity back to the intended source protective connection.
Assuming that a missing TN protective return simply creates a usable TT arrangement. An unintended soil return is a defect unless the resulting protective measure is deliberately designed and verified, including RCD protection where required.
Reconnecting N and PE after their separation, including inside downstream distribution boards or equipment.
Using electrode resistance as a substitute for TN loop impedance, or using either measurement as proof of high-frequency EMC performance.
Specifying an electrode target without soil information, an installation method, allowance for seasonal conditions or a maintenance and verification plan.
Adding filters, drives or cable length without reassessing protective-conductor current, RCD coordination or IT network capacitance. [2–5, 7–11]

Design, selection and commissioning checklist

Earthing is an installation-level decision, while many of its constraints appear in component and equipment documentation. Use the following checklist to connect supply design, purchasing specifications and commissioning evidence.

Confirm the supply arrangement: obtain the distributor or transformer documentation, identify every source and locate the designed earthing connections and any PEN separation. Reassess the arrangement for standby or alternative supply operation. [1, 6]
Define the protective measure: record the applicable disconnection requirements and the TN loop, TT electrode/RCD or IT monitoring and second-fault checks.
Compare protective-device data: rated current, voltage, poles, breaking capacity, time-current curves, settings and coordination. For RCDs, also compare I_Δn, operating delay, waveform type, frequency response and documented immunity to the expected residual-current environment. [3, 4, 9, 10]
Compare filter data: supply topology, neutral requirement, rated current and voltage, temperature derating, leakage-current test conditions, attenuation data, safety approvals and required chassis connection. Do not select solely from a nominal insertion-loss curve. [11]
Compare surge-protection data: declared earthing-system compatibility, connection modes, continuous operating voltage, protective level, temporary overvoltage capability and backup protection. Follow the complete installation instructions rather than treating an MOV or other internal component as a complete installation SPD.
Prefer a catalogue filter when it satisfies the electrical, leakage, mechanical and safety requirements. Consider a custom or semi-custom solution when those requirements cannot be met together, and define qualification evidence and change-control requirements before ordering.
Verify the installed system: inspect bonding and conductor separation; confirm protective continuity; perform the applicable loop, electrode, insulation, RCD and IMD checks using methods suitable for connected electronics. Confirm that the protective devices operate as designed. [3, 7, 8]
Retain the evidence: record source configurations, settings, test results, equipment limitations and the inspection and maintenance plan. Repeat the relevant assessment after extensions or changes affecting protection, leakage or network capacitance. [1, 7, 8]

Conclusion

TN-C, TT, TN-C-S, TN-S and IT describe different source connections and protective return paths. Their engineering significance lies in how faults are detected and cleared, which conductors are safety-critical and what operating conditions must be maintained. The designation alone does not establish a safe installation.

TN arrangements require an effective metallic protective path and coordinated disconnection; TN-C and TN-C-S also require explicit attention to PEN integrity. TT normally combines installation earthing with RCD-based fault protection. IT can preserve continuity after a first fault, but only with satisfactory first-fault conditions, insulation monitoring, maintenance response and second-fault protection.

For industrial equipment, assess converter residual currents, filter and SPD compatibility, and high-frequency bonding separately from power-frequency earthing. Match the arrangement to the supply, application and local requirements, then verify the installed protective measure rather than relying on a generic safety ranking or assumed earth-resistance value.

FAQ

These questions summarise the main distinctions relevant to LV installation design and equipment selection. The answers describe general principles; permitted arrangements and verification requirements depend on the applicable installation rules.

What do the letters in TN-C, TN-S, TT and IT mean?

The first letter describes the source connection to earth: T means a direct connection and I means isolation or a high-impedance connection. The second describes exposed conductive parts: T indicates installation earthing and N a protective connection to the earthed source point. C and S mean combined or separate neutral and protective functions.

Why is a broken PEN conductor dangerous in TN-C and TN-C-S?

A PEN conductor provides both neutral and protective functions. If it opens upstream, bonded metalwork can rise to a dangerous voltage relative to surrounding earth, and neutral current can take unintended paths through bonded services. Separate downstream neutral and PE conductors do not remove this upstream dependency, and an ordinary RCD is not dedicated open-PEN protection.

Why do TT installations normally need RCD fault protection?

A TT earth fault normally returns through installation earthing, soil and the source earthing arrangement. This loop often limits current below the level needed for rapid fuse or circuit-breaker operation. An RCD detects residual current instead. Its sensitivity and operating time must be coordinated with electrode resistance, circuit requirements and the expected residual-current waveform.

Are TN-C-S and PME the same earthing arrangement?

TN-C-S describes a system with an upstream combined PEN conductor and downstream separate neutral and PE conductors. PME, protective multiple earthing, is one implementation of TN-C-S supply earthing, with multiple earth connections along the distributor’s PEN. The terms are related but not interchangeable descriptions of every possible TN-C-S arrangement.

Can an IT system continue operating after an earth fault?

An IT system can maintain supply after a first earth fault when its first-fault current and earthing satisfy the required touch-voltage condition. Insulation monitoring must signal the fault, and maintenance personnel must locate and clear it. Cable and filter capacitance affect first-fault current. A second fault on another live conductor requires effective automatic disconnection.

Which earthing system is best for industrial drives and EMI filters?

There is no universal choice. A TN arrangement with a verified metallic protective path can simplify fault protection and some RCD coordination tasks. TT remains possible with suitable protection and leakage management. IT needs compatible filters and monitoring. In every case, assess converter residual-current waveforms, protective-conductor current and local high-frequency chassis bonding.

How to evaluate an LV earthing arrangement

This procedure is a design and verification workflow for competent electrical professionals. Inspection and testing must use appropriate safe-working methods and must not involve opening a protective connection on an energised installation.

Evaluate an LV earthing arrangement by confirming the supply, verifying fault protection and checking the installed system.

Establish the supply and application requirements
Obtain supply documentation and identify the applicable national rules, equipment requirements and continuity needs. Include alternative and standby supply modes. Confirm the earthing arrangement with the distributor or source designer rather than relying only on visible cable cores.
Map the source, protective paths and separation points
Mark source earthing, installation electrodes, protective bonding and every PE, N and PEN section on the drawings. Locate any PEN separation. Confirm that downstream neutral and PE remain separate and that the protective return does not depend on an undocumented connection.
Verify the protection criteria
For TN, assess fault-loop impedance against the selected protective-device characteristic. For TT, coordinate electrode resistance, RCD sensitivity and disconnection time. For IT, establish first-fault conditions, insulation monitoring and effective second-fault disconnection for the actual network.
Check converters, filters and surge protection
Review normal leakage, possible DC and mixed-frequency residual currents, filter mounting and supply compatibility. Select suitable RCD types and verify coordination with other devices. Confirm that filters and surge protection are approved for the actual TN, TT or IT configuration.
Inspect and test the installed protective measure
Have competent personnel verify conductor continuity, protective bonding, neutral separation and the applicable loop, electrode, insulation and protective-device performance. Use test methods compatible with connected electronics and safe-working procedures. Resolve discrepancies before accepting the installation.
Document operation and future changes
Record the confirmed arrangement, calculations, device settings, test results and equipment limitations. Define inspection intervals and the response to insulation-monitoring alarms. Reassess protection after changes to sources, feeders, converters, filters or cable lengths that affect fault paths, leakage or network capacitance.
