TDK Inductors: Miniaturized transponder coil with high sensitivity for tire pressure monitoring systems

13.3.2018
Reading Time: 1 min read
A A

source: TDK news

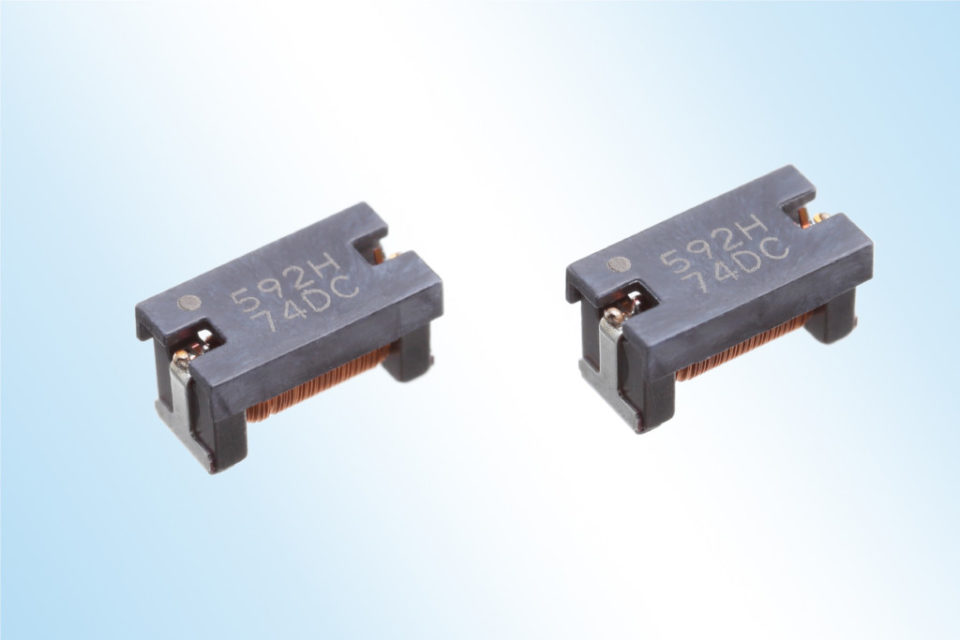

TDK Corporation presents the miniaturized TPLC553030-592H automotive transponder coil for tire pressure monitoring systems (TPMS) that operate at a center frequency of 125 kHz.
With its dimensions of just 5.5 mm x 3.0 mm x 3.0 mm, the new component features a footprint that is 30 percent smaller than its predecessor. Thanks to its optimized core geometry and material, the miniaturized component achieves a high sensitivity of nearly 25 mV/μT, which allows TPMS initialization at the same distance as its 8-mm predecessor.
The new transponder coil has an inductance of 5.89 mH with a minimum Q value of 35 and a maximum DC resistance of 70 Ω. The AEC-Q200 qualified and RoHS-compatible component features a wide temperature range from -40 °C to +125 °C.

RelatedPosts

Phillips Medisize Launches TheraVolt Medical Connectors

The Connector Industry is Undergoing Transformation

TDK Presents Various Large-Size Ferrite Cores for Industrial Applications

Main applications

  • Tire pressure monitoring systems (TPMS)

Main features and benefits

  • 30 percent smaller footprint than its predecessor
  • High sensitivity of nearly 25 mV/μT despite miniaturization
  • Qualified to AEC-Q200

Key data

Type Dimensions
[mm]
Inductance
[mH] @125 kHz
Q
@125 kHz
DC resistance
[Ω]
TPLC503030-592H 5.5 x 3.0 x 3.0 5.89 ±3% 35 (min.) 70 (max.)
