Circuit Protection Technology Annual Dossier

15.5.2026
Reading Time: 5 mins read
A A

Passive Components Blog has released the 2026 Annual Circuit Protection Technology Dossier, a 40‑page comprehensive analysis about circuit protection components and how these devices evolved in period from May 2025 to May 2026.

Overview

In 2025, the global circuit protection market was valued at USD 60.4 billion, growing at a 5.8% CAGR. The semiconductor protection segment is expanding rapidly, with ESD devices at 8.84% CAGR, SMD TVS diodes at 7.9% CAGR, and EV fuses at 12.8% CAGR. Littelfuse reported a 9% increase in 2025 net sales, and Eaton achieved record Q4 results, highlighting the sector’s strategic importance.

RelatedPosts

Silicon Capacitors and Integrated Passives Dossier Report 10/26

Passive Components for Industrial Automation and Robotics (Dossier Report 08/26)

AI Hardware Demand for Passive Components Dossier

This Annual Circuit Protection Dossier (May 2025 to May 2026) is divided into eight sections.

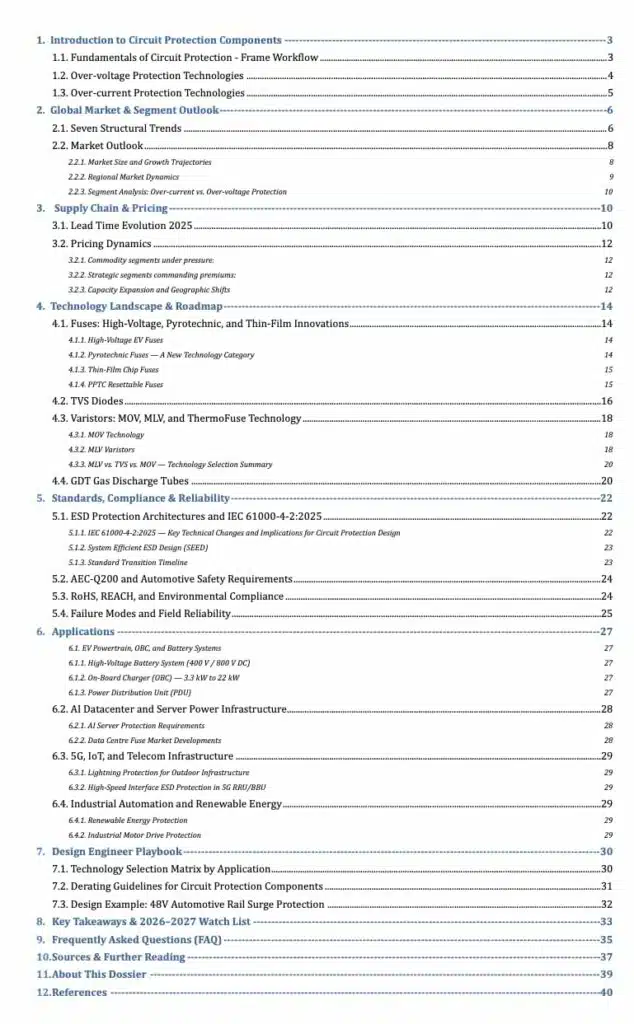

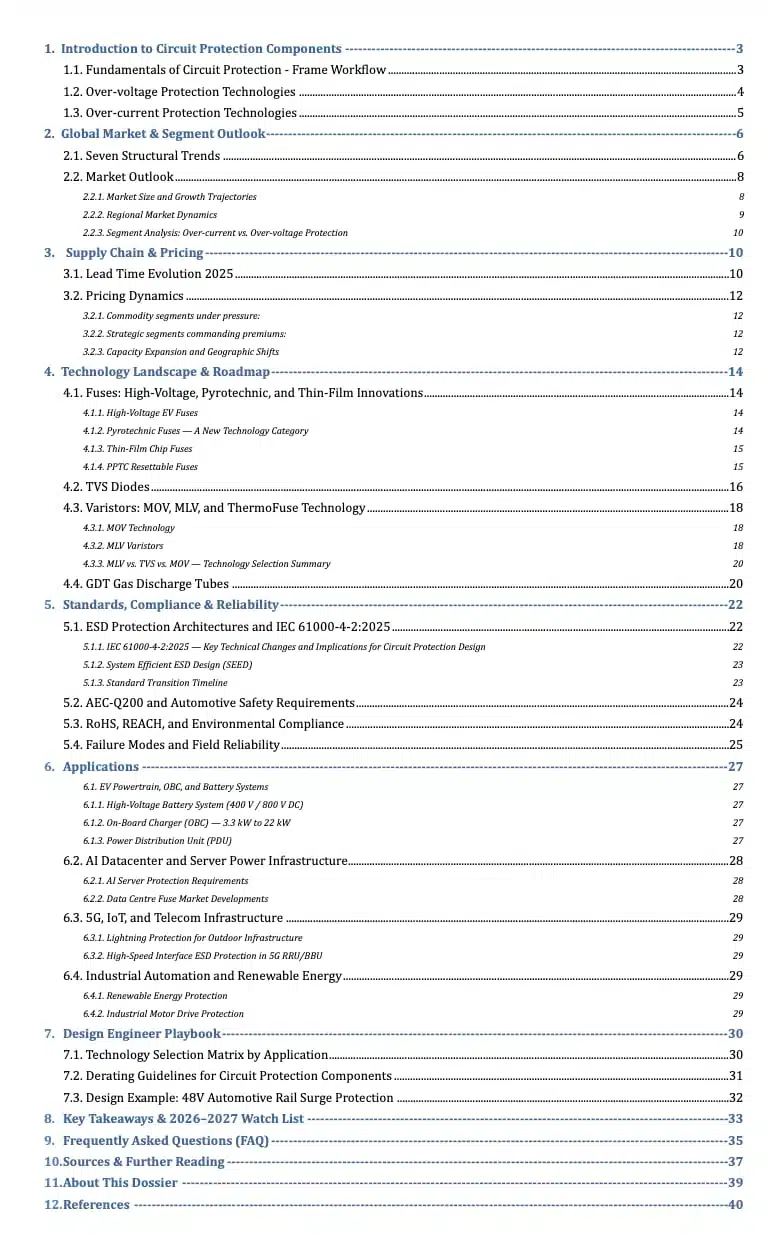

Key sections include:

  • Design Engineer Playbook: Offers technology selection, protection coordination, and a 48 V automotive rail surge protection example.
  • Supply Chain & Pricing: Analyzes lead times, pricing under tariffs, and capacity shifts.
  • Applications: Covers protection needs for EVs, AI datacenters, 5G/IoT, and industrial automation.
  • Standards, Compliance & Reliability: Discusses IEC 61000-4-2:2025, AEC-Q200, RoHS/REACH, and failure mode analysis.
  • Technology Landscape & Roadmap: Examines major technologies and their alignment with IEC 61000-4-2:2025.
  • Global Market & Segment Outlook: Provides market sizing, regional dynamics, and segment analysis.
  • Seven Structural Trends: Identifies key shifts like 800 V/1,000 V EV fuses and GaN/SiC TVS protection.
  • Fundamentals of Circuit Protection: Introduces protection domains, technology comparisons, and design frameworks.

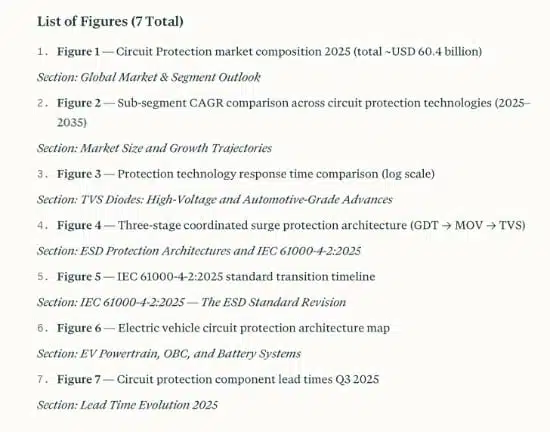

What the dossier covers

Content

  • Seven structural trends shaping 2026
    From 800 V/1,000 V EV fuse architecture adoption and the rise of active pyrotechnic disconnects to IEC 61000-4-2:2025 ESD standard revision, 48 V automotive MLV miniaturisation, coordinated multi-stage protection ecosystem design, GDT high-energy surge rating advances, and GaN/SiC-specific TVS protection requirements.
  • Hard numbers behind the shift

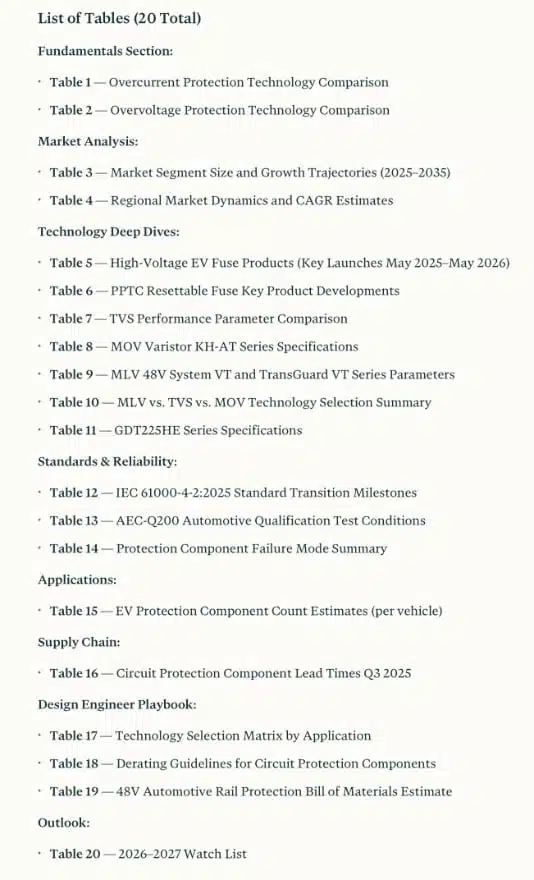

    Detailed tables quantify 2025 market size and 2035 projections by technology, including SMD TVS diodes, ESD protection arrays, PPTC resettable fuses, MOV and MLV varistors, gas discharge tubes, pyrotechnic fuses, and high-voltage EV fuses, revealing the dramatic value shift from commodity overcurrent protection toward high-margin semiconductor-based overvoltage protection.
  • AI, EV and other application chapters
    Application-focused sections dissect circuit protection requirements in AI datacenter and server power infrastructure, 400 V/800 V EV battery systems, on-board chargers and PDUs, 5G and IoT telecom infrastructure, and industrial automation and renewable energy, with concrete design examples including a worked 48 V automotive rail surge protection scheme with full bill of materials.
  • Technology landscape & roadmap
    A comprehensive technology map compares fuses (high-voltage, pyrotechnic, thin-film chip), PPTC resettable fuses, TVS diodes (unidirectional, bidirectional, GaN/SiC-grade), MOV and MLV varistors, gas discharge tubes, and polymer ESD suppressors across surge energy handling, response time, clamping voltage, capacitance, series impedance, package options and primary applications, plus adoption roadmap through 2031.
  • Qualification, compliance and reliability
    The dossier summarises IEC 61000-4-2:2025 Ed. 3.0 transition requirements and SEED design methodology implications, AEC-Q200 Rev. E automotive qualification test conditions, RoHS/REACH and environmental compliance mandates, and provides practical derating guidelines, thermal management strategies, and failure-mode analysis across all six protection technology families for long-life automotive, datacenter and industrial designs.

Who should read it

  • Component manufacturers and distributors
    Planning 2026–2030 roadmaps for high-voltage EV fuses, PPTC resettable fuses, TVS diode arrays, automotive-grade MOV and MLV varistors, GDT surge protection, and ESD suppressor arrays.
  • OEM and Tier-1 engineering teams
    Designing EV powertrains and battery management systems, AI servers and datacenter power infrastructure, 5G base stations and IoT devices, industrial motor drives and renewable energy inverters who need a consolidated view of circuit protection technologies, specifications and trade-offs.
  • Sourcing, category and product managers
    Managing lead-time risk, qualification challenges, and strategic allocation in pyrotechnic fuses, high-voltage EV fuses, and automotive-grade ESD and TVS protection components.

Why it stands apart

Unlike generic circuit protection reports that stop at high-level market sizing, the 2026 Annual Circuit Protection Dossier combines:

  • Quantitative market and CAGR data across all major protection technologies with regional dynamics and commodity vs. strategic segmentation analysis — from mature fuse markets to fast-growing ESD and EV fuse segments at 8–13% CAGR.
  • Detailed technology benchmarking (clamping voltage, surge energy, response time, capacitance, series impedance, package options, temperature ratings) across six protection technology families with side-by-side selection tables.
  • Application engineering guidance for EV powertrains, AI datacenters, 5G infrastructure, and industrial systems, including real coordinated protection design examples, derating calculations, and thermal management best practices.
  • Supply chain intelligence covering lead times, pricing dynamics (strategic vs. commodity divergence), capacity expansions, and regional shifts affecting availability and costs.

The result is a compact, high-density reference that can be read in an afternoon and used all year for strategy, design and sourcing decisions.

Availability

The Annual Circuit Protection Components Technology Dossier is available now at 699 EUR exclusively from passive-components.eu as a paid download.

To learn more about other available dossiers and purchase your copy, visit the Technology Dossiers page on the passive-components.eu blog.
