Coilcraft low-loss power inductors rated up to 44A at over 5MHz

7.6.2018
Reading Time: 1 min read
A A

Source: eeNews Europe news

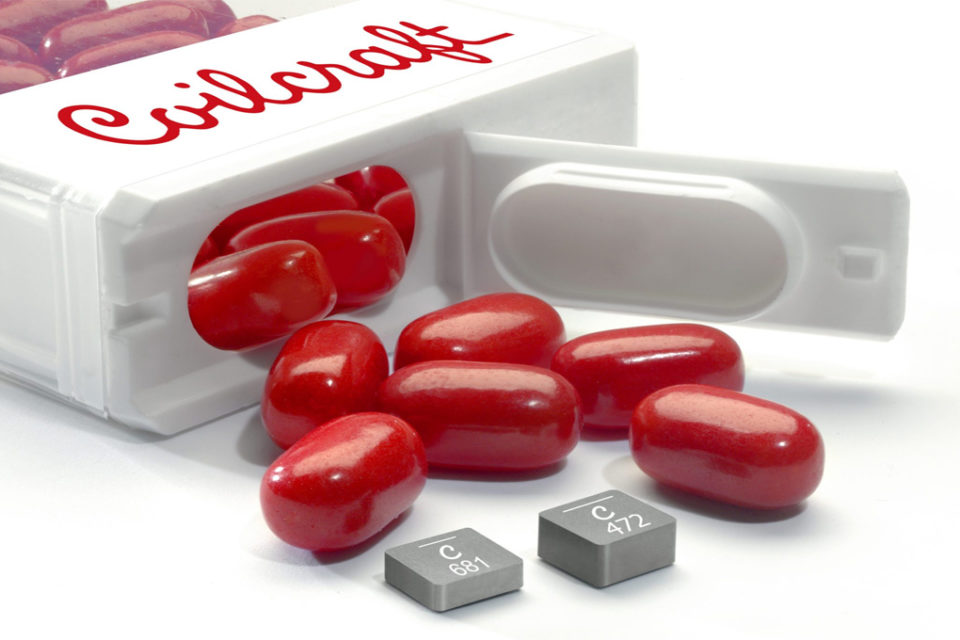

Coilcraft’s XEL50xx family of high-performance, molded power inductors offer exceptionally low DC resistance and ultra-low AC losses, greatly improving power converter efficiency at high frequencies (2 to over 5MHz) and high ripple current.
XEL50xx family inductors measure just 5.28×5.48mm with a maximum height of 3.2mm. Two models are currently available, the XEL5020 and XEL5030, delivered in six inductance values from 0.10 to 1.0 µH with current ratings up to 39A for the XEL5020 and 10 values from 0.13 to 4.7µH and current ratings up to 44A for the XEL5030. All models offer soft saturation characteristics to withstand high current spikes and have no thermal aging issues.

RelatedPosts

Murata Releases Worlds First 10µF/50V Automotive MLCC in 0805 Size

Würth Elektronik Extends High Saturation Flat-Wire Power Inductors Line

Vishay Expands Automotive High Frequency Thin Film Chip Resistors

The XEL50xx inductors are qualified to AEC-Q200 Grade 1 standards (-40° to +125°C ambient) with a maximum part temperature of +165°C, making them suitable for automotive and other harsh-environment applications. They feature RoHS-compliant, tin-silver-over-copper terminations and are halogen free.
