Vishay Power Metal Strip® Battery Shunt Resistors in 5216 Size Increase Accuracy, Lower Costs, and Provide Improved Corrosion Protection

12.2.2019
Reading Time: 1 min read
A A

Source: Vishay news

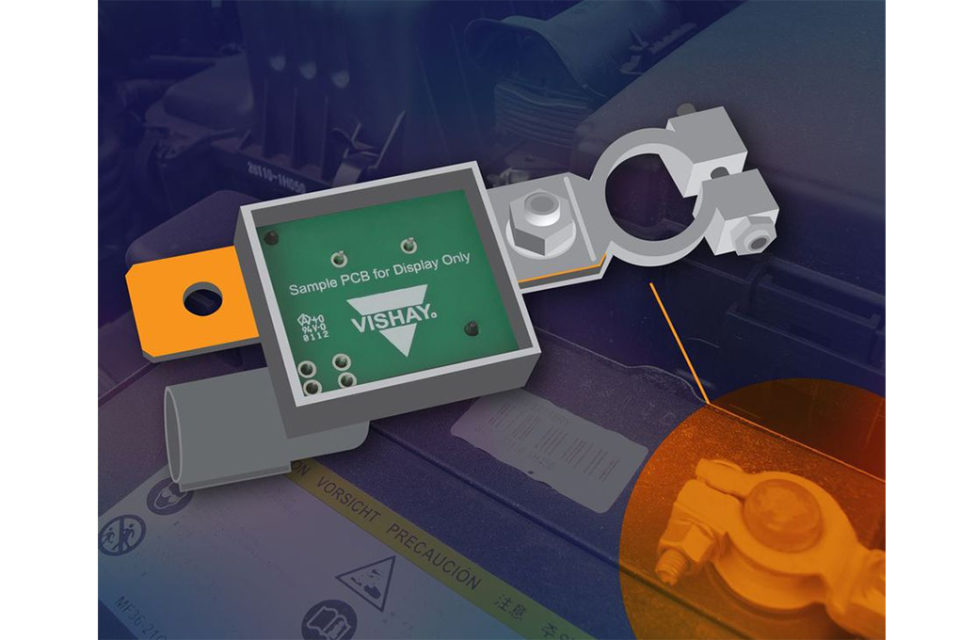

MALVERN, Pa. — Feb. 11, 2019 — Vishay Intertechnology, Inc. (NYSE: VSH) today introduced the new WSBS5216 and WSBS5216…14 12 W Power Metal Strip® battery shunt resistors in the compact 5216 case size.

RelatedPosts

TDK Releases 140C Compact Vibration Robust Automotive Aluminum Capacitors

DigiKey Presents Factory Tomorrow Season 5 Video Series

Samsung MLCCs Lineup for In-Vehicle Infotainment

With extremely low resistance of 100 µΩ, the Vishay Dale AEC-Q200 qualified devices increase accuracy and lower costs compared with Hall Effect current sensing solutions, while the optional Sn terminal plating of the WSBS5216…14 assists with PCB mounting and provides improved corrosion protection.

The devices released today feature a proprietary processing technique that produces their extremely low resistance value. This low value allows for more accurate data to determine battery charge and discharge, thus helping designers meet specific customer battery management requirements for applications in gas, diesel, hybrid, and electric cars and trucks, as well as electric forklifts, UPS systems, and other heavy industrial applications.

The WSBS5216 and WSBS5216…14 feature a solid metal manganese-copper alloy resistive element with low TCR (± 20 ppm/°C) and a welded terminal to element connection that allows for up to 346 A of continuous current. The resistors offer low inductance values of < 5 nH, low thermal EMF down to < 1 µV/°C, and an operating temperature range of -65 °C to +170 °C. The devices are RoHS-compliant, halogen-free, and Vishay Green.

Samples and production quantities of the WSBS5216 and WSBS5216…14 are available now, with a lead time of eight to 10 weeks for larger orders.
