Bourns Releases AEC-Q200 Compliant, Automotive Grade 3 Watt Gate Driver Transformer.

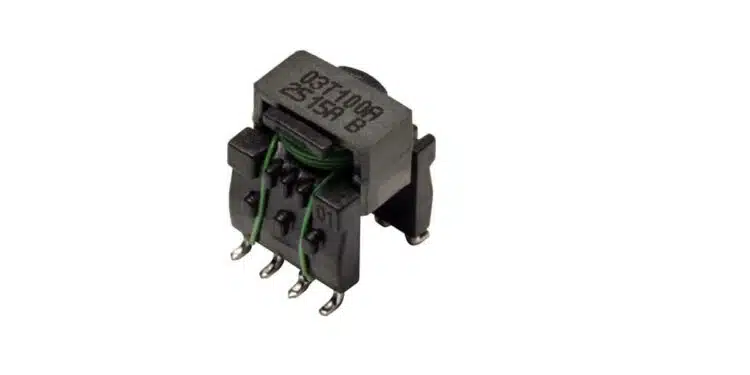

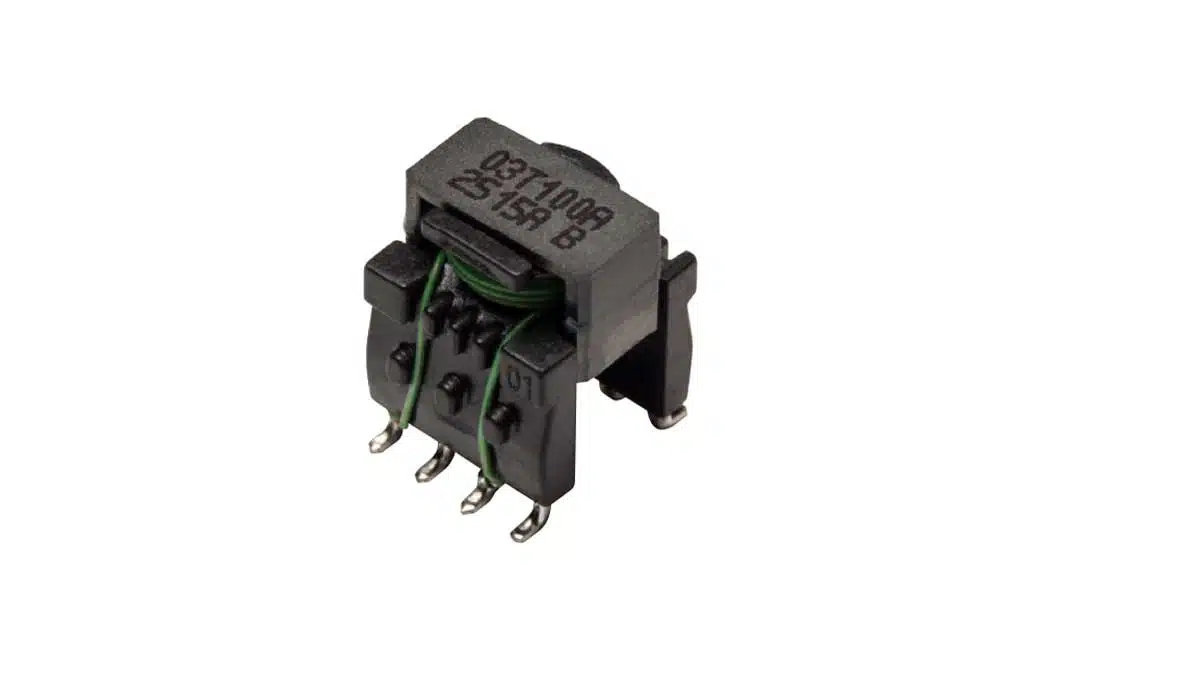

Bourns Custom Magnetics Product Line is proud to announce the launch of its new Automotive Grade Gate Driver Transformer Model HVMA03T100A-ST10S.
This transformer is fully AEC-Q200 compliant and engineered for demanding automotive applications, including electric vehicles (EVs), hybrid systems, and battery management.
Designed with a 10 mm creepage distance and supporting a 1000 V working voltage, the HVMA03T100A-ST10S is ideal for high-isolation environments. It features a compact SMT footprint, optimized for space-constrained designs, and supports a wide operating temperature range from -40 °C to +155 °C, meeting Class F thermal requirements.
Key Features
- 3 watt gate driver transformer
- 300 kHz to 400 kHz switching frequency
- High working voltage: 1000 V
- 10 mm creepage distance (SMT package)
- Basic insulation per IEC 61558-2 & IEC 60664-1
- Operating temperature: -40 °C to +155 °C
- RoHS compliant (Directive 2015/863)
- AEC-Q200 qualified
Applications
- Transistor gate drive power
- Battery management systems
- Inverter circuits
- Motor drives
- Power delivery across isolated systems
Technical Specifications
| Model | Output Power | Primary Inductance @100 kHz / 1V | Creepage Distance | Rated Working Voltage | Operating Temperature |
|---|---|---|---|---|---|
| HVMA03T100A-ST10S | 3 watts | 50 μH min. | 10 mm | 1000 V | -40 °C to +155 °C |
