TDK Inductors: Low-profile power inductors for advanced driver assistance systems

27.3.2018
2 min read
0 0
TDK Inductors: Low-profile power inductors for advanced driver assistance systems
0
SHARES
3
VIEWS

source: TDK news

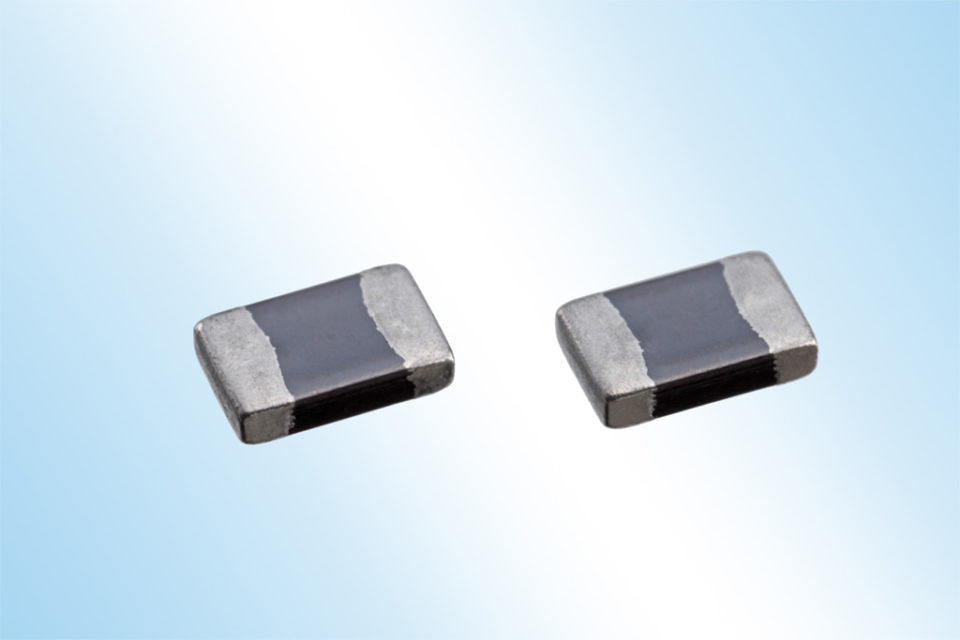

TDK Corporation announces the MLD2012 series of multilayer inductors for automotive power circuits. The new components that are based on a ferrite core are available in a compact IEC 2012 (EIA 0805) package with a footprint of 2.0 mm x 1.25 mm and an insertion height of just 0.5 mm.

The power inductors, which are qualified to AEC-Q200, offer inductance values ranging from 0.47 µH to 47 µH and rated currents from 750 mA to 1200 mA. Thanks to their excellent electrical performance and broad operating temperature range of -40 °C to +125 °C, the low-profile components are suitable for automotive applications, especially in advanced driver assistance systems (ADAS), where they help enable even smaller cameras, for example. The MLD2012 inductors are also suitable for in-vehicle infotainment (IVI) and telematics systems as well as in the various automotive ECUs and modules. Mass production of the MLD2012 started in March 2018.

Like the existing MLD2016 series of power inductors, the new MLD2012 series features a multilayer structure in order to achieve low leakage flux, thus expanding TDK’s lineup of ferrite core power inductors for an increasing range of automotive applications.

Main applications

  • Advanced driver assistance systems (ADAS)In-
  • vehicle infotainment (IVI) and telematics
  • Various ECUs and modules

Main features and benefits

  • Low-profile IEC 2012 package with an insertion height of just 0.5 mm
  • Low leakage flux
  • Broad operating temperature range from -40 °C to +125 °C
  • Qualified to AEC-Q200

Key data

Type Dimensions
[mm]
Inductance
[μH] (±20%)
DC resistance
[Ω] (±30%)
Rated current
[mA]*
MLD2012SR47T 2.0 x 1.25 x 0.5 0.47 0.12 1200
MLD2016S1R0M 2.0 x 1.6 x 0.85 1.0 0.12 1100
MLD2016S1R5M 1.5 0.15 1000
MLD2016S2R2M 2.2 0.17 900
MLD2016S3R3M 3.3 0.23 800
MLD2016S4R7M 4.7 0.25 750

*Based on a temperature increase of 40 K by self-heating

Previous Post

KEMET Comments on European Commission Announcement of TOKIN Corporation Fine

Next Post

MLCC prices to rise 40-50% in 2Q18
